YX980D
Healicom
Product Description

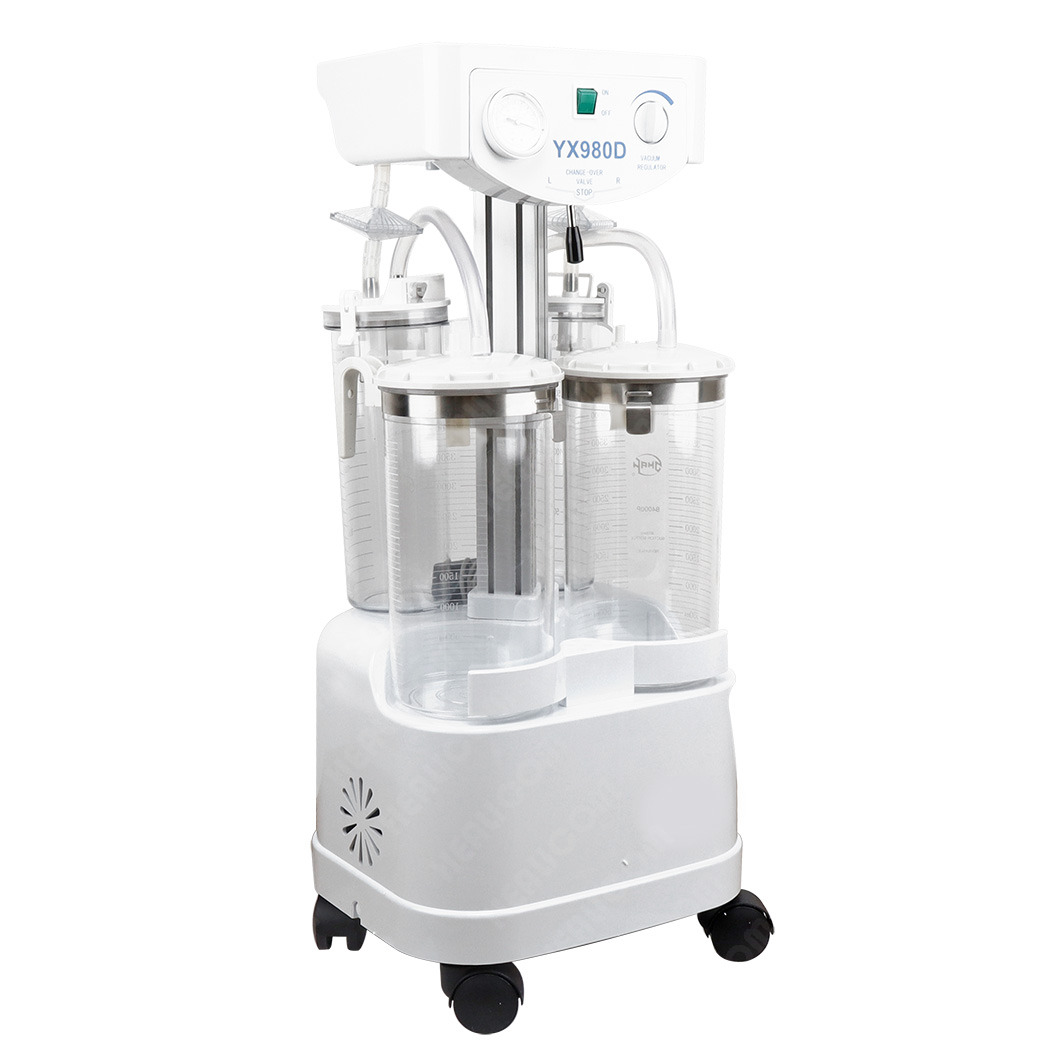

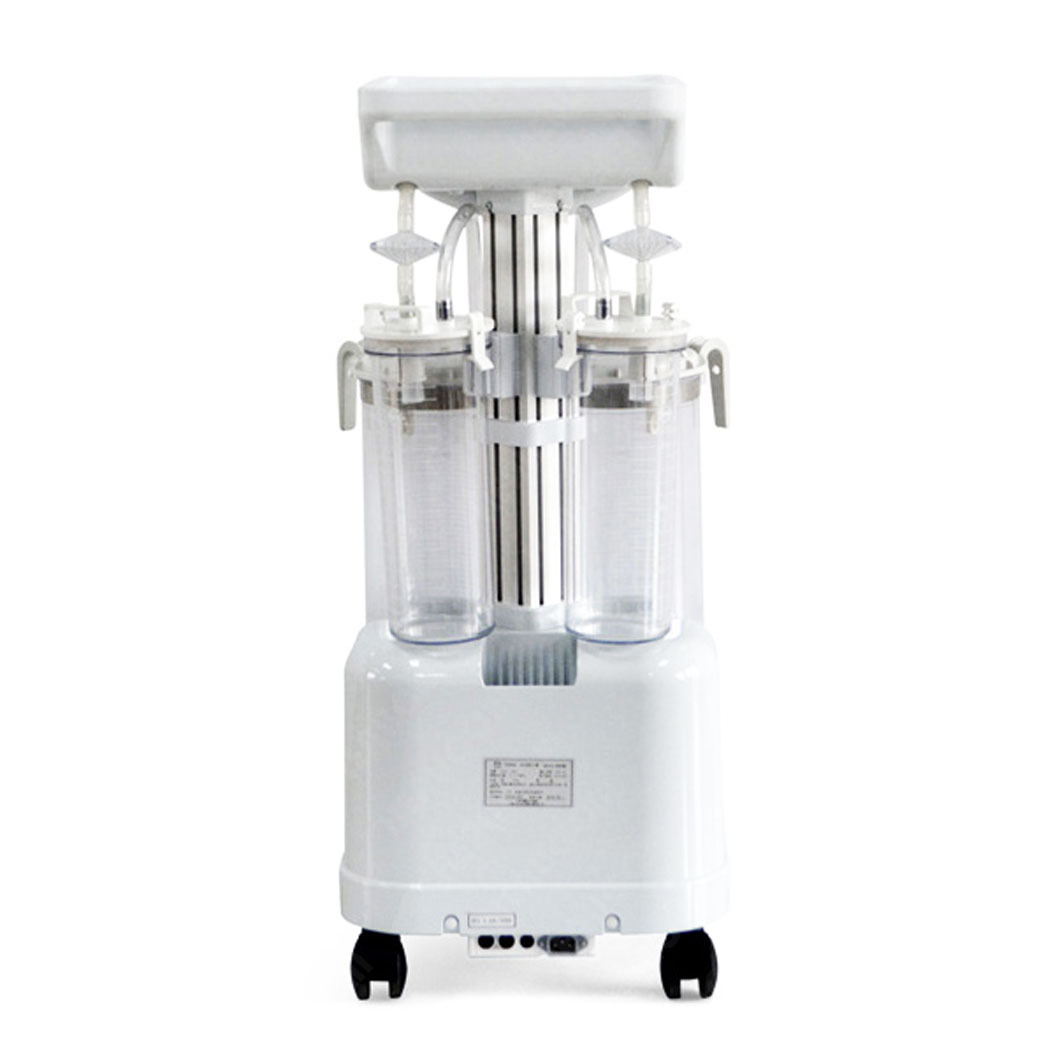

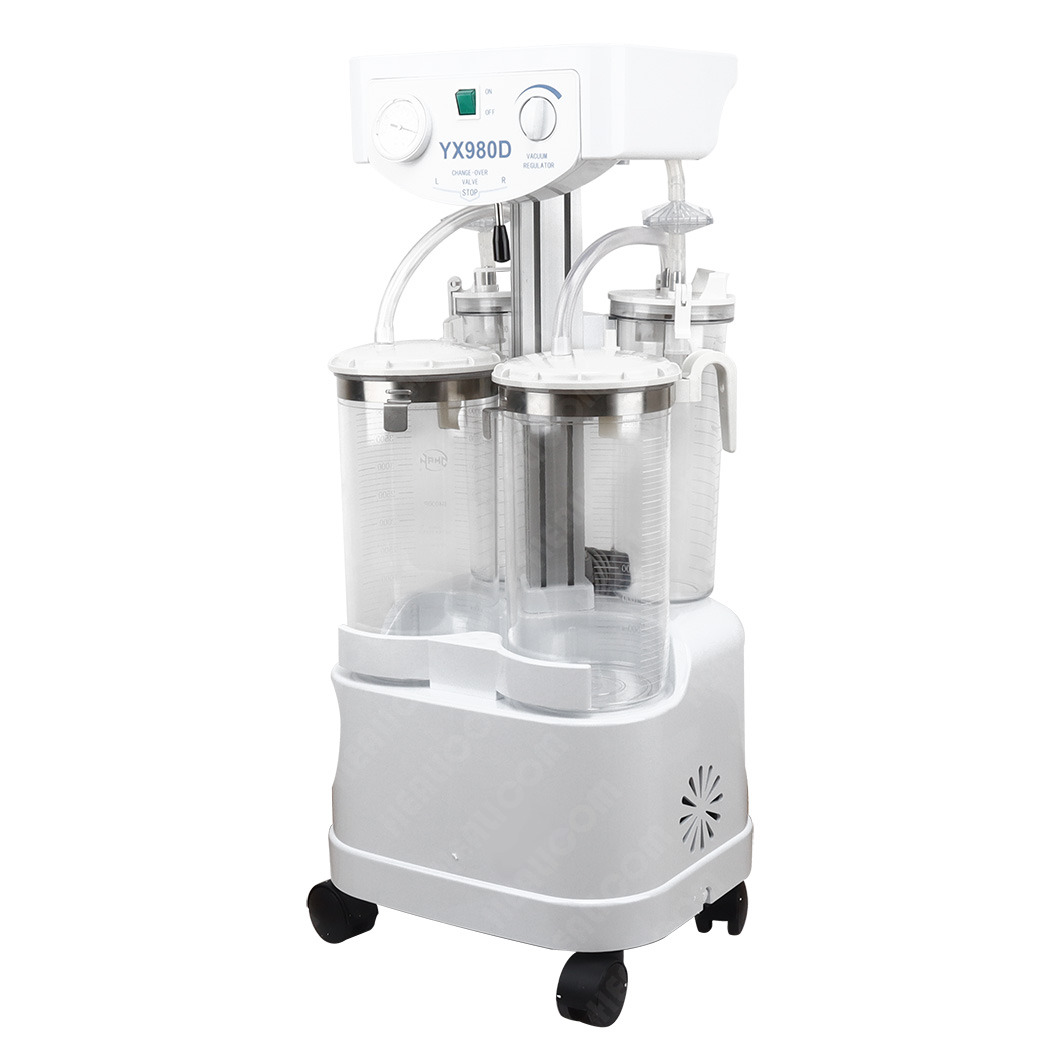

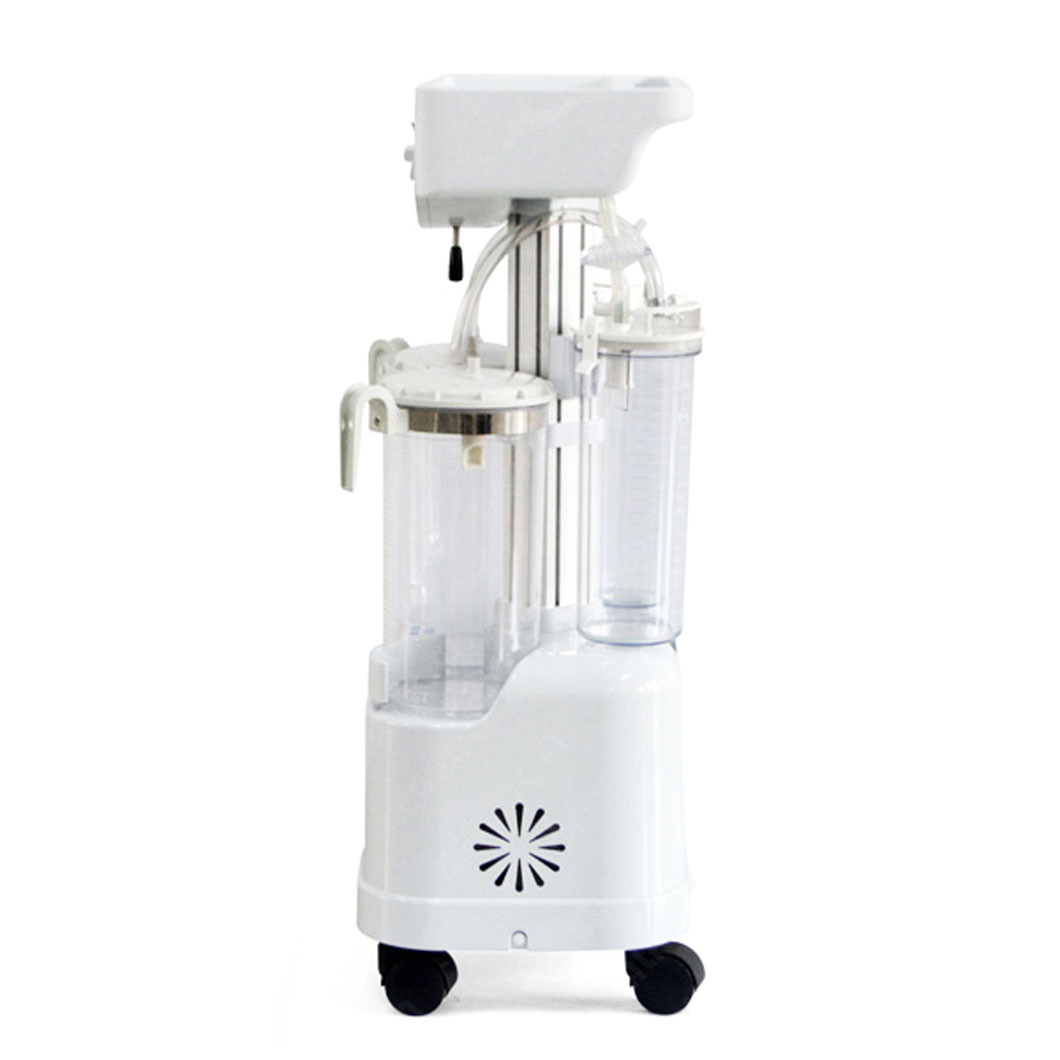

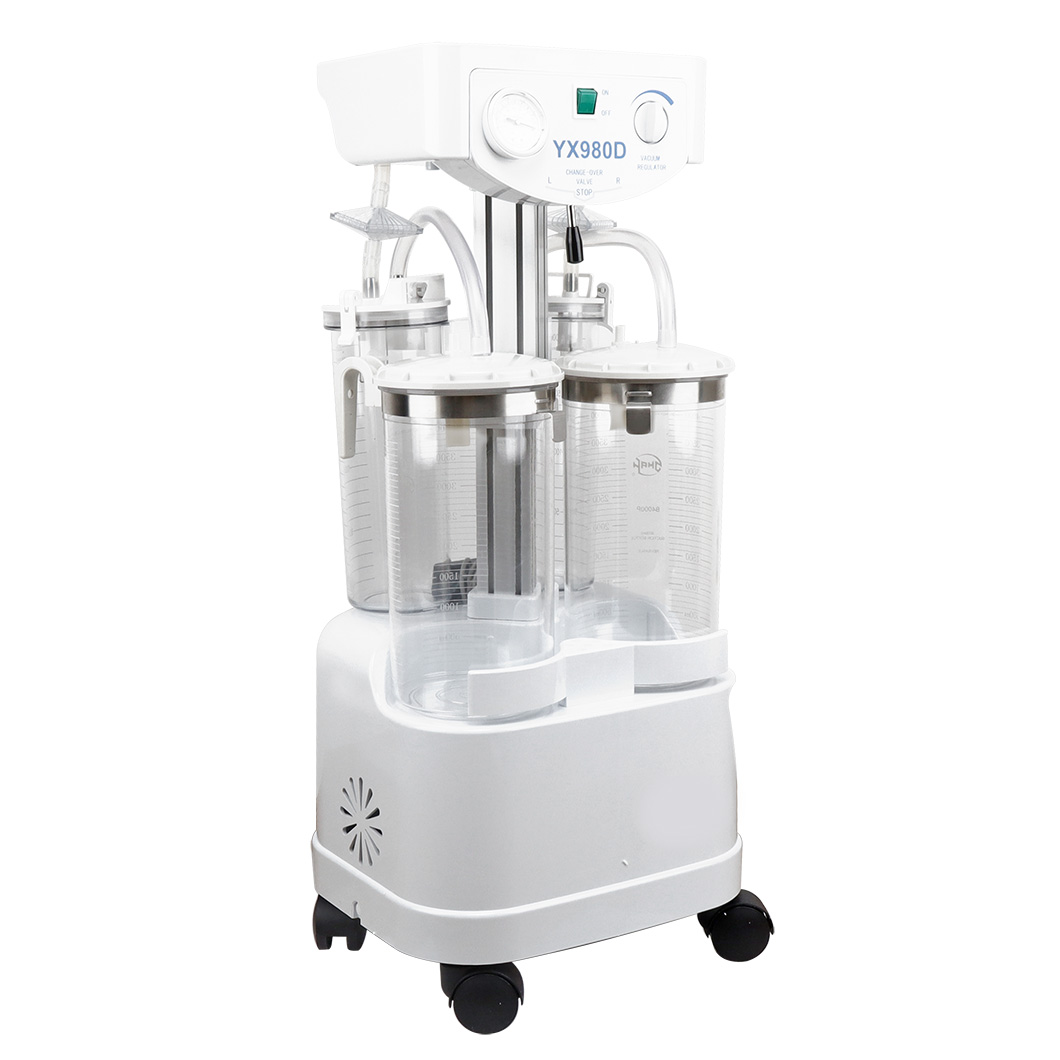

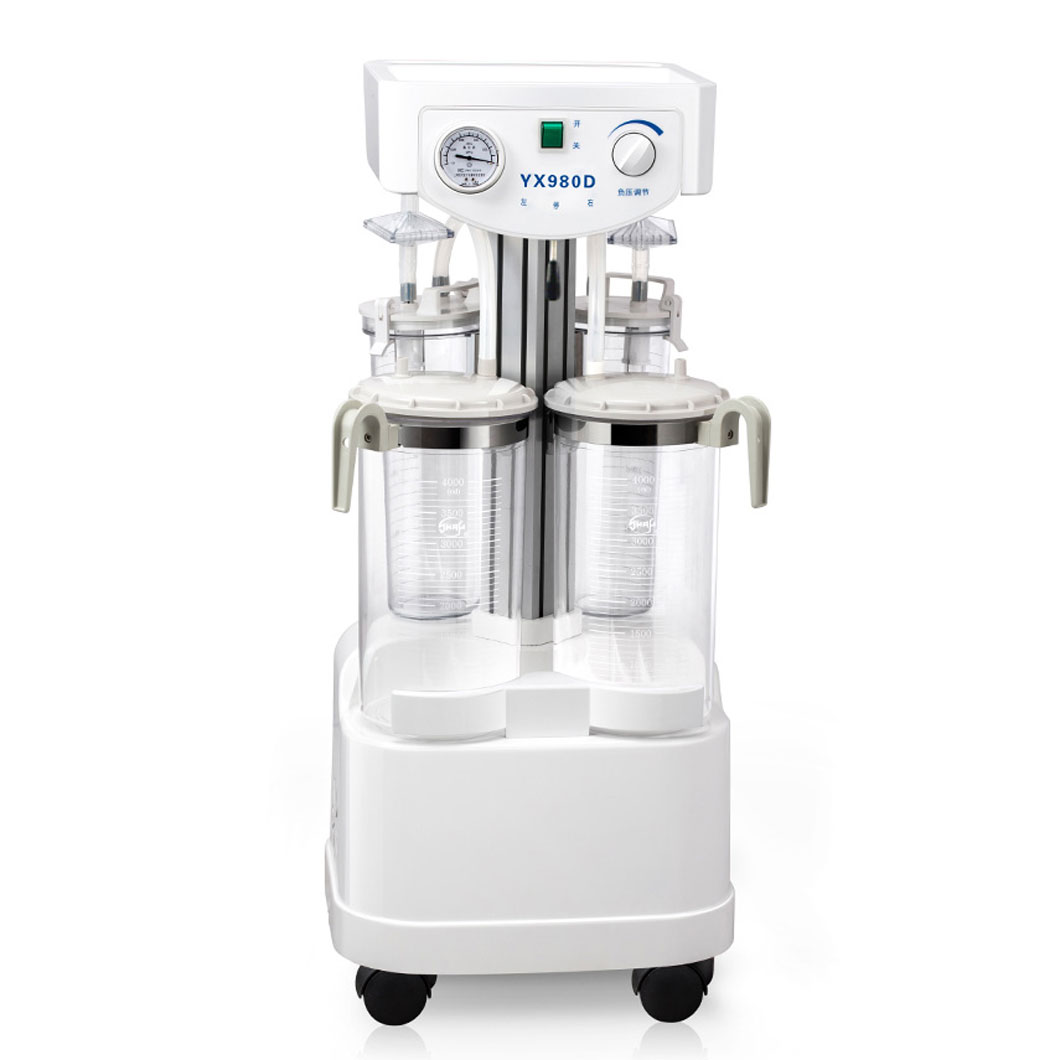

YX980D Medical Mobile Aspirator Apparatus Vacuum Electric Suction Machin
Model YX980D Electric Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum, and is especially used for surgical operations where large quantities of fluid must be suctioned out quickly. Advanced design idea as well as a perfect configuration performs satisfactory functions.
Features:
1. Providing extremely high flow and efficient vacuum generation - the required vacuum is available within seconds; oil-less vacuum source and maintenance -free.

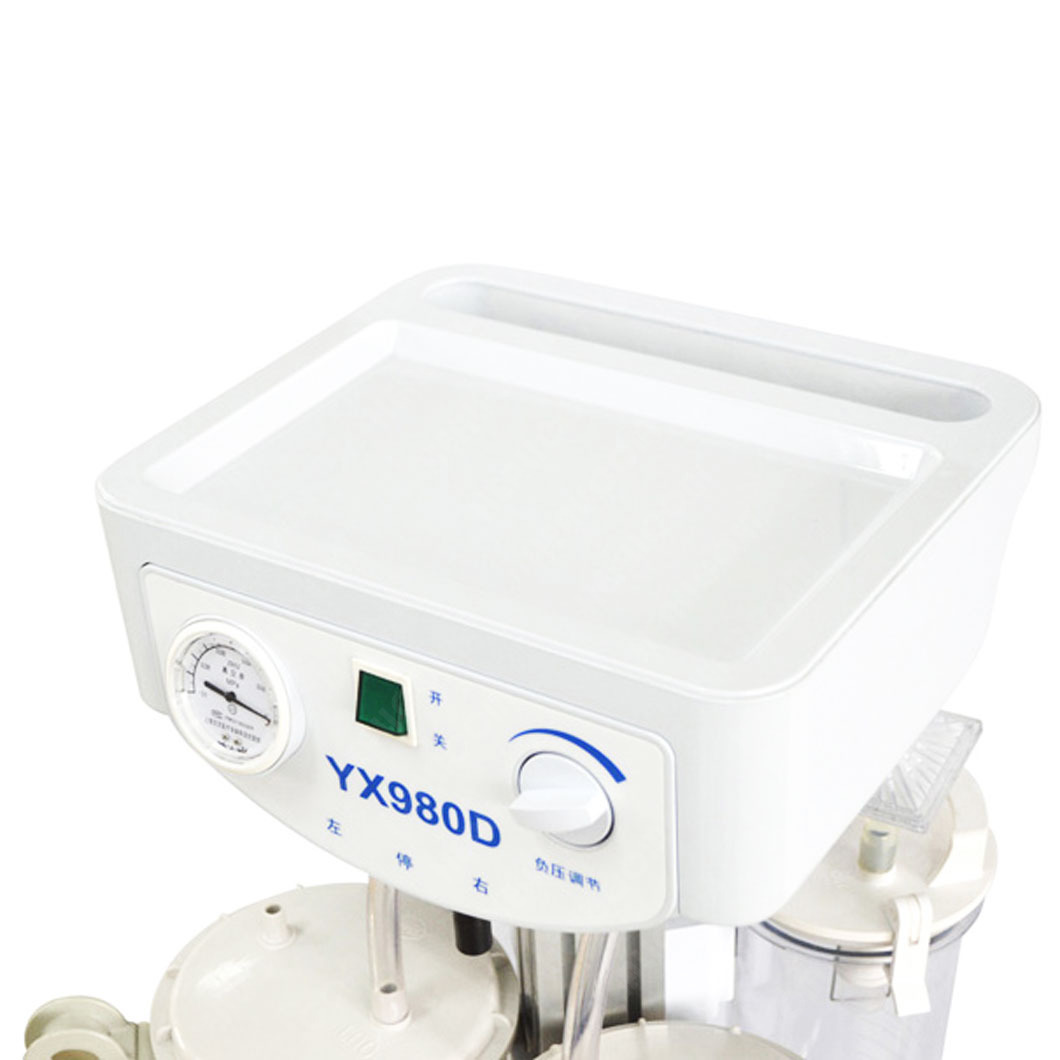

2. The level of vacuum required is controlled by the vacuum regulator and showed on the vacuum meter.
3. The overflow protection device prevents liquid or solid particles from entering the intermediate tubing and pump; the bacterial filter for single use can eliminate airborne contamination.

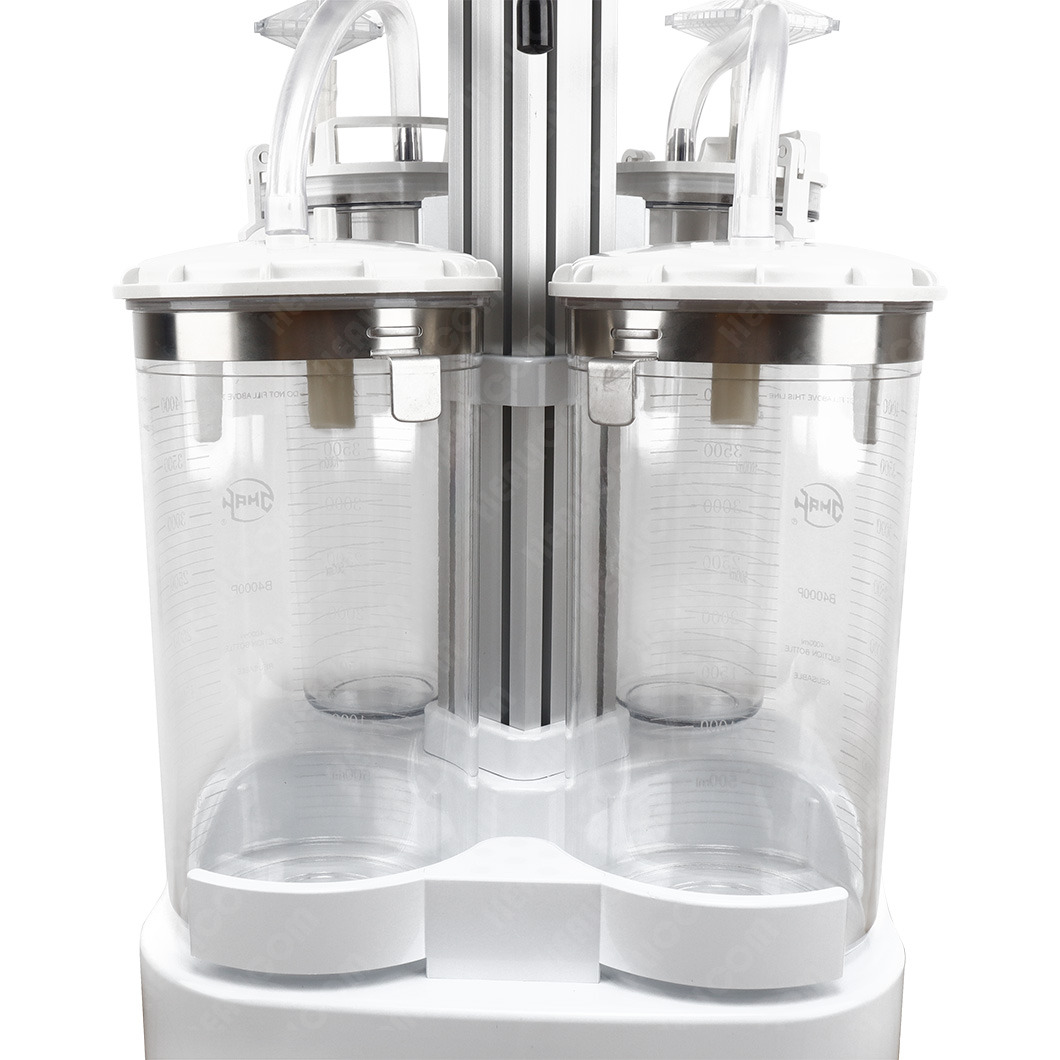

4. Two transparent unbreakable jars graduated 4000 ml made of polycarbonate (PC) can be autoclavable.
5. Change-over valve offers for manual selecting collection jar rapidly; the rinsing-cup is used for placing catheter before or after operation.
6. The comfortable handle made of stainless make it easy to move about; the accessory-box back of the case is ready for laying foot-switch and power cord during movement or storage.
Technical Data
| Max vacuum | ≥0.09MPa (680mmHg) |
| Adjustable vacuum range | 0.02MPa~0.09MPa |
| Flow rate | ≥80L/min |
| Noise | ≤60dB(A) |
| Jar | 4000mL×2 |
| Power supply | AC220 50Hz |
| Input power | 280VA |
| Dim | 49cm ×39cm×94cm |
| G.W./N.W. | 27/24kg |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
