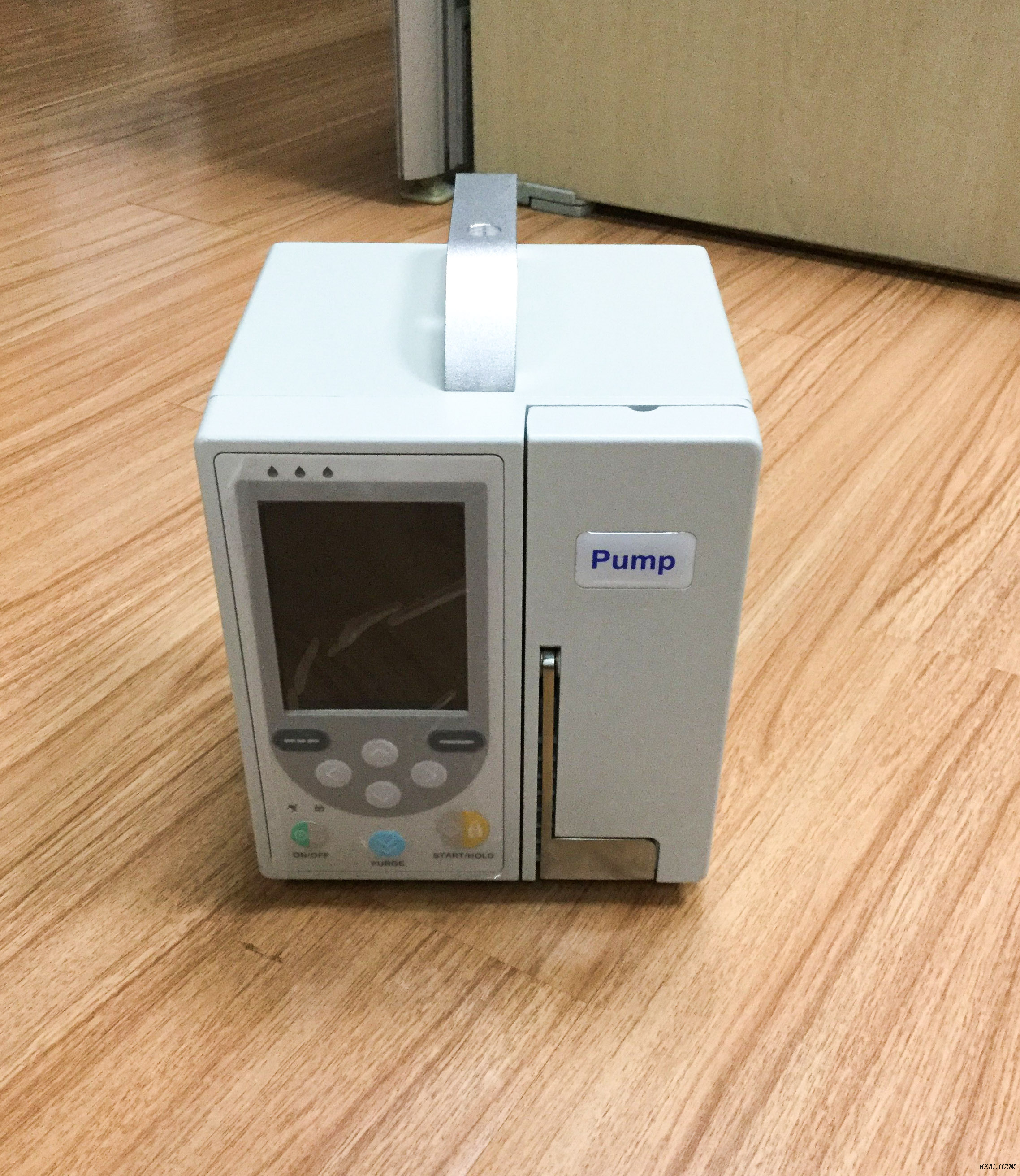

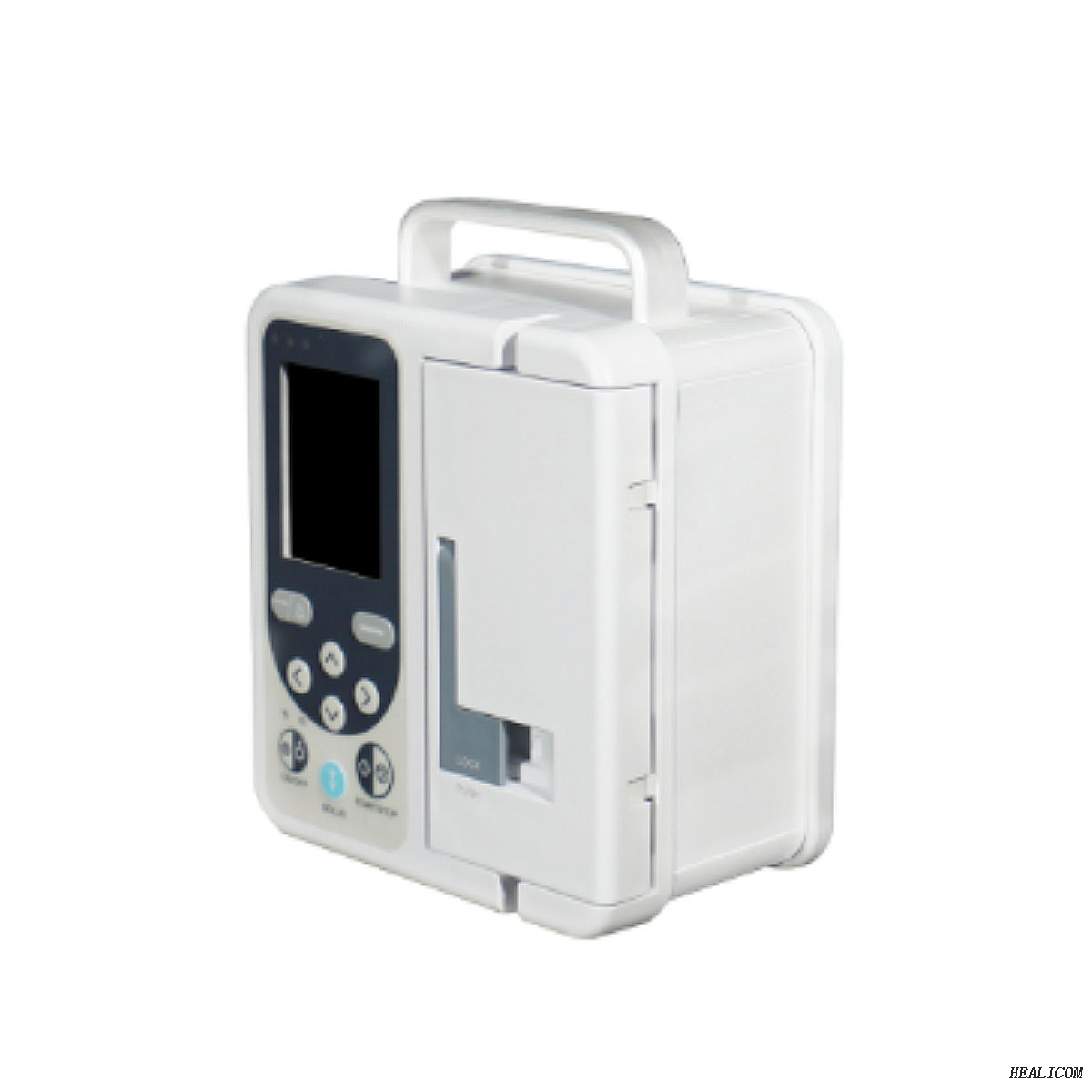

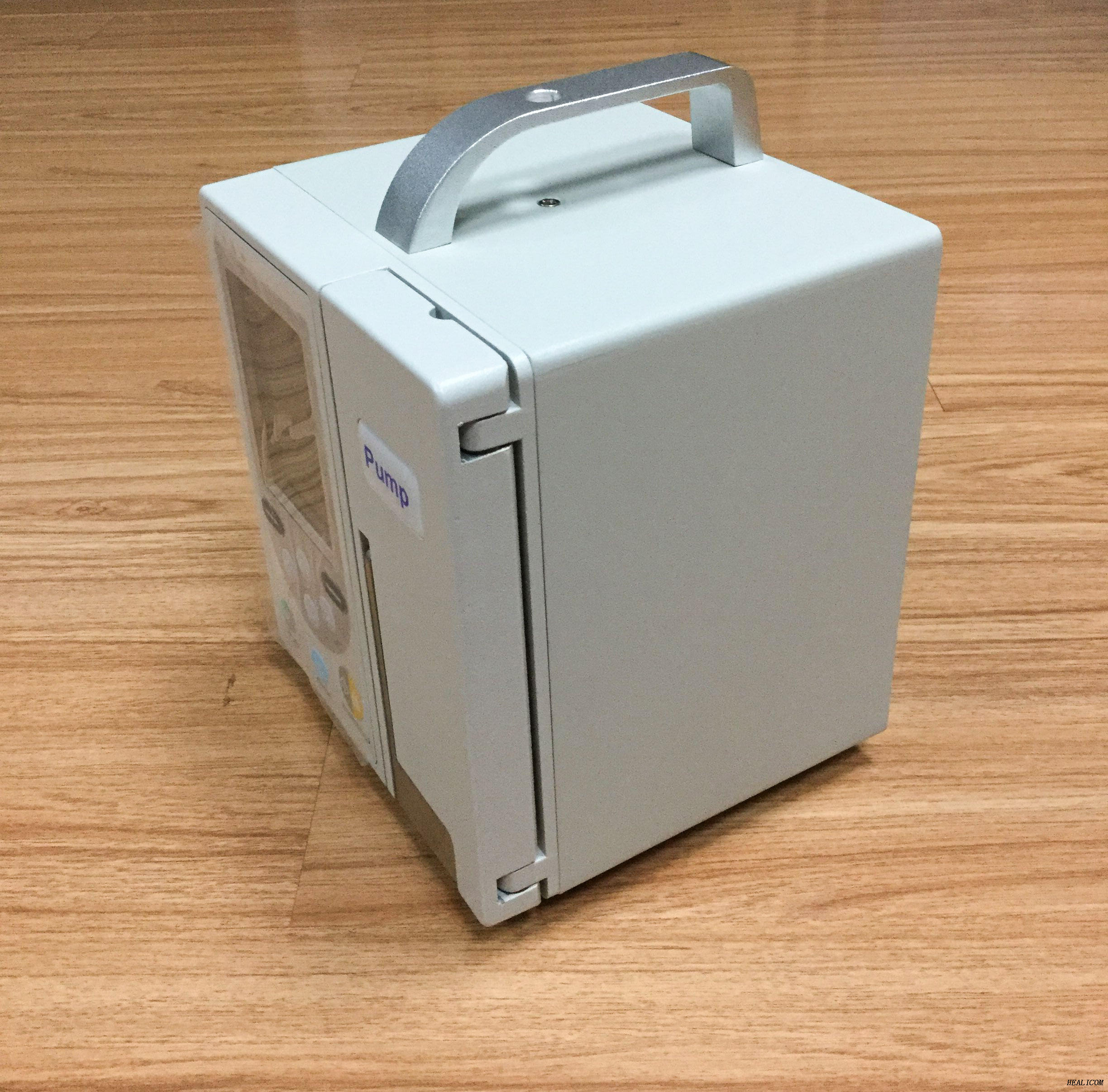

1 IntroductionThe product is a volumetric infusion pump, features in high safety, easy operation and long life. Flow control with high accuracy and comprehensive alarm measures ensure patient's safety and optimum therapeutic effect.
2 Function1) Flow control with high accuracy ensures optimum therapeutic effect. 2) Be compatible with most standard IV Sets. 3) New IV set provided by user can be calibrated by suppliers, and infusion parameters can be input into the pump, which ensures accuracy. 4) 2.8'' TFT-LCD. 5) Operate with keys. 6) Residual infusion time can be displayed during infusing. 7) With reminder function for starting infusion. 8) Alarm for occlusion, air bubble, door open and motor failure, etc. 9) Threshold for pressure alarm can be adjusted by medical personnel. 10) Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally. 11) A.B.S——ANTI BOLUS system prevents instantaneous high-dose injection from the sudden obstruction disappearing. 12) Stop infusing automatically during alarm(except for "NEAR END", "KVO", and "LOW BATTERY" alarms). 13) Power supply: AC/DC and built-in lithium battery. 14) Infusion pump can be mounted on infusion pole in many directions by the versatile bracket. 15) Infusion parameters can be saved after power off.
Special safety measures:

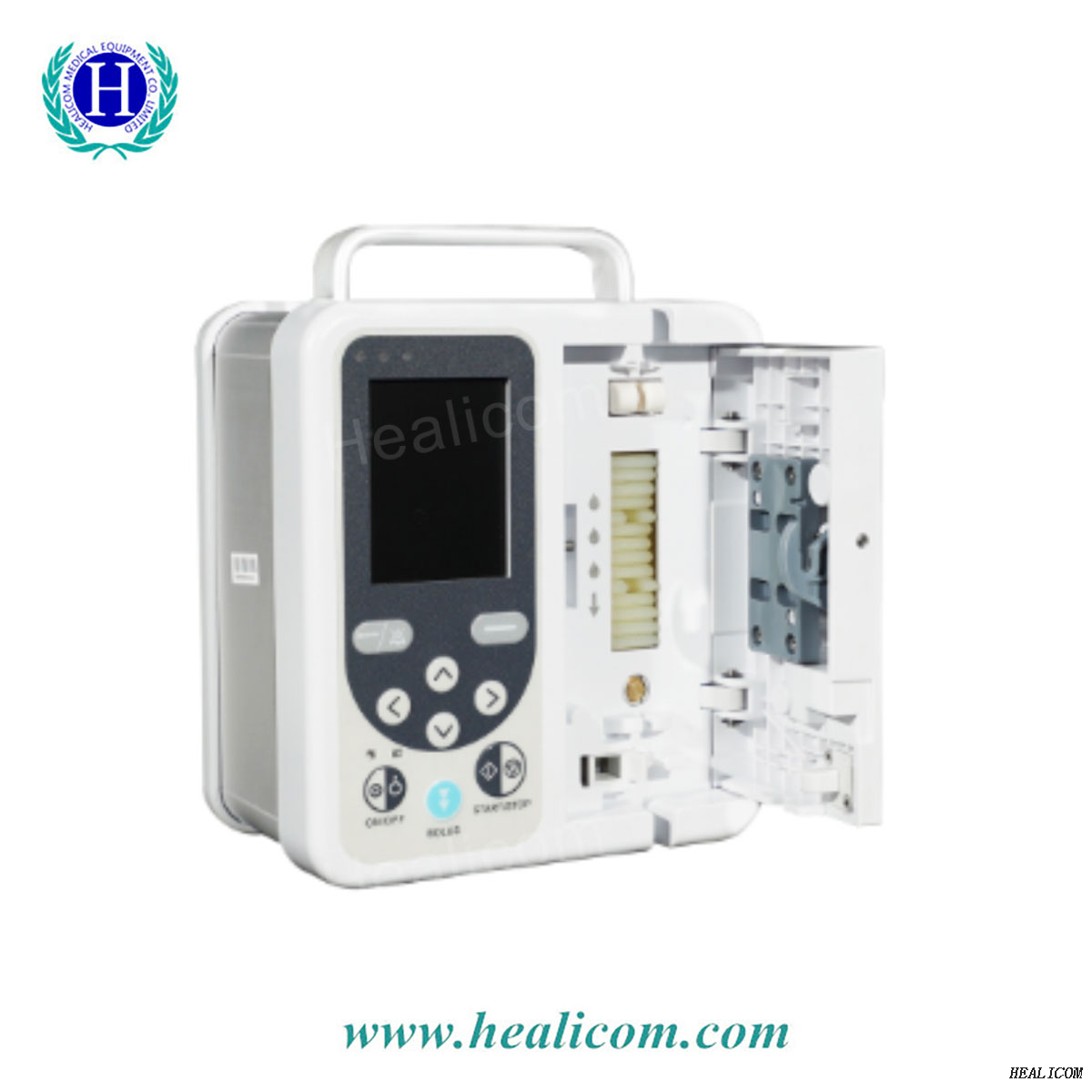

Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally. Air bubble detector with high accuracy prevents air bubbles from entering patient’s body. Pressure sensor prevents occlusion for IV set. A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the IV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing. Infusion parameters during infusing are protected against being changed arbitrarily. With password protection function(in system parameter setting and IV set type interface).
4 Accessories A power cord A user Manual 5 Physical characteristic 6 Optional configuration None
volumetric infusion pump
1~699mL/h, increment: 1mL/h
1~9999mL, increment: 1mL
±5%(use the IV set calibrated)
flow rate, total volume, accumulated infusion volume, residual time
class I,type BF applied part
near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion,infusion reminder and motor failure.
Air bubble detector

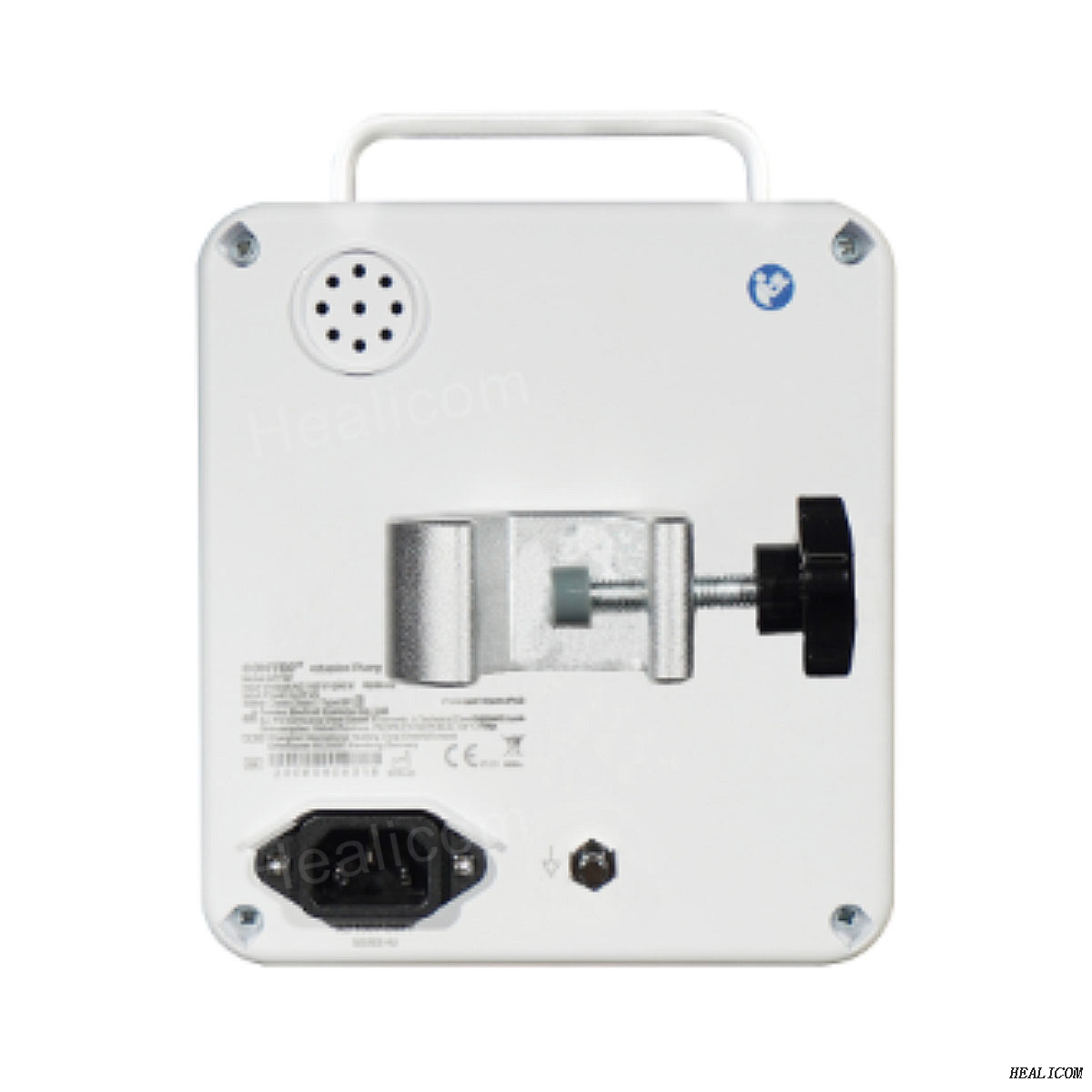

1mL/h(can not be adjusted)
Sensitivity for pressure sensor
1~3 grades(it can be adjusted by professional medical personnel)
1.What is time of delivery?Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 2.What about quality assurance?We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer. 3.What about the price level?We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper . 5.What is payment terms?T/T in advance, L/C, Western Union, PayPal, MoneyGram. 6.Which shipping company usually using?MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
