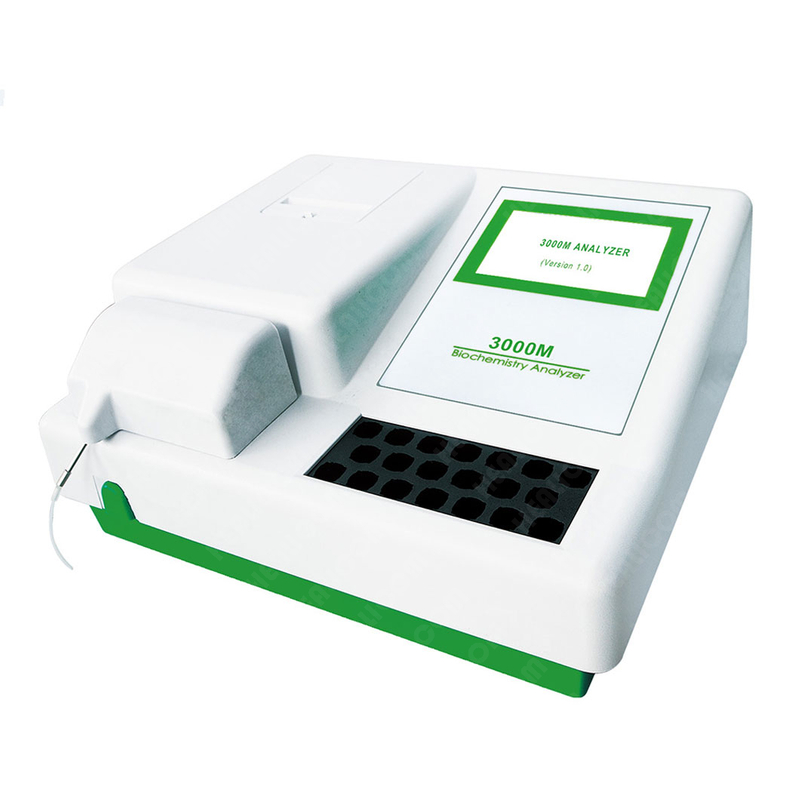

SCA3000M
Healicom
Product Description
Product Description
Technical specifications | |
Reading Cuvette | Both flow through cell and direct reading cuvette |
Aspiration Volume | 200ul~800ul |
Incubator | 20 incubating positions |
Photometric System | Light Source: 6V/10W halogen lamp |
Wavelength: 340/405/492/510/546/578/620nm, 2 more filter on request | |
Wavelength Accuracy: ±2nm | |
Thermostatic Control | Temperature: 25℃, 30℃,37℃ |
Precision: ±0.1℃ | |
Measuring System | Method: End point, Fixed time, Multistandard, Differential, Bichromatic and Immunoturbidimetric, etc |
Mearsuring Range: 0~3.000 O.D | |
Photometric Linearity: ±2%( 0~3.000 O.D) | |
Photometric Accuracy: ±1%( 0~3.000 O.D) | |
Carry-over:≤1% | |
Drift | < 0.005 O.D/hr |
Test Menu | T.BILI r-GT/GGT CHO Ca APOB-1/B CHE TP CK |
D.BILI ALP/AKP TG CL APOB CREA UREA P | |
CK-MB Mg ALB CREA LDH C ASO AFU HS-CRP | |
Lactic Acid UA a-HBDH CO2 FMN LP(a) AST/GOT PA | |
ALT/GPT GLU AMY LDL-C HDL-C LA TBA ADA | |
Fe Cu Zn C3 C4 lgG lgM lgA and drug, toxicity, etc | |
Quality Control | Excellent Q.C. function, Q.C chart may be displayed and printed |
Display | Back-illuminated LCD, color touch screen |
Storage | Over 200 programs, 1000 test results |
Software | For computer communication on request |

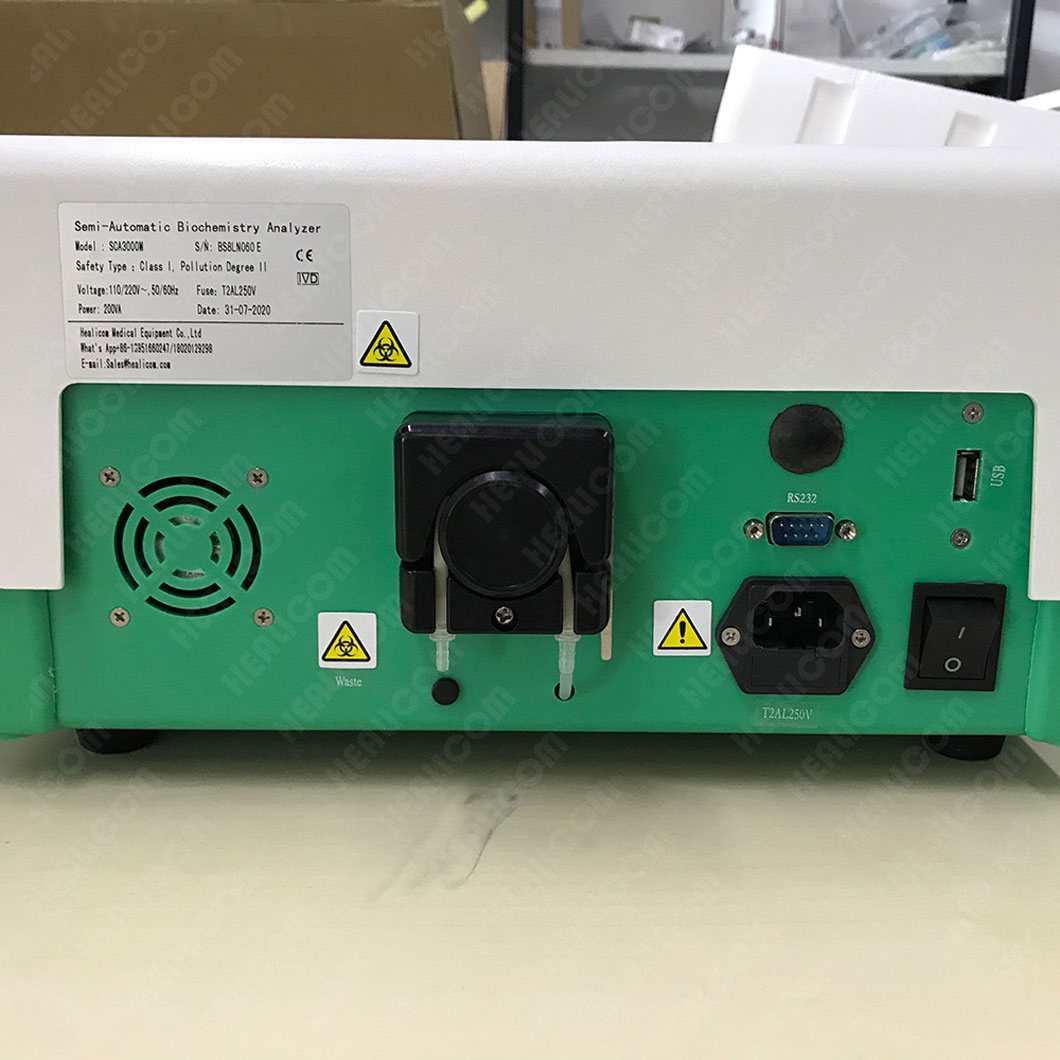

Interface | RS-232 serial port for additional PC |
Power Supply | AC110V/60Hz or 220V/50Hz |
Dimensions | 34cm*38cm*18cm |
Weight | 8.0Kg |
