RS01 Patient Monitor COPD,Sleep Apnea Screen Meter,Respiratory Sleep Detector with PC Software


PDF Export

  • RS01

Product Description

Products Description

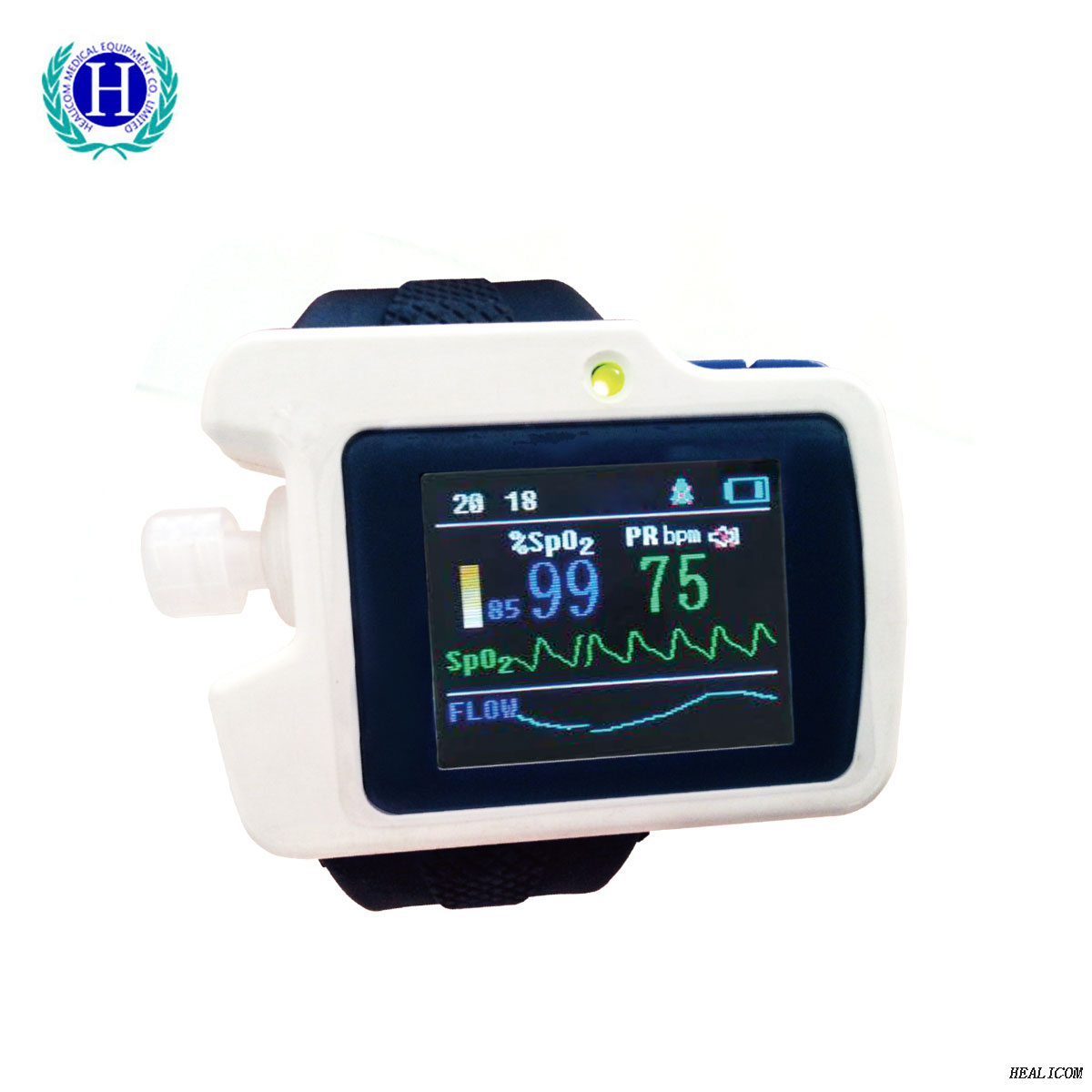

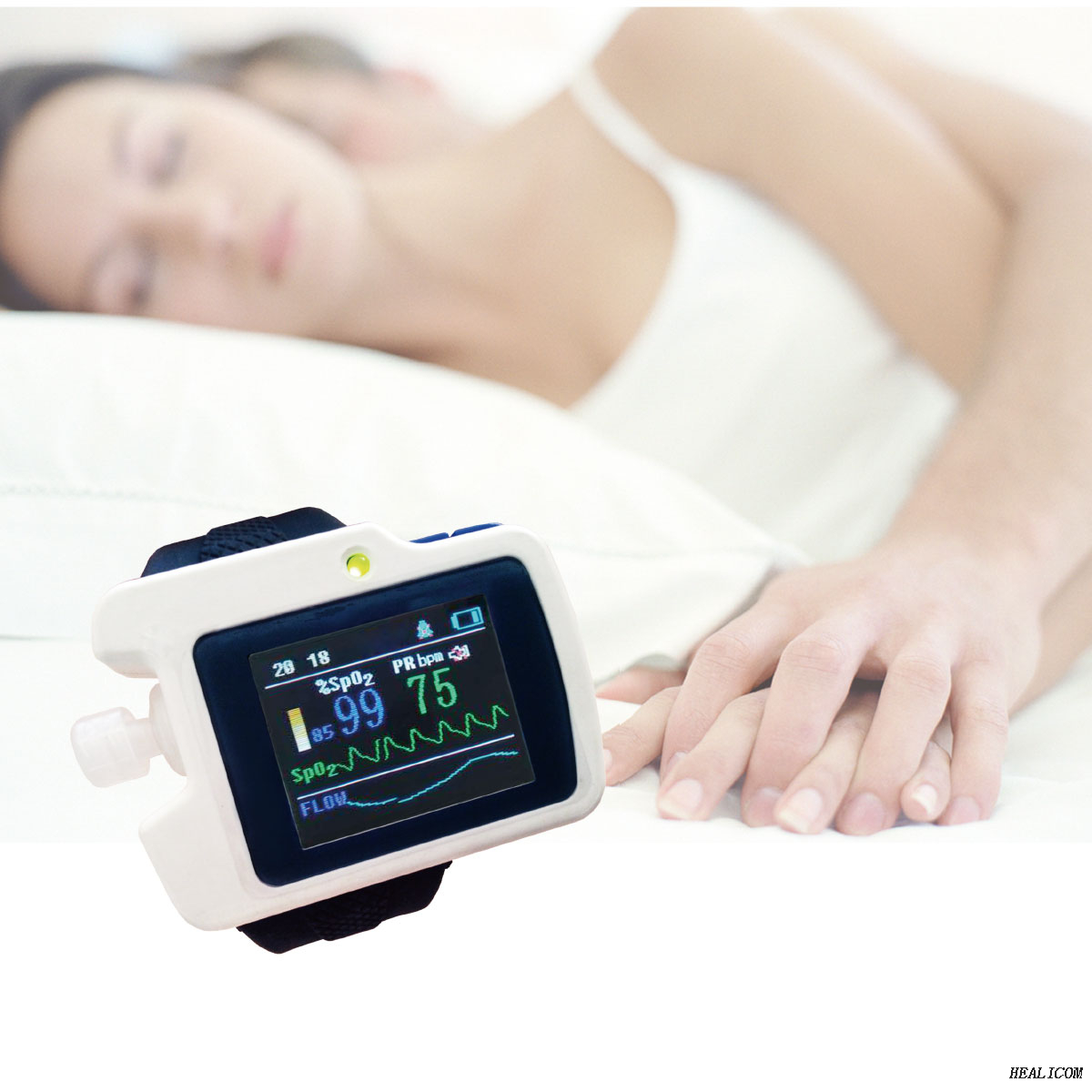

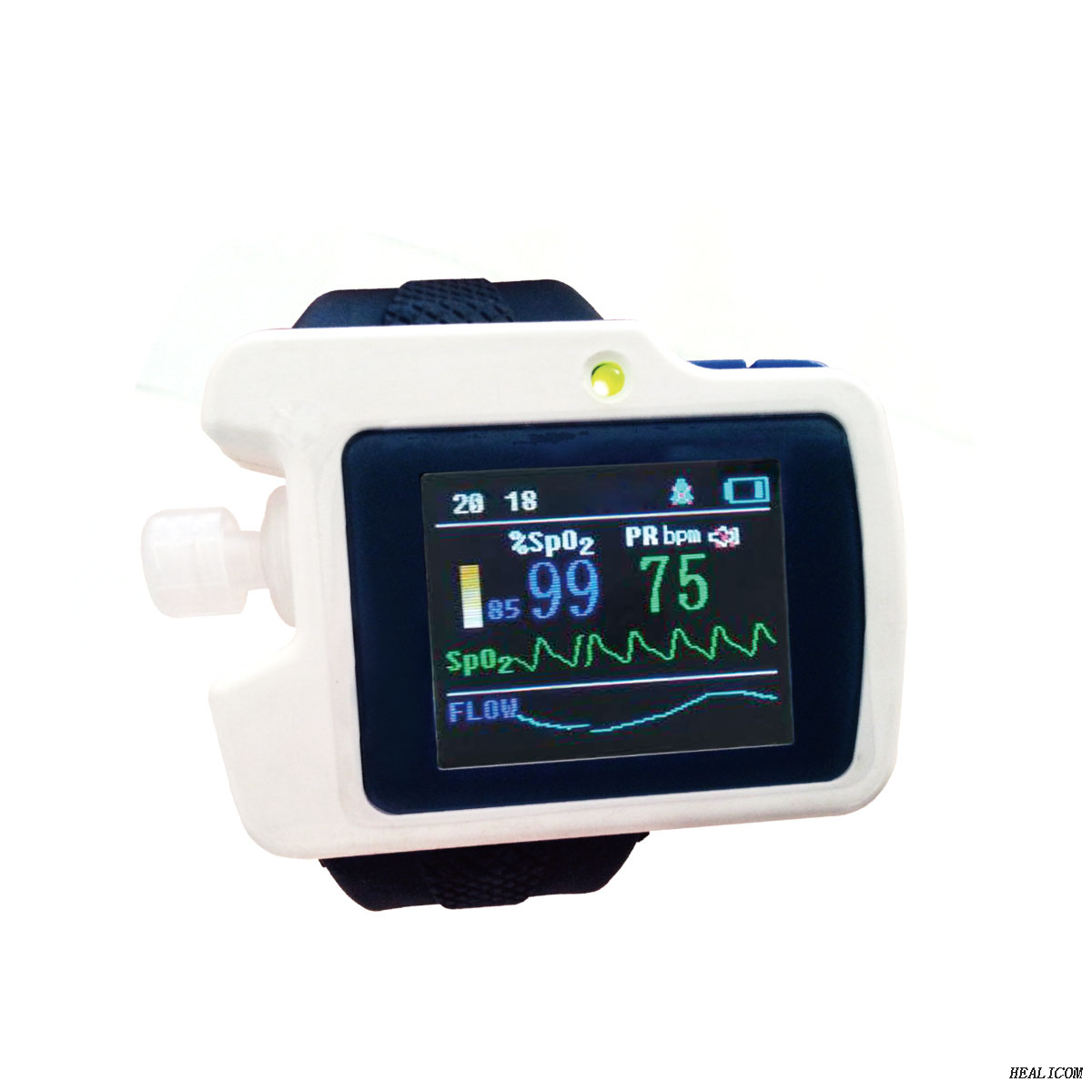

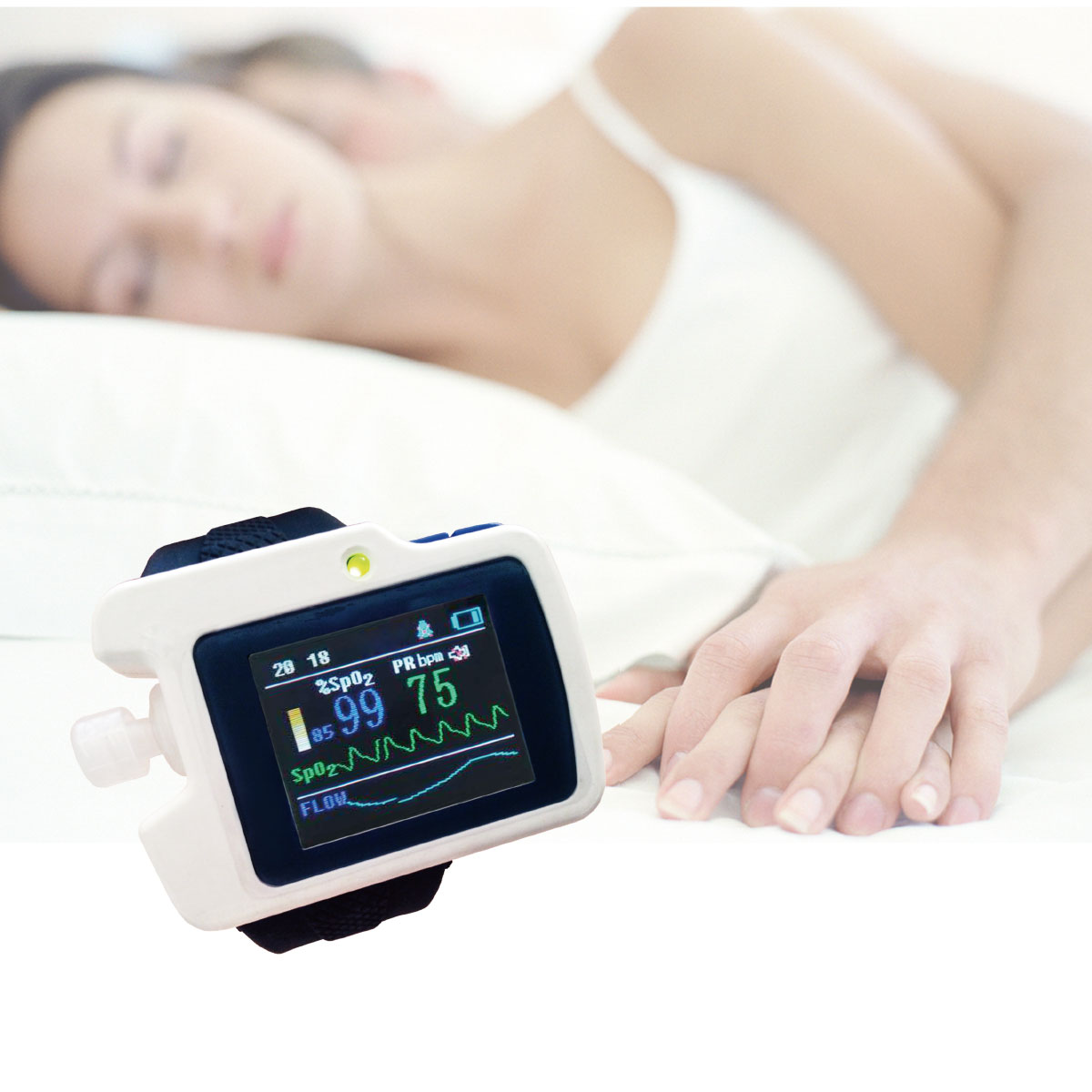

The RSOl device is suitable for the one who suffrs with such diseases as SAHS (sleep opnea-hypopnea syndromel lts functions including patient'’s sleepapnea monitoring and Spo, monitoring, which can be applied in hospital or at home.



(1) Spo2, and PR value display, pulse sound and bar graph indication.

(2) Pulse waveform and nose flow waveform display

(3) Alarms for low power, finger out and exceeding limits

(4) Battery status indication

(5) Real-time clock

(6) Schedule power on

(7) Storage of multiple cases

(8) Continuous 12 hours data record

(9) Uploading data via uSB port

(10) PC analysis software


Product Paramenters


Nose air flow measurement range

0 rpm~40 rpm, accuracy: ± 2 rpm

SpO2 measurement range


0%~100%(resolution 1%)


70%~100%± 2; less than 70%, unspecified

PR measurement range


30 bpm~250 bpm, accuracy: ± 2 or ±2%(whicheveris greater)

Resistance to surrounding light

The deviation between the value measured inthe condition of man-made light or indoor natural light and that of darkroom isless than ±1%.

Power consumption

 ≤100 mA

Power supply

3.7 v rechargeable lithium battery

Physical characteristic


69 mm (L) x 50mm (W) x 17.3 mm(H)


about 100g

Working environment


10 ℃ ~ 40 ℃

Relative humidity

≤75 %

Atmospheric pressure

700 hPa ~ 1060 hPa

Storage environment


-40 ℃ ~+55 ℃

Relative humidity

≤95 %

Atmospheric pressure

500 hPa ~ 1060 hPa


A power adapter

A USB data line

A Nasal cannula

Two kinds of SpO, probes

A CD (PC software)

A User Manual

Detail Images



1.What is time of delivery?

Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

 2.What about quality assurance?

We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.

3.What about the price level?

We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

 4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?

As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .

 5.What is payment terms?

T/T in advance, L/C, Western Union, PayPal, MoneyGram.

 6.Which shipping company usually using?

MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
