HSP-9A
Healicom
Product Description

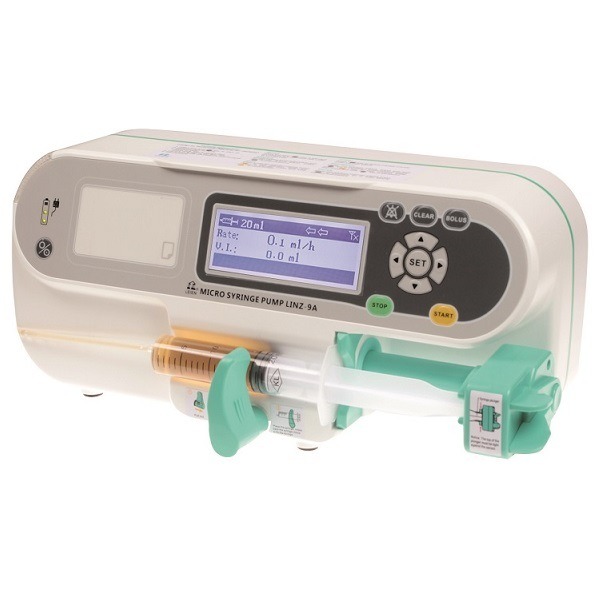

Medical Hospital Single-Channel Automatic Infusion Syringe Pump Electric Injection Pump
Function:
1. Keep-Vein-Open (KVO): After finishing predetermined infusion volume, to prevent the formation of thrombus, continue infusion with preset minimum rate 0.1-5ml/h (setted).
2. Power Supply Switching Function: When the AC power supply is off, it will automatically switch to internal battery power supply and prompt at the same time. When AC is switched on, it is automatically converted back to AC supply.
3. Repeat Alarm Function: After the operator presses the "" key, if the reason causing the alarm has be untreated for about 2 minutes, the alarm will sound again to alert the operator to solve the problem.
4. Data Memory Function: Save the last setting of sound volume level, brand and occlusion pressure level, to prepare for the next use. The longest memory time is 5 years.
5. Battery Protection Alarm: In order to protect the battery and ensure infusion safety, there are different levels of acousto-optic prompts when the electric quantity of the battery is changing from close to depletion to almost depleted.
6. Move: When user tries to remove or take away the syringe, give move alarm.
7. High Flow Safety Confirm: In order to ensure infusion safety, when the flow rate is greater than 300ml/h (or equivalent), the device will prompt user to confirm again, and will not carry out infusion before confirmation.
Parameter:
| Item Model | HSP-9A: | HSP-9B | HSP-9C |
| Dimensions(mm) | 306(L)×126(W)×141(H) | 354(L)×132(W)×199(H) | 354(L)×132(W)×268(H) |
| Weight | 1.8kg | 2.8kg | 3.7kg |
| Battery Continuous Use Time | About 8 hours (fully charged new battery running with rate 5ml/h) | About 4 hours (fully charged new battery running with rate 5ml/h) | About 2 hours (fully charged new battery running with rate 5ml/h) |
| Rated Consumption | ≤20 VA | ≤25 VA | ≤35 VA |
Specification:
| Power Supply | AC 100V~AC 242V,50/60HZ |
| Built-in Batteries | DC 12V 1800mAh, Ni-MH, rechargeable |
| Syringe Size | 5/6ml, 10/12ml, 20/25ml, 30/35ml,50/60ml |
| Flow Selection | 0.1ml/h~1600ml/h, original value is 0.1ml/h |
| Bolus Rate | Syringe 50ml: 1600ml/h Syringe 30ml: 900 ml/h Syringe 20ml: 600 ml/h Syringe 10ml: 400 ml/h Syringe 5ml: 200ml/h |
| Infusion Range | 0.1ml~9999.9ml, original value is 0.1ml |
| Flow Rate Precision | ±3% |
| KVO | 0.1~5ml/h |
| Occlusion Pressure | High: 110kPa±20kPa(825mmHg±150 mmHg) Middle: 80kPa±30kPa(600mmHg±225mmHg) Low: 60kPa±20kPa(450mmHg±150 mmHg) The biggest output pressure: < 975mmHg(130kPa) |
| Use Environment | Temperature: 5ºC~43ºC Relative Humidity: ≤90%RH (Under without condensation status) Atmospheric Pressure: 860hPa~1060hPa |
| Storage Environment | Temperature: -20ºC~+55ºC Relative Humidity: ≤90%RH (Under without condensation status) Atmospheric Pressure: 860hPa~1060hPa |
| Waterproof Level | IPX4 |
| Electric Shock Protection | Class I, Type CF |
| Alarm | occlusion, nearly finish, finish, standby (no operation), low battery, battery exhausted etc |
| Function | power indicator, transfusion amount display, flow rate display, infused volume display etc. |
