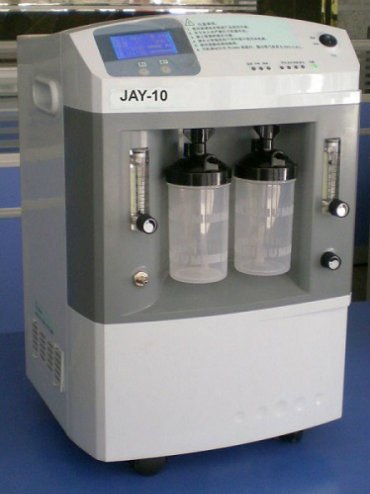

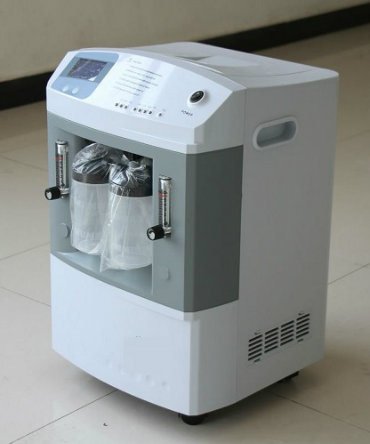

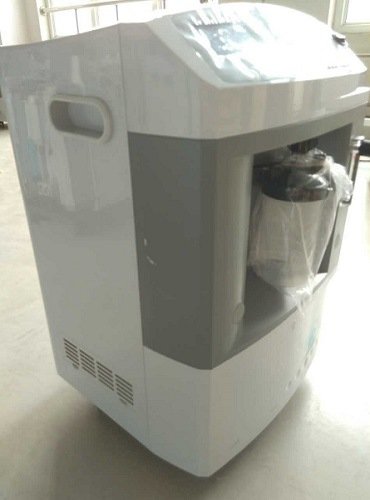

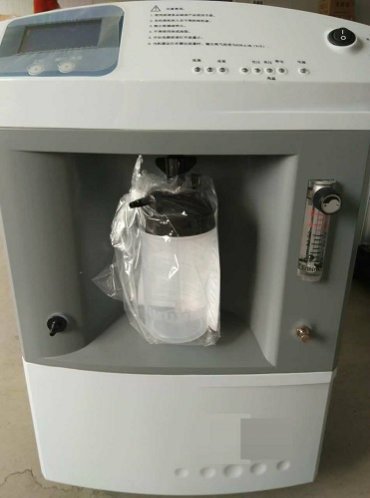

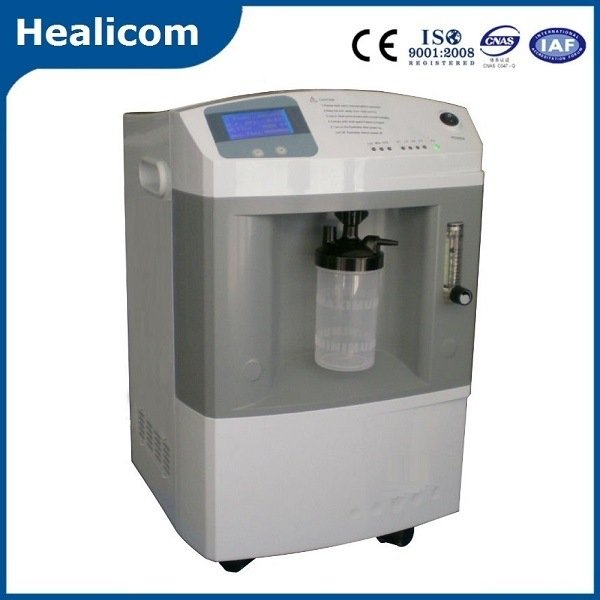

Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L

Quantity:

PDF Export

  • JAY-10
  • Type 2
  • Ce ISO
  • 93±3%
  • ≤550W
  • 0.04-0.07
  • with LCD Display
  • healicom
  • CE ISO
  • 8419601100
  • Jsyjxz20132540059
  • CE, ISO13485
  • 0-10L/Min
  • AC220V±10% or AC110V±10%
  • ≤50dB
  • China
  • All People
  • Carton
  • Jiangsu, China

Product Description

Features
PSA (Pressure Swing Adsorption) technology
Adjustable flow rate
Large LCD display for switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours.
Available for 1-2 persons at the same time.
Maintenance reminding.

Specification
Model JAY-5 JAY-8 JAY-10
Flow rate 0-5L/min 0-8L/min 0-10L/min
Purity 93±3%
Outlet Pressure (Mpa) 0.04-0.07
Sound Level ≤50db
Power AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz
Power Consumption ≤480W ≤480W ≤550W
LCD display Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours
Alarm Power failure alarm, High & Low pressure alarm
Net Weight 25Kgs 27Kgs 28Kgs
Size (mm) 365×375×600mm
OPTIONAL
*Nebulizer
*Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light
*Maintenance alarm: alarm for maintenance after 3000 hours operation
*Alarm for high temperature inside systems above 50°C
*Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
*Small LCD display: accumulating time; present working time presetting time.
*Double flow.

Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L
Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L
Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L
Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L
Jay-10 Medical Portable Oxygen Concentrator 10 Lpm Oxygen 10L
