Infusion Pump 820 Medical Equipment Portable Hospital Electric Automatic Portable Infusion Pump

Availability:
Quantity:

PDF Export

  • Healicom

Product Description

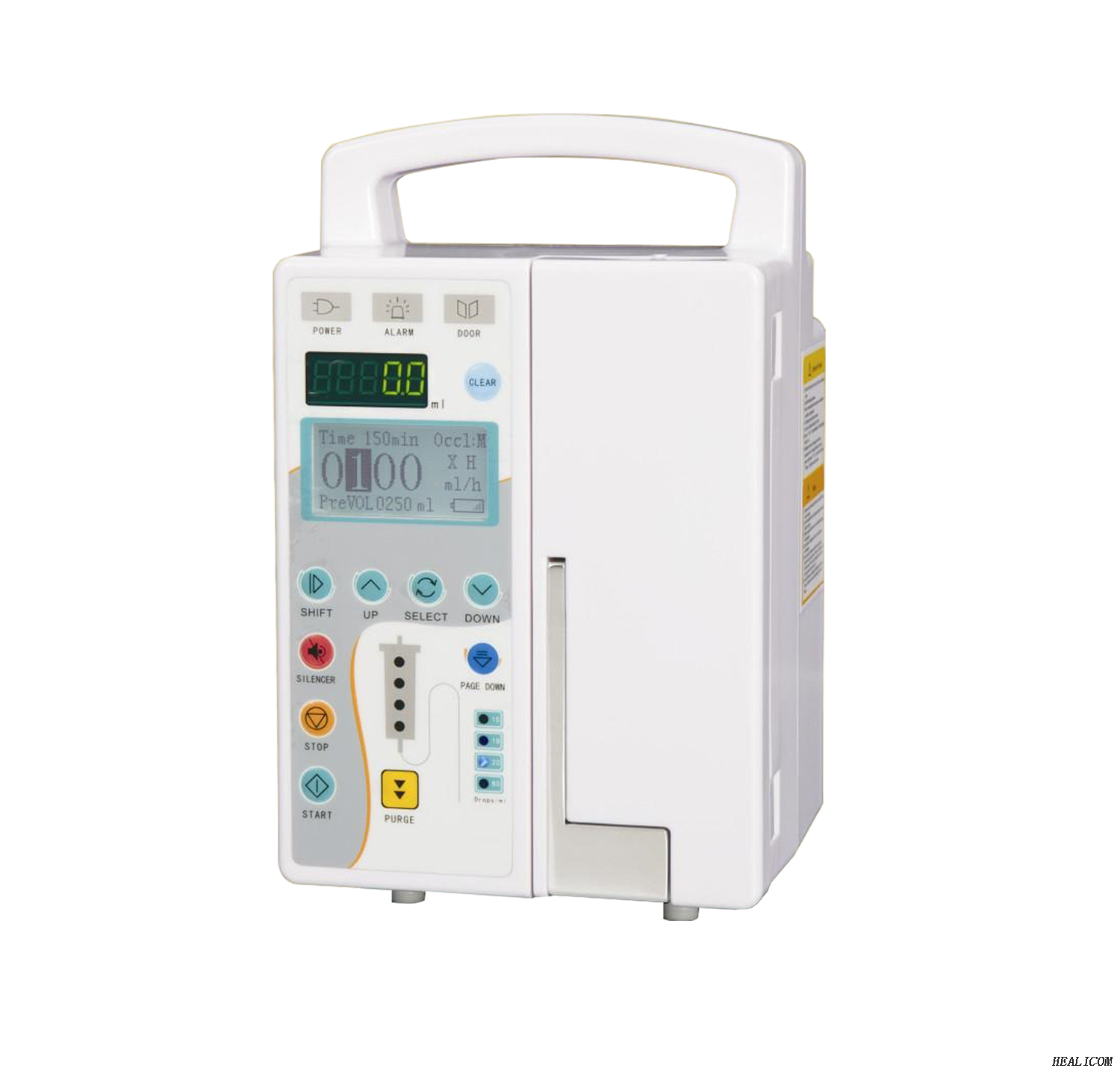

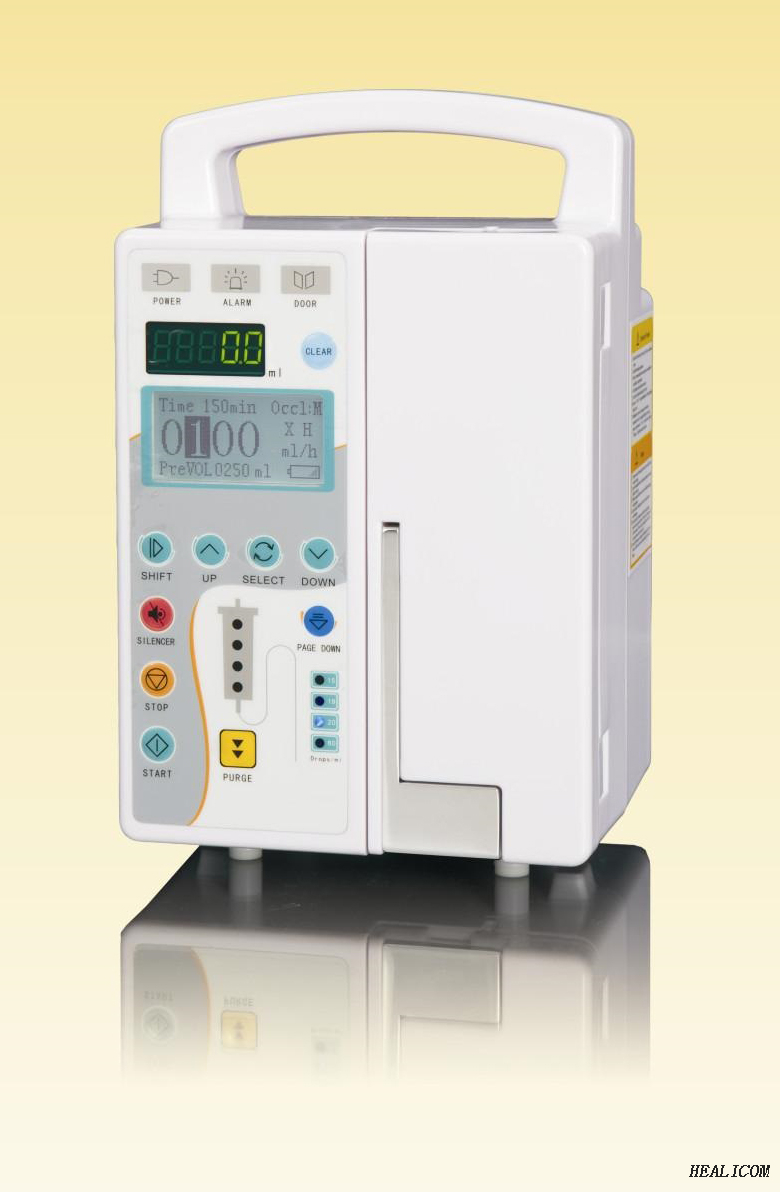

Medical Equipment Portable Hospital Electric Automatic Portable Infusion Pump

1
Product introduction
1.Unique audible and visual alarm, safe and reliable, gain patents
2.Compatible with any brand iv sets after correct calibration
3.work mode:ml/h and drop/min. can switch freely

Feature:
Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting etc
HD LCD Display, high capacity words, friendly user interface, dynamically display working status
Compatible with any brand of infusion sets after correct calibration
Preset Solution Volume to greatly reduce the workload of nurses
Work mode: mlI/h and drop/min can switch freely
Three levels of occlusion: high, middle and low
Purge function
Automatically record the settings of last infusion


Specification:
Infusion Rate   0.1m/h---1200mI/h (1ml/h step)
Rate Accuracy within+5 % (after correct calibration)
Purge Rate 100m/h---1200ml/h(can be calibrated)
Volume Limit 0m1---9999ml
Total Infusion Volume 0---9999.9 ml
Alarm Pressure High:800mmHg±200mmHg(106.7kPa+26.7kPa)
Medium:500mmHg± 100mmHg(66.7kPa+13.3kPa)
Low:300mmHg±100mmHg(40.7kPa+13.3kPa)
Alarms end of injection, occlusion, door open, bubbles in the tube, wrong setting,low battery, AC power pulled out etc
Power source 100---240V 50/60Hz;4 hours internal battery backup
Bubble Detector ultrasonic wave detector, detection sensitivity≥25μL
KVO Speed 1m1/h--- 5ml/h (1ml/h step)
Power Consumption 18VA
Operation Environment Temperature +5----+40 degree
Relative Humidity 20----90%
Storage Temperature -30----+ 55 degree
Humidity≤95%
Atmospheric Pressure 50. 10KPa----106.0KPa
Weight 1.8kg
Dimension 140mm (L)x 157mm (W)x 220mm (H)
Forbidden Not support blood Infusion
Package 1pc per each Carton, 2.8KG; 24cm (L) x 26cm (W) x 31cm (H)
2pc per each Carton, 5.8KG; 52cm (L) x 30cm (W) x 36cm (H)
3pc per each Carton,   9KG;  76cm (L) x 30cm (W) x 36cm (H)
