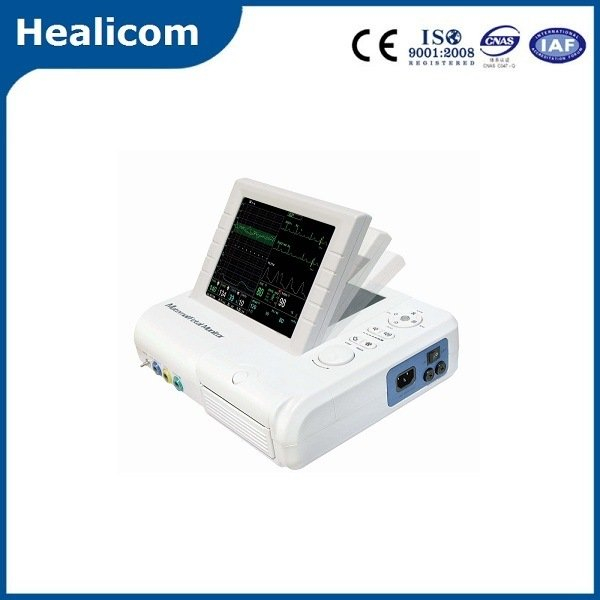

Hm-800f Portable Ctg Mother & Fetal Monitor

Features:
*Single or Twins Ultrasound transducer
* Data Graph and Trend Table Review of both mother and fetal
* Built-in thermal printer
* Built-in Network capability for connect with central monitoring software
* Programmable alarms
* All the colors and looks or the parameters can be customized
* Multi-face views, select focus on mother or fetal
* Storage of patient information and data

Performance Specifications:
* Display: 8.4" Color TFT
* Resolution: 640x480
* Display Mode: Standard View, Fetal View, Mother View
* Indicator: Power indicator light, Alarm sound

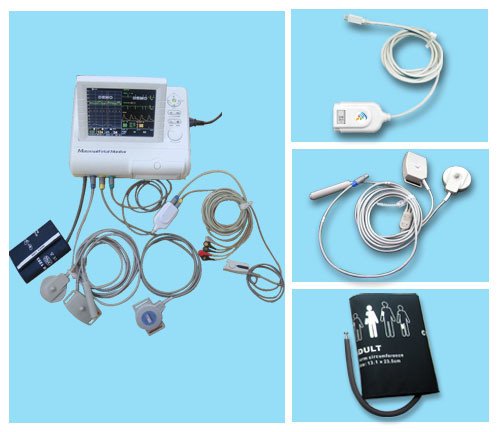

* Interface: Socket for connecting fetal's FHR, TOCO, and Fetal Movement sensor Socket for connecting mother's ECG, NIBP and SPO2 sensor.Net Socket(RJ45) for communication cable with Central Monitoring Station Software.
* Power Supply: AC 100 ~ 240V, 50/60Hz, Power < 60VA
* Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
* Trend Table: Resolution from 1s, 5s, 10s. Review up to 1000 items.
* Alarm: Adjustable High and Low limits. Three level audible and virtual alarm.
* User Configuration: All the color of parameters and waves can be set according to user's willing.

Technical specifications:
* Safety
* Meet the requirment of IEC60601 series
* Type of Protection: Class II with internal electric power supply
* Degree of Protection: BF
* Dimension and Weight
* Dimension: 92(W)x82(H)x22(D)mm
* Weight: 136g(with battery)
Operation Environment:
* Temperature:0&ordm;C~ +40&ordm;C
* Humidity: 15% ~ 95%
Storage Environment:
* Temperature:-20&ordm;C~ +60&ordm;C
* Humidity: 10% ~ 95%
* Patient Range: Pregnant Adult
FHR:
* Ultrasound Frequency: 2MHz
* Range: 50 ~ 210 bpm
* Resolution: 1bmp
* Accuracy: &plusmn;2bmp
TOCO:
* Range: 0 ~ 100%
* Resolution: 1%
* Non-linear Error: <=&plusmn;8%
* Zero control: Manual
FETAL MOVEMENT:
* Manual fetal movement mark
SPO2:
* Measurement Range: 0 ~ 100%
* Resolution: 1%
* Accuracy: &plusmn;2%(70%~100%, Adult/Pediatric, non-motion)
          &plusmn;3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
* Alarm Range: 0% ~ 100%
* Refreshing Rate:1s
Pulse Rate:
* Measurement Range: 25 ~ 250 bpm
* Resolution: 1bpm
* Accuracy: &plusmn;3 bpm (non-motion)
* Alarm Range: 25 ~ 250 bmp
* Refreshing Rate: 1s
ECG:
*Lead mode: 3-lead or 5-lead
* Lead selection: I, II, III, AVR, AVL, AVF, V
* HR range:15 ~ 300 bpm
* ECG Waveform: 2 channels
* Accuracy: &plusmn;2bpm or &plusmn;2%, which is greater
* S-T segment detection range: -2.0mv ~ +2.0mv
* Arrhythmia analysis: 13 kinds of arrhythmia
* Alarm Range: 15 ~ 300 bpm
NIBP:
* Method: Oscillometry
* Mode: Manual/Auto/Contiuous
* Measurement Range: 25 ~ 260mmHg
* Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
* Resolution: 1mmHg
* Overpressure Protection: 300mmHg
* Alarm range: 25 ~260mmHg
