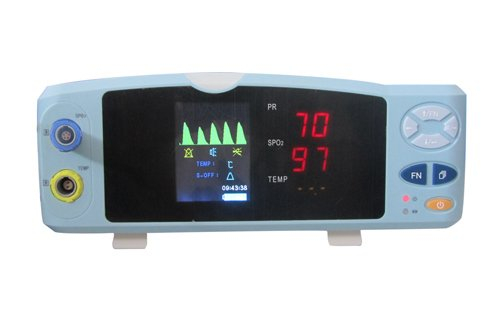

Three parameters: SpO2,Pulse Rate,Temperature
* SpO2 waveform, PR strength display
* 2.8 inch color LCD with real time display
* Storage/Review trend data up to 3888 groups, data save time interval settable
* Audio and visual alarm when parameters exceeded and sensor-off
* Built-in rechargeable Li-ion battery, up to 8 hour running time
* Automatic shutdown for power saving, shutdown time interval settable
* Via USB to connect with the computer, unique software for telemonitoring
by transmitting data synchronously via internet
* Battery capacity indicatior and prompt when battery low
Technical Specifications
SpO2
Measure Range: 35~100%
SpO2 Accuracy: 2%(70~99%), 3%(40~70%)
Pulse Rate Range: 0~254 bpm
Pulse Rate Accuracy: 1 bpm
Alarm limits range:
SpO2 upper limits : 95~100% lower limits: 85~96%
Pulse Rate:keep up with the heart rate
Temperature
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Measurement Unit: °C/°F selectable
Measure range: 0~50ºC
Alarm limits range: Upper limits 36~45ºC Lower limits 34~38ºC
Measure accuracy: 0.1ºC
System specifications
Alarm ON/OFF: controlled by general switch and parameter switch (two levels)
Display mode: LED and 2.8' color LCD screen
Trend data: 3888 groups of SpO2, TEMP, trend data, The record time interval can be set to 5 Sec. to 120 Sec. , so that the record time rang can be up to 128 hr.
AC power adaptor
Input: AC 100~240V, 50/60Hz, 0.7A
Output: DC 5V,2.5A
Internal battery
Type: 2800mAh/3.7V Li-ion rechargeable battery
Operating Time: 15 hours of stand-by time with a full battery.
Recharge time: 8 hours
Dimension:280mm×190mm×100mm
Net Weight : 1000g
