Hc-05 High Quality Dental X-ray Film Processor
You are here: Home » Products » Dental equipments » Dental Film Processor » Hc-05 High Quality Dental X-ray Film Processor

Category List

Hc-05 High Quality Dental X-ray Film Processor

Quantity:

PDF Export

  • HC-05
  • Dental X-ray Unit
  • Ssyjxzz20102300187
  • 50Hz
  • 2-8 Min
  • CE ISO
  • Carton
  • Jiangsu, China
  • ISO, CE
  • Type 1
  • 220V±10%
  • 12months
  • 7.5kg
  • Healicom
  • CE, ISO
  • 9018909090

Product Description

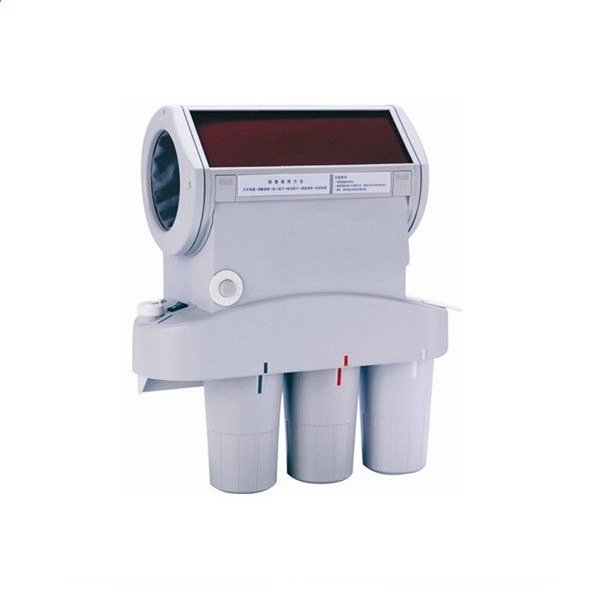

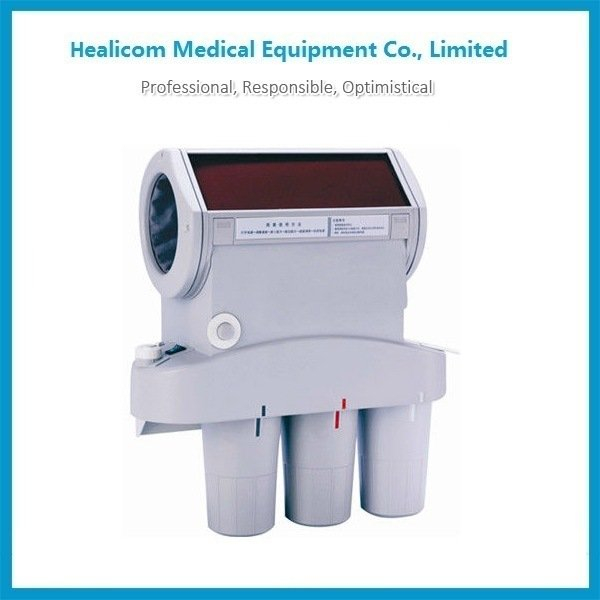

Hc-05 High Quality Dental X-ray Film Processor
The product is oral X-ray film bath equipment, which is produced by our corporation with optimized and modified technology. It is produced strictly according to international standards, and its main parts are selected from products of the developed countries. The product has many characteristics such as small volume, safety and stability, rapid and convenient operation. This machine may be used in the condition of open rooms.

Introduction
The oral automatic X-ray film bath equipment is a total automatic and wall mounted type. The film is bathed automatically through three steps: developing, fixing and bathing. The time developing films needed can be selected in the designing range. During the bathing process, delivery mechanism adopts anti-flaming ABS engineering materials. It has easy cleanliness and maintenance, stable running, small volume, operators do not touch the developers and fixers directly, convenient and safe operation and so on characteristics.

Main Technical parameters
1. Normal working conditions
a). Surroundings temperature: 10°C~30°C;
b). Relative humidity: ≤70%;
c). Atmospheric pressure: 700hPa~1060hPa;
d). Voltage of electrical source: 220V±10V;
e). Frequency of electrical source: 50Hz±1Hz.
2. Surroundings of transportation and reservation
a). Surroundings temperature range: -40°C~+55°C;
b). Relative humidity range: ≤93%
c). Atmospheric pressure range: 500hPa~1060hPa.
3. Performance
Storage conditions: 5-40 degrees Celsius, relative Humidity
(1) Processing time of film
The time which develops films needed is 2min~8min, and can be accommodated continuously. The error is within±10%.
(2) Light leaking
During the bathing process, light leaking is not permitted.
(3) The stability of film delivery
The delivery mechanism of film should not lacerate or lock films.
(4) The timing panel of transit film
The timing panel of transit film adopts the number 1~12 represents month, each scale represents 10 days.
4. The product structure
It is composed of Main body, Light-tight box, Delivery mechanism of film, Liquid cup and Screen and so on.
5. Input power: 4VA.

Technical parameter
Nominal-Voltage 220V±10%
Nominal Frequency 50Hz
Nominal Input power ±12W
Film Run Through Time 2-8 min
Protecting Category  11
Defend Grade IP21
Weight of unit  7.5kg
Size 42× 19× 45(cm)
