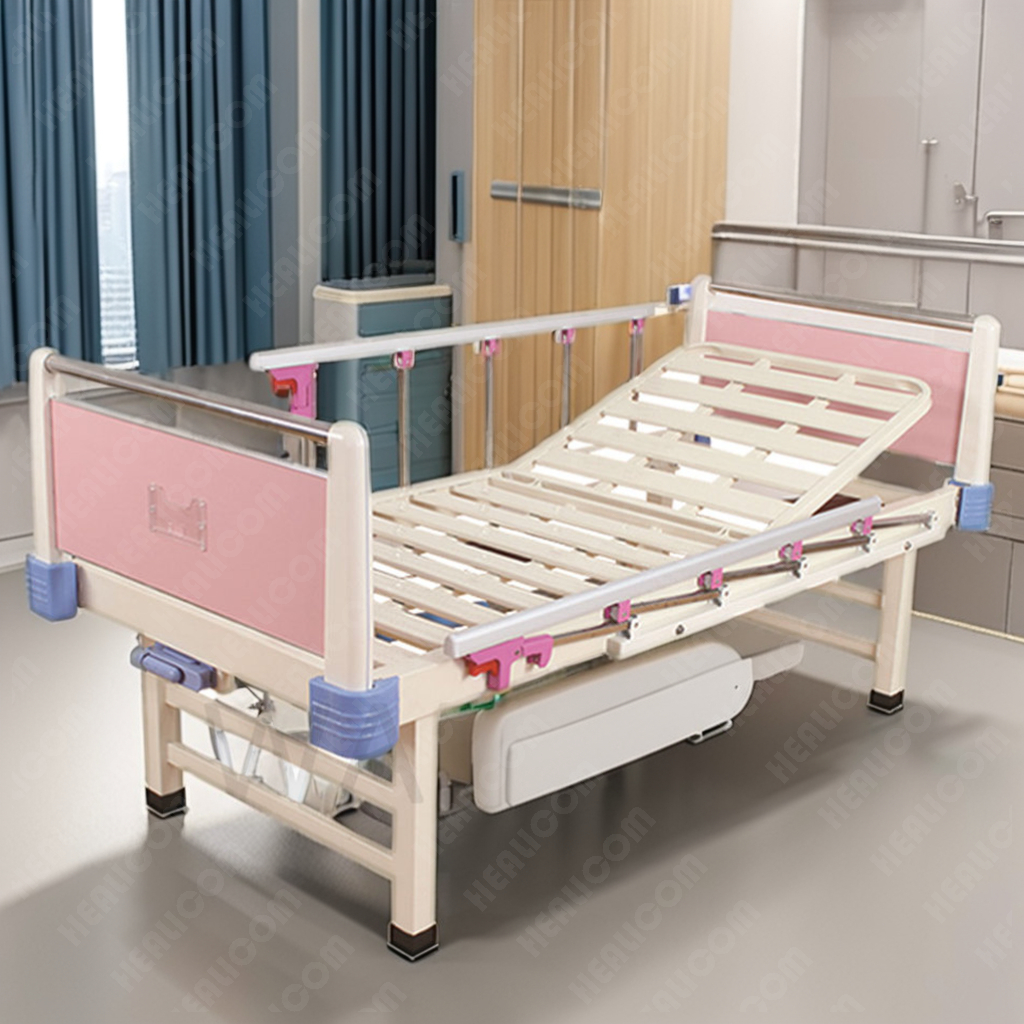

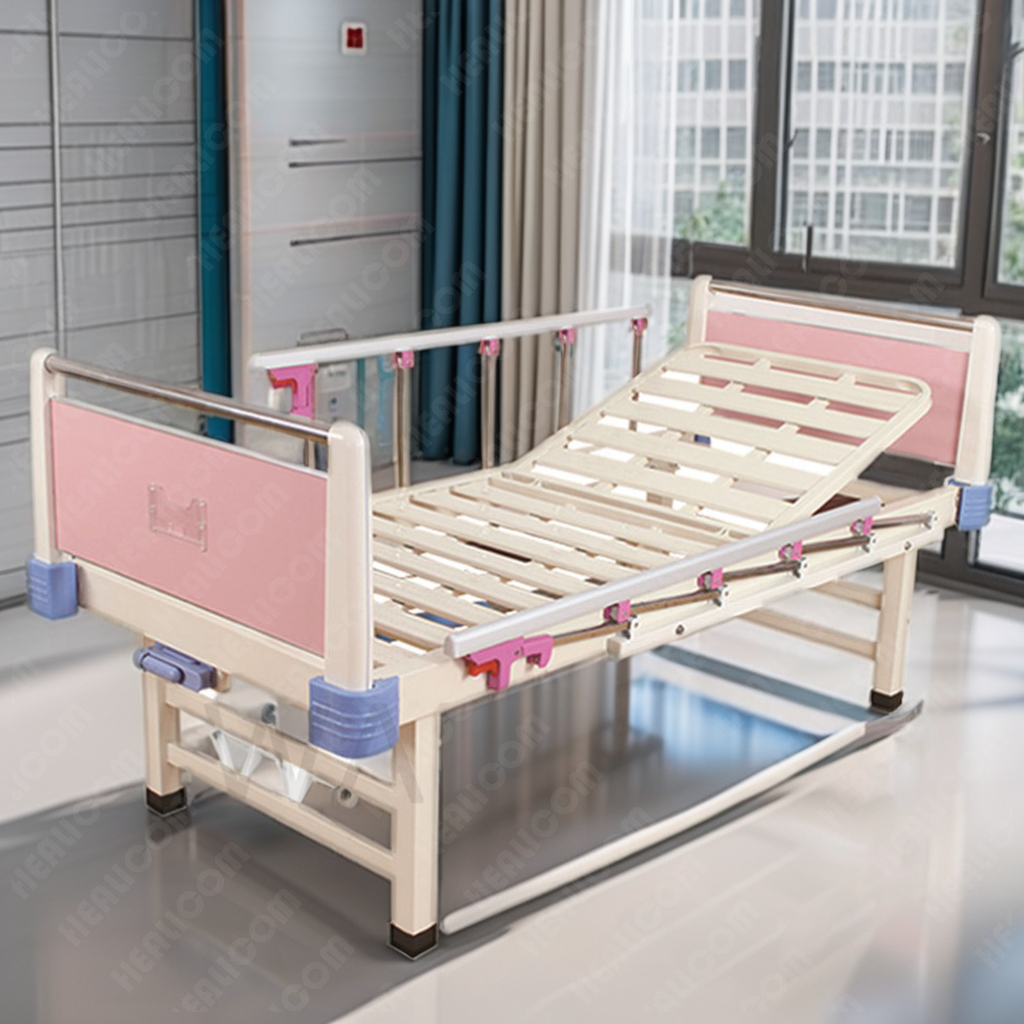

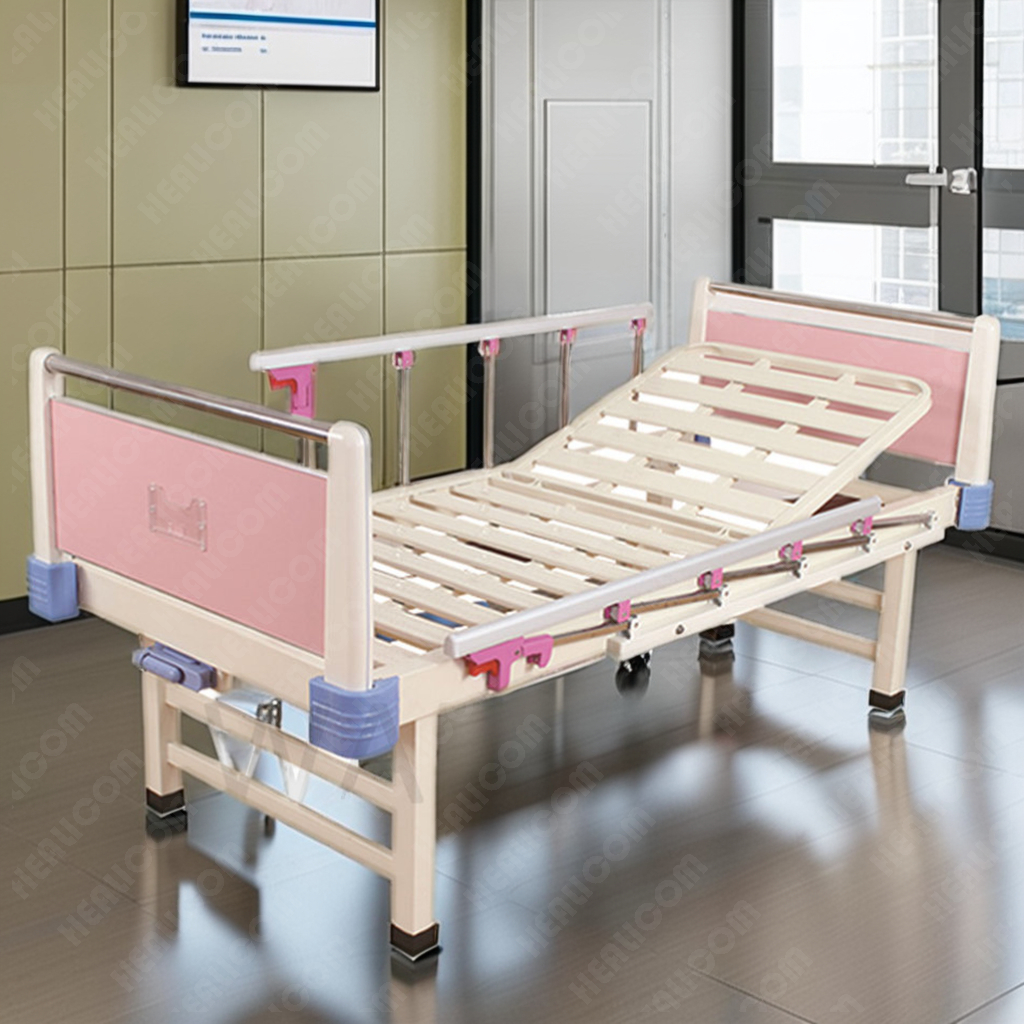

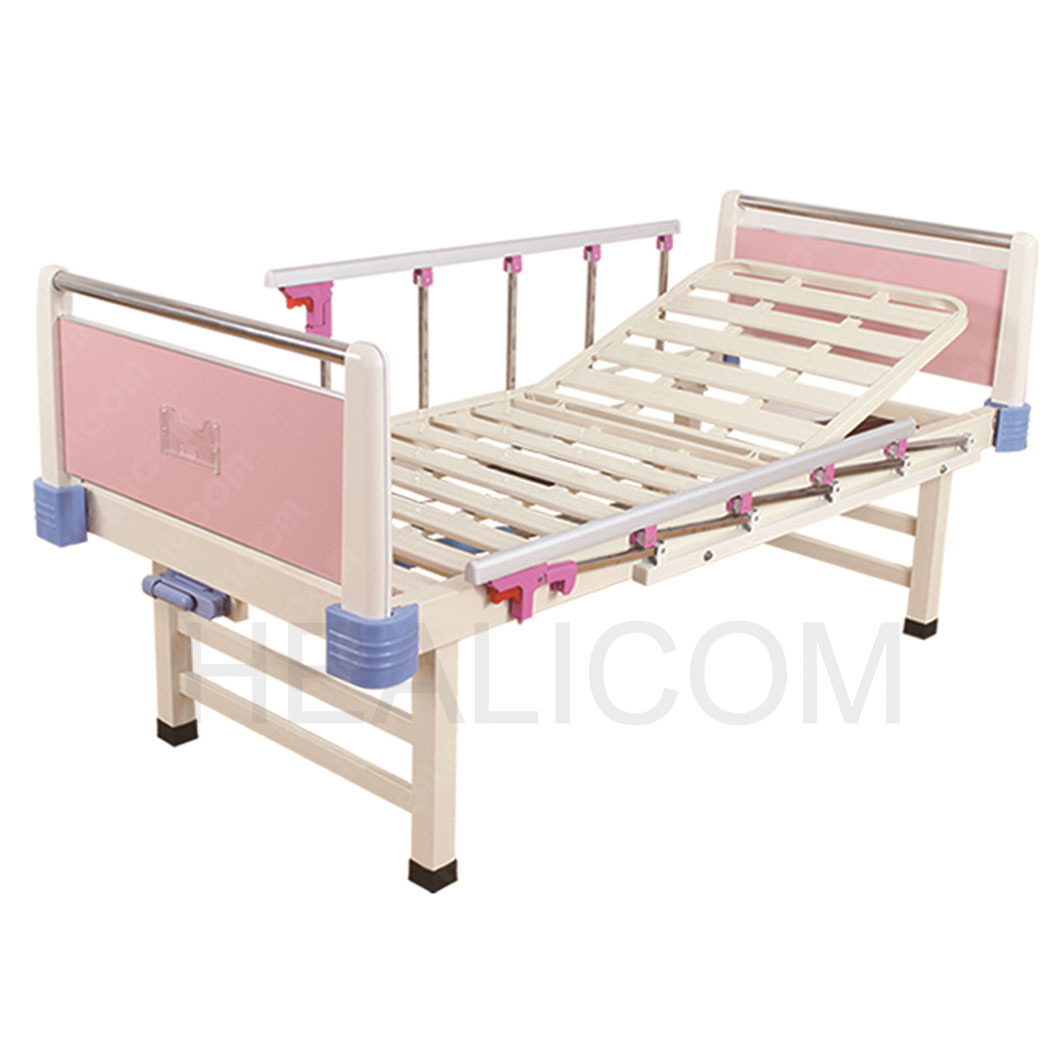

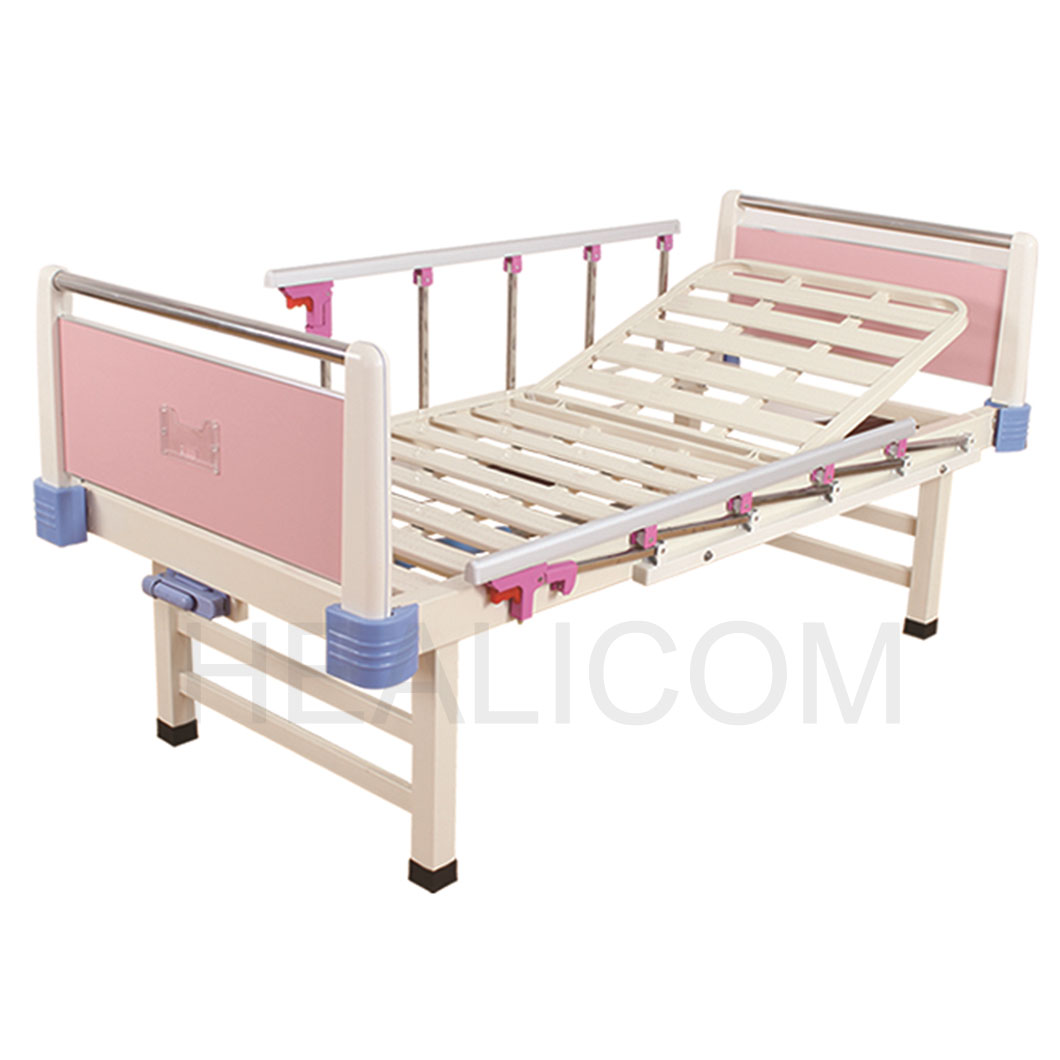

HZK-18 Medical One Crank Single Function Manual Inpatient Hospital Children Bed

HZK18 Single function manual children bed

1. Specifications：

1880mm in length (including the head of the bed), 860mm in width (including the guardrail), and 500mm in height;

2. Lifting function：

Back lifting function: The back lifting foot can reach 0-75°±5°;

3. Bed frame:

(1) The bed frame is welded with 40*80*1.2mm (thickness) formed square tubes. The bed body adopts advanced automatic welding technology, with high-quality welding, strong bed body, and can carry ≥200kg; The bed body has a reserved infusion stand hole;

(2) The bed legs are welded with widened 50×50×1.2mm rectangular tubes to enhance the stability of the bed body;

4. Bed panel:

(1) The bed frame is made of cold-rolled square tubes and strip panels, with no welds on the surface; it is firm and reliable, and the top of the back section can bear ≥150kg;

5. Production process:

(1) Pipe cutting: The steel pipes and sheet metal parts used in the product are cut by laser pipe cutting machines to effectively ensure the accuracy of the workpiece; (laser on-site operation pictures can be provided);

(2) Robot cluster welding is adopted, and the welding process is protected by mixed gas. The weld is smooth, beautiful, and free of oxide film; (robot on-site operation pictures can be provided);

(3) Carbon steel surface treatment: self-owned fully automatic electrostatic powder spraying is adopted The coating line is completed in one go, the coating is uniform, and it has the characteristics of antibacterial, acid and alkali resistance, corrosion resistance, and fading resistance. Before spraying, it is rust-proofed by a high-speed shot blasting machine. The metal surface treatment of the whole bed adopts eleven processes such as degreasing and oil removal, cleaning, pickling and rust removal, cleaning, neutralization treatment, surface treatment, phosphating treatment, cleaning, drying, electrostatic powder spraying, and high-temperature baking and curing. It is made by a fully automatic spraying line. The phosphating process material is zinc series to avoid rust on the inner wall of the material. The coating surface has strong adhesion, is flat and smooth, and is corrosion-resistant; it extends the service life of the bed;

6. Control:

The hand crank handle is made of a new high-strength ABS engineering plastic one-time injection molding, with a steel core embedded inside, which is strong and durable, can be folded and hidden to avoid touching the feet, and is affixed with a body position lifting mark. The operation is clear at a glance, and the color is coordinated with the bedside. The pull-out telescopic design lengthens the rocking arm, making the operation easy and labor-saving. The telescopic rocker is made of stainless steel, with a steel universal joint. The screw rod is made of high-grade structural steel double-wire extrusion molding. The structure uses precision bearings and oil-containing copper nuts. It has a two-way slip limit function and an in-place overload protection function. A proper amount of butter is added inside, equipped with an ABS dust cover, and a fully enclosed design to prevent dust from entering.

7. Head and foot of bed:

(1) High-grade engineering plastic ABS composite head and foot of bed (with stainless steel tube embedded on top), seamless, easy to clean, non-deformable, stable and reliable, with information card slot on the outside of the footboard, symmetrical quick hook seat, can be quickly disassembled to meet clinical emergency needs;

8. Guardrail:

(1) Side guardrail D-shaped aluminum alloy handrail, surface hardening treatment, 5 stainless steel guardrail pillars, upper and lower connecting parts are made of one-time stamping steel parts, thickness 2.0mm, the switch is carefully designed to ensure long-term safety, equipped with anti-loose fasteners, wear-resistant, non-deformable, can be retracted and laid flat, slightly higher than the bed surface when retracted, to prevent the mattress from shifting;

9 Mattress:

(1) Thickness 60mm; overall specifications are consistent with the bed;

(2) Medical special mattress;

(3) The inner layer is made of sponge and coconut palm, breathable, consistent with the bed;

The outer skin can be flexibly disassembled to facilitate clinical nursing hygiene and cleaning;
