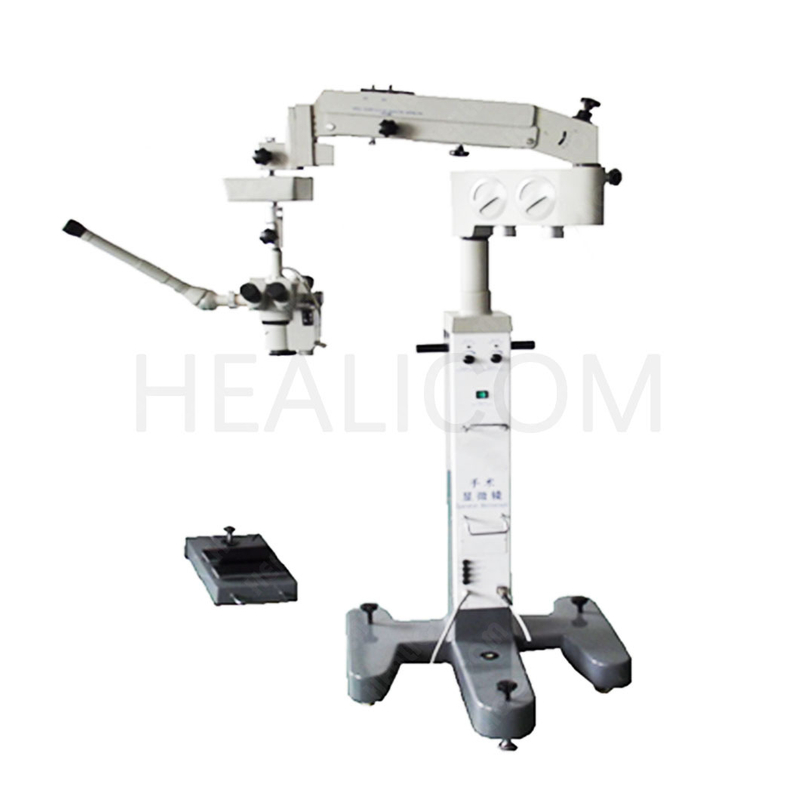

HXT-X-6A Medical Surgery Operating Operation Microscope

The HXT-X-6A Precision Ergonomic Design Dual-View Mobile Operation Microscope combines functionality with comfort. Its ergonomic build reduces user fatigue during extended use, making it ideal for intricate operations. The dual - view feature allows simultaneous observation from two perspectives, enhancing collaborative work and accuracy. Being mobile, it can be easily moved between workstations. With high - precision optics, it provides clear and detailed imaging, making it an indispensable tool for medical, research, and industrial applications that demand meticulous visual inspection.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HXT-X-6A

  • Healicom

Product Description

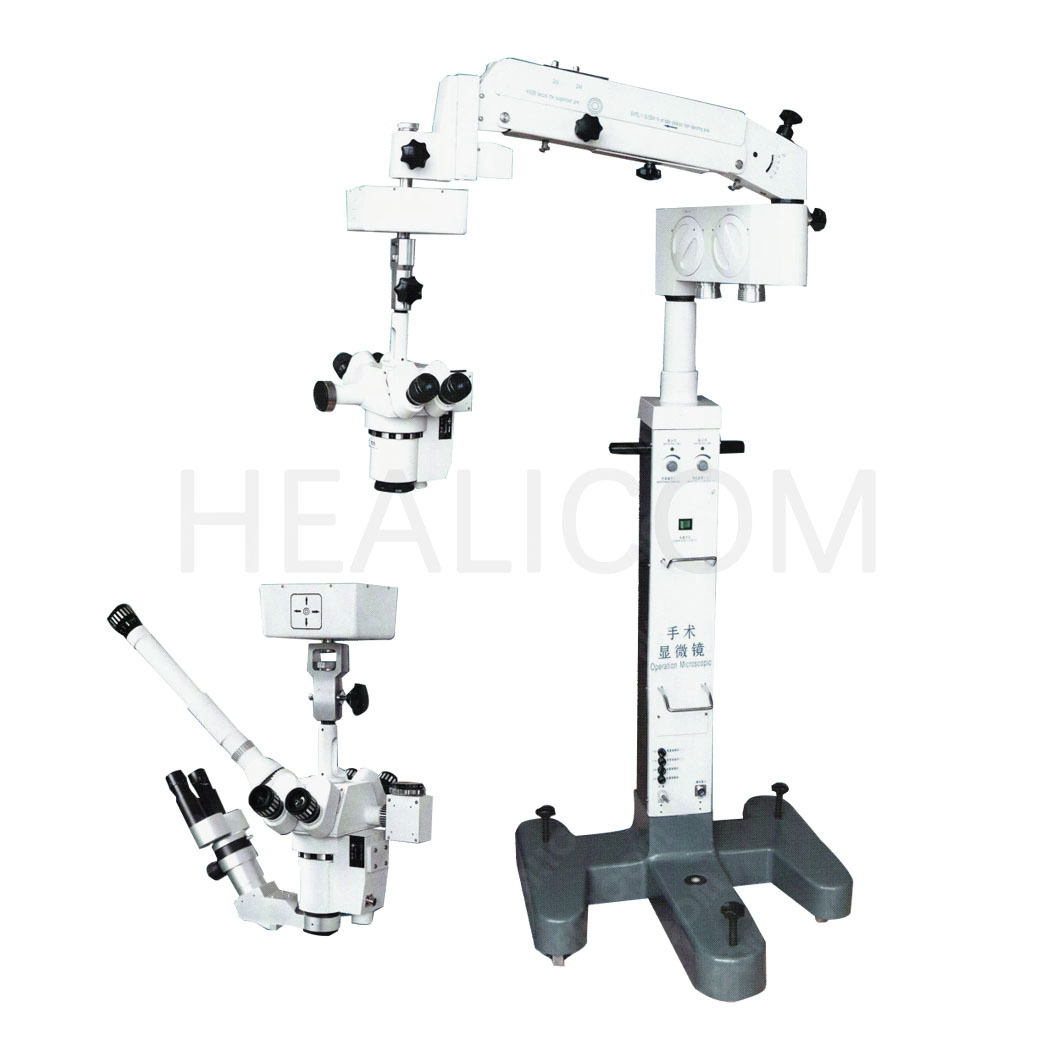

HXT-X-6A Precision Ergonomic Design Dual-View Mobile Operation Microscopeh1

Product Features
·
The instrument adopts continuous variable optical system withc lear image,strong visual sense and wide field of vision.The surgeon in charge and the surgeon in charge can make observations at the same rate.
· The instrument has three kinds of large objective lenses with different foca lengths,and thus has three kinds of different working distances,which can be applied to various surgical needs of different depths.
· Lighting device adopts cold light source coaxial lighting system,equipped with four groups of light source system.
· Equipped with foot control electric X-Y plane mover,movement range X-Y:40mm.
· The instrument frame adopts new balanced structure,high and low,left and right adjustment can be in any balance position,the operation is light and flexible, stable and reliable.

Technical Parameters
Eepiece magnification:
12.5X Alf wide-angle eyepiece
Focal length of objective lens:
200mm
Working distance:
192.74mm
Primary mirror magnification:
5X -- 25X, clectric/manual continuous poleless doubling
Field of view diameter:
11mm-82.5mm
Visual adjustment range:
±6D
Pupil distance adjustment range:
55mm-75mm
Illuminating source:
four groups of light sources, using 15V/150W, cold light coaxial lighting
Coaxial illumination:
≥50000LX
Horizontal arm extension radius:
≥1230mm
Vertical adjustment range:
≥550mm
Fine tuning speed and stroke:
≤1.5mm/s,>40mm
X/Y coordinate moving speed and range:
≤1.5mm/s,>40mm
Power supply voltage and frequency:
220V±10% 50Hz

h2

ecc7f6d61d70b8c54aaf28e0ebaf390

Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
