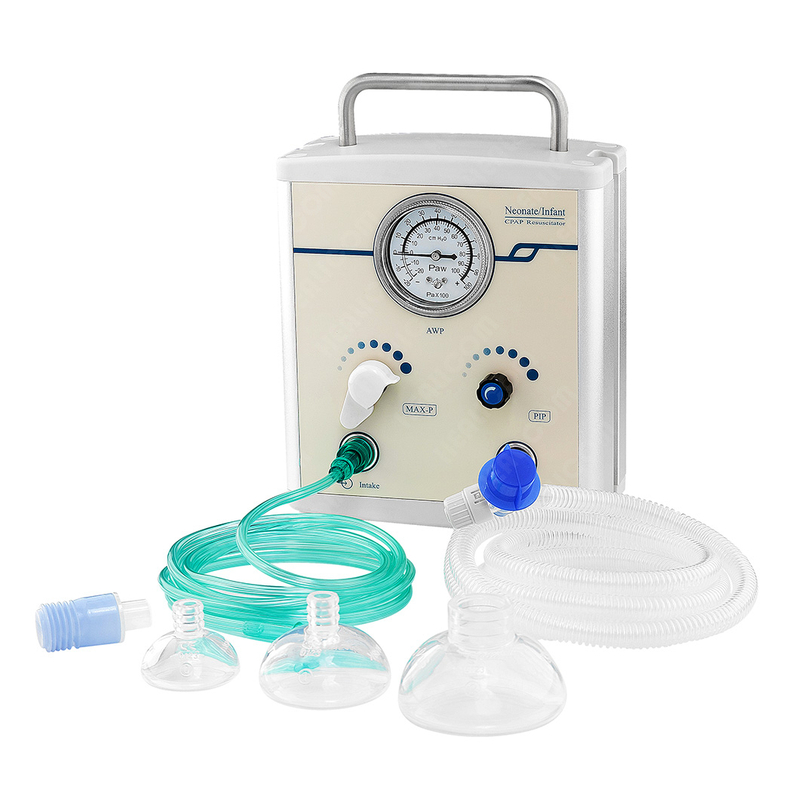

HR-3000A
Healicom
Product Description
1.It is mainly used on delivery room, baby wards, NICU that the baby’s maximum weight up to 10KG.
2.The different concentrations of medical oxygen will be configured by adjusting the proportion of oxygen and air.
3.Inside an alarm system of differential pressure. When alarming, the safety valve starts automatically, and produces the mixture gas continuously to ensure the safety of patients, Adjust the oxygen concentration from 21%~100%.
4.The range of flow adjustment is 5LPM~15LPM.
5.The MAX-P and PIP are safe, controlled and accurate.
6.The PEEP is constant and accurate.
7.Simple operation and flexible application.
8.The output pressure would not be influenced by the operator’s experience, training, attention and fatigue. Instead of temporarybreathing support.
| Flow | 0-15LPM |
| FIO2 | 21-100% (±3%) |
| Alarm Activation | Gas supply pressure difference > 0.1MPa |
| Alarm Noise | > 57dB(A) |
| Pressure Gauge | -20-100cm H2O |
| Pressure Limitation (MAX-P) | 25-60cm H2O, @15LPM |
| PIP | 2-57cm H2O, @5-15LPM |
| PEEP | 0.3-23cm H2O, @5-15LPM |
| Gas Source | 3-4bar(0.3-0.4MPa) |
| drive mode | ELECTRICITY |
| product life | 3 years |
| Product safety certification | ISO13485 |
| product classification | Class II |
