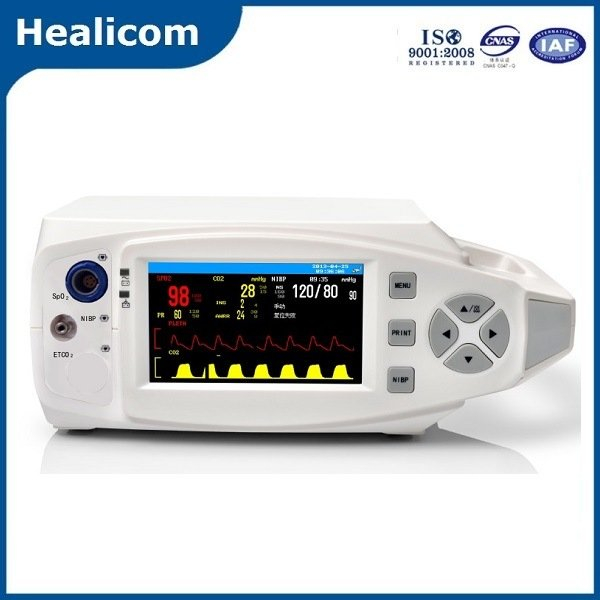

HP-810 Medical Table Top Oximeter with NIBP

HP-810 Medical Table Top Oximeter with NIBP

Quantity:




Inquire Add to Basket PDF Export

Model NO.:
HP-810
Type:
Patient/Fetal/Maternal Monitor
Group:
All
Medical Devices Reg./Record No.:
Ssyjxzz20122210576
Waveforms:
SpO2 Waveform
Pr Accuracy:
±1bpm or ±1%(The Larger One)
Pr Power Consumption:
Below 30mA
Storage Temperature:
-10°c-40°c
SpO2 Resolution:
±1%
Transport Package:
Carton
Origin:
Jiangsu, China
Classification:
Physiological Functions of Diagnosis and Monitoring Equipment
Certification:
CE, ISO13485
Medical Device Regulatory Type:
Type 2
Parameters:
Three Parameters: SpO2, Pulse Rate, NIBP
Pr Measurement:
30bpm-240bpm
Pr Power:
Two AAA 1.5V Alkaline Batteries
Operation Temperature:
5°c-40°c,
Air Pressure:
70kpa-106kpa
Trademark:
Healicom
Specification:
CE, ISO
HS Code:
9018909090

Product Description

Product Description

Parameters
Three Parameters: SPO2, Pulse Rate, NIBP

Waveforms
SpO2 Waveform

Features
COLOR OLED display, four direction adjustable.
SpO2 and pulse monitoring, and Waveform display.
Low-power consumption, continuously work for 50 hours.
Small in size, light in weight, and convenient to carry.
Low voltage alarm display, Auto power-off.
Runs on standard AAA batteries.

Detailed descriptions of product functions:
SPO2
Measurement range: 70%-99%
Accuracy: ±2% on the stage of 70%-99%, unspecified(<70%) for SPO2
Resolution: ±1%
Low perfusion: <0.4%
PR
Measurement: range:30BPM-240BPM
Accuracy: ±1BPM or ±1%(the larger one)
Power: two AAA 1.5V alkaline batteries
Power consumption: below 30mA
Automatic power-off: the product shuts down automatically after no signal for 8 seconds
Dimension: 62mm×32mm×33mm
Operation environment:
Operation temperature: 5°C-40°C,
Storage temperature: -10°C-40°C
Ambient humidity: 15%-80% on operation,
10%-80% in storage
Air pressure: 70kPa-106kPa
NIBP monitoring
Measurement method: Oscillometry
Measurement mode: manual/auto/continuous.
Auto measurement interval: adjustable from 1 to 255 minutes.
Resolution: 1mmHg.
Accuracy: Maximum Mean deviation≤±5mmHg, Maximum Standard deviation≤8mmHg.
Self-check function.
Overpressure protection: double protection for software and hardware.
Range: Adult:
Systolic pressure: 40mmHg~270mmHg
Mean pressure: 20mmHg~235mmHg
Diastolic Pressure: 10mmHg~215mmHg
Pediatric:
Systolic pressure: 40mmHg~200mmHg
Mean pressure: 20mmHg~165mmHg
Diastolic Pressure: 10mmHg~150mmHg
Neonate:
Systolic pressure: 40mmHg~135mmHg
Mean pressure: 20mmHg~110mmHg
Diastolic Pressure: 10mmHg~100mmHg
Upper and lower limit of alarm

Neonate
Systolic pressure	40mmHg~135mmHg
Mean pressure	20mmHg~110mmHg
Diastolic Pressure	10mmHg~100mmHg
