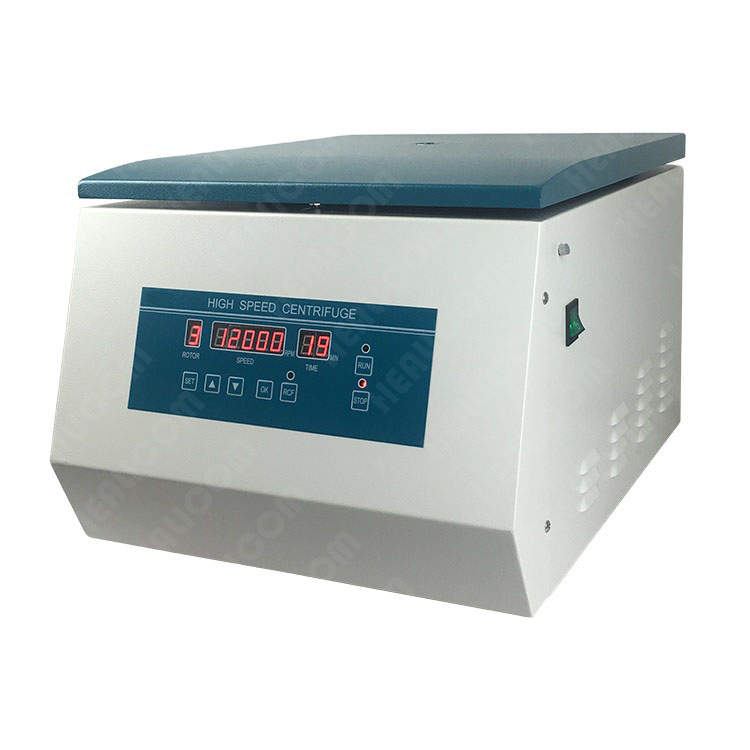

HC-16A HC-20C
Healicom
Product Description
Features:
◆Strong metal case
◆Brushless motor, LED display speed RCF and timer
◆Stepless speed adjustment
◆Available different rotors
◆Over speed and imbalance alarm
◆Arotor identification, electromagnetic door locks
◆Touch panel control , the error code display
◆Stainless steel chamber
◆LCD display optional
Model | HC-16A | HC-20C |
MAX RPM | 16000 RPM | 20000 RPM |
Max RCF | 17000xg | 26500xg |
Timer | 0-99min | 0-99min |
Rotor capacity | Angle Rotor 12×1.5/2 ml (standard) | Angle Rotor 12×1.5/2 ml (standard) |
Voltage | 110V 60Hz /220V50Hz | 110V 60Hz /220V50Hz |
Dimension(mm) | 410x520x320mm | 410x520x320mm |
Weight | 27kg | 27kg |
Rotor NO | Rotor capacity | HC-16A | HC-20C | ||
Max speed | Max RCF | Max speed | Max RCF | ||
A160212 | 1.5/2 ml × 12 | 16000 | 17800×g | 20000 | 26500×g |
A130224 | 1.5/2 ml × 24 | 13500 | 15100×g | 13500 | 15100×g |
A121012 | 10 ml ×12 | 12000 | 14800×g | 12000 | 14800×g |
A131006 | 10 ml ×6 | 13000 | 14350xg | 13000 | 14350xg |
A120712 | 7ml ×12 | 13000 | 14170×g | 13000 | 14170×g |
A130508 | 5 ml × 8 | 13000 | 11400×g | 13000 | 11400×g |
A115006 | 50 ml × 6 | 11000 | 12000×g | 11000 | 12000×g |
A130048 | 0.5 ml × 48 | 13500 | 14800×g | 13500 | 14800×g |
A121536 | 1.5 ml × 36 | 13000 | 14500×g | 13000 | 14500×g |
A1010004 | 100ml × 4 | 10000 | 9800×g | 10000 | 9800×g |
