H-ACLS850 Nursing Training Manikin/Mannequin Medical Dummy

H-ACLS850 Medical Training Use High Quality ACLS Training Tool Manikin / Mannequin

Product Introduction:

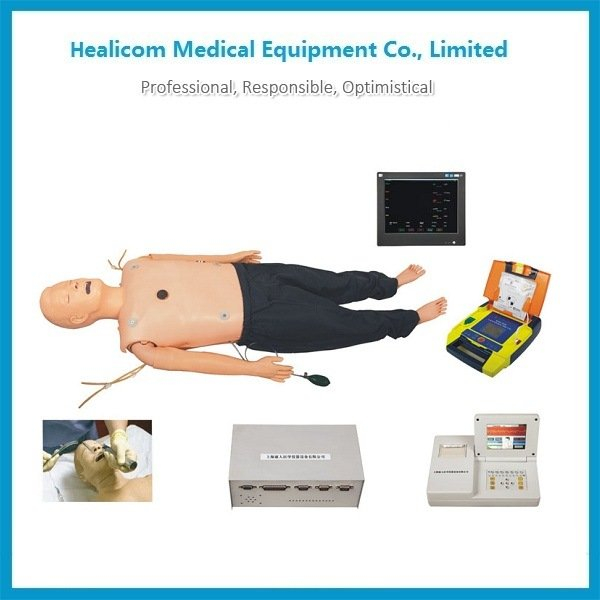

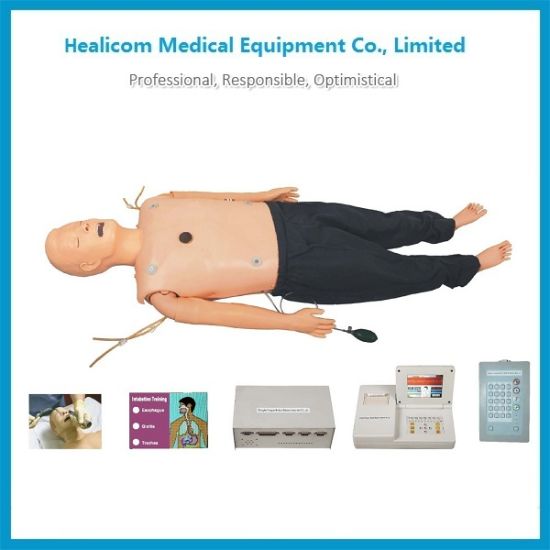

Complying with AHA (American Heart Association) 2010 guideline for CPR, H-ACLS850 provides ACLS (Advanced Cardiac Life Support) comprehensive training in first aid skills. The system consists of full-body manikin, AED machine, blood pressure measurement and data display of CPR. It provides a simple and practical ACLS training tool.

Features:
1.Airway management: standard nasal and oral intubation, tracheotomy intubation, supporting to head tilt and Jawthrust, audible feedback if pressure exerted on the teeth during intubation.
2.CPR: instantaneous displaying graphics of data, statistic report, sound directions related to CPR, result printing.
3.Simulating of a patient: the changes of pupils and carotid; the sounds of respiratory, moan, cough and vomit; more than 17 kinds of rhythm (access to 3/4 lead ECG monitoring); unilateral or bilateral bronchial obstruction; laryngospasm simulation.
4.Physical therapy: ECG monitoring via defibrillation connectors, the maximal energy of defibrillation is 360J; the frequency of external pacemaker is set to 60times/min, and the current threshold is 40mA.
5.Intravenous infusion and blood pressure measure training.
6.AED: automatically external defibrillation machine (only for training
use), providing electrode pad and electrode button.
7.Manikin's bare joint can rotate left and right, basically the same with the real human body size, and do foot care operations.
8.Manikin has interchangeable male and female external genitalia, can do catheterization operation training, bladder simulator is equipped inside, simulated urine can be injected into; if the operation is successful the simulated urine would flow out.

Standard components:
1.Full body manikin (1)
2.ACLS monitor (1)
3.ACLS converter (1)
4.Aluminum & plastic box (1)
5.CPR operation pad (1)
6.Exchangeable lung bag (5)
7.CPR face shield sheet (50pcs/box)
8.Temperature sensing print paper (2 roll)
9.H-S7 BP Training Arm (1)
10.Airway intubation parts (1)
11.Guide manual (1)
