HAC6000
Healicom
Product Description

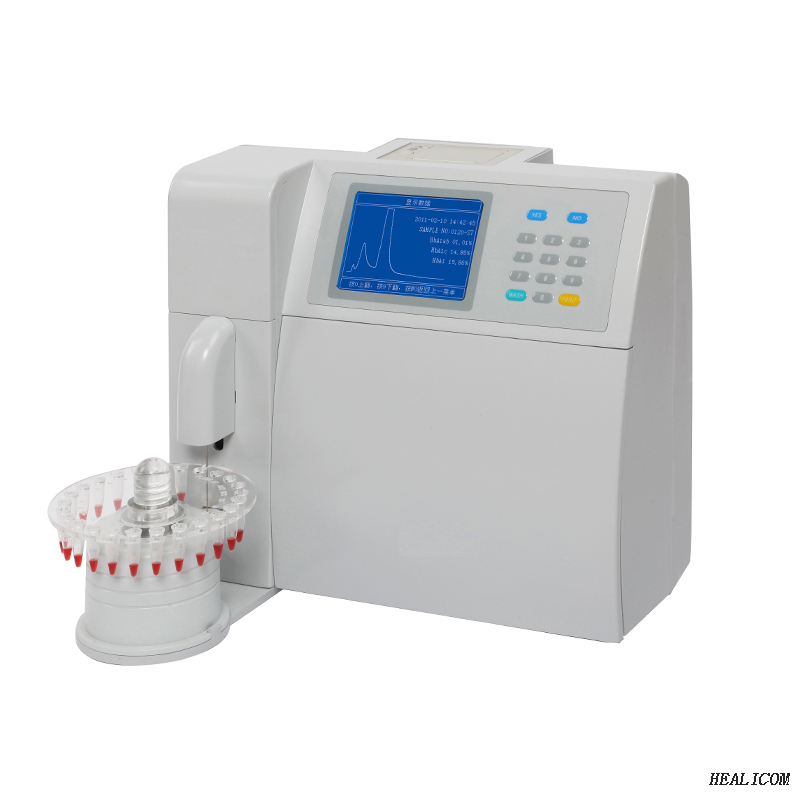

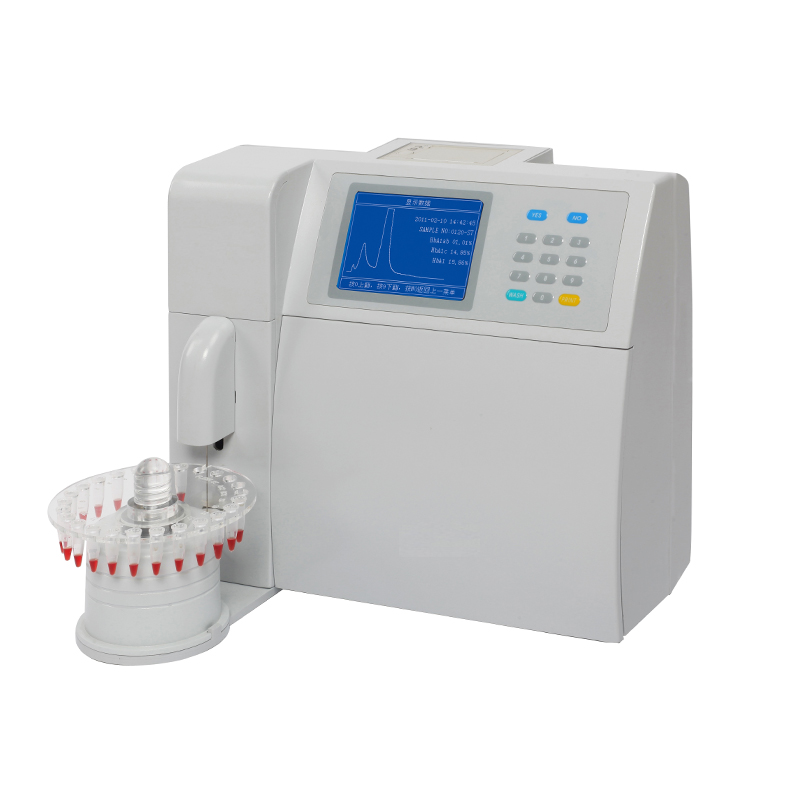

HAC6000 Full-auto Glycated Hemoglobin HbA1c Analyzer
Profile:

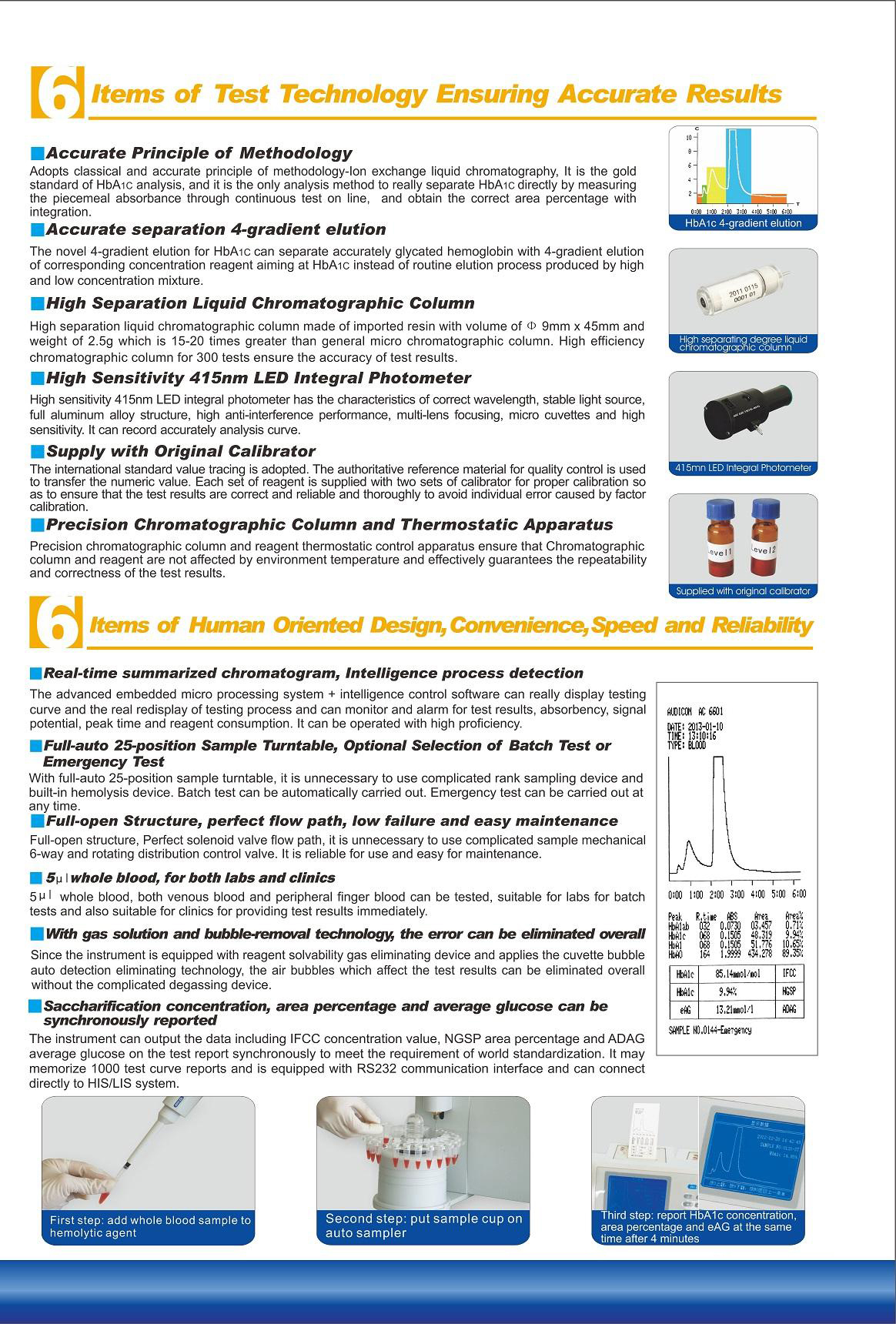

HbA1c Analyzer, with the methods of ion-exchange chromatographic column and single-wave visible light colorimetry, is used for analyzing HbA1c in clinical human full-blood sample. The structural characteristics and the performance parameters of the instrument conform to the actual requirement in clinical inspection. It features rapidity, correct, safety and low-pollution and has wide application in market.
Product parameter:
Model | HAC6000 | |
Basic Parameters | Test Method | Chromatography/Ion-exchange liquid chromatography |
Testing Item | Glycated hemoglobin HbA1c | |
Testing Range | 3%~18% | |
Testing Parameter | Precision(CV)≤3% | |
Testing Time | 4 minutes(Including report) | |
Sample Type | Venous blood(EDTA anticoagulation) peripheral finger blood | |
Function Parameters | Photometer | 415nm LED Integral flow colorimeter |
Sampling Mode | Full-auto 25 position sample turntable(20 sample positions, 2 quality control positions, 1 emergency position, 1 cleaning position, 1 zero position) | |
Testing Mode | Auto Test for batch, single test for emergency | |
Calibration | Optional 2 points or 4 points calibration, Manual or automatic, 2 sets of high and low level calibration | |
Thermostatic Control | Column and reagent thermostatic control 25±1℃ | |
Reagent Matching | One piece of column an reagent consumable/300 pieces of test samples | |
Reagent Allocation | Each standard package include A, B, C, D, eluent, Calibrator, Hemolytic agent, Pump tube | |
Output Parameters | Display | LCD Display, showing real-time testing curve |
Printer | 58mm thermal printer | |
Report Output | IFCC concentration value, NGSP area percentage, ADAG average glucose | |
Date Storage | 1000 test report(including testing curve) | |
Communication Interface | RS232, HIS/LIS System available | |
Working Parameters | Power Supply | 220V±10%, 50Hz |
Main Size(W*D*H) | 520*392*500mm | |
Sampling System Size(W*D*H) | 265*215*255mm | |
Main Weight | 14kg | |
Sampling System Weight | 2kg | |
Working Environment | Temperature 15~30℃ Relative humidity≤85% |
