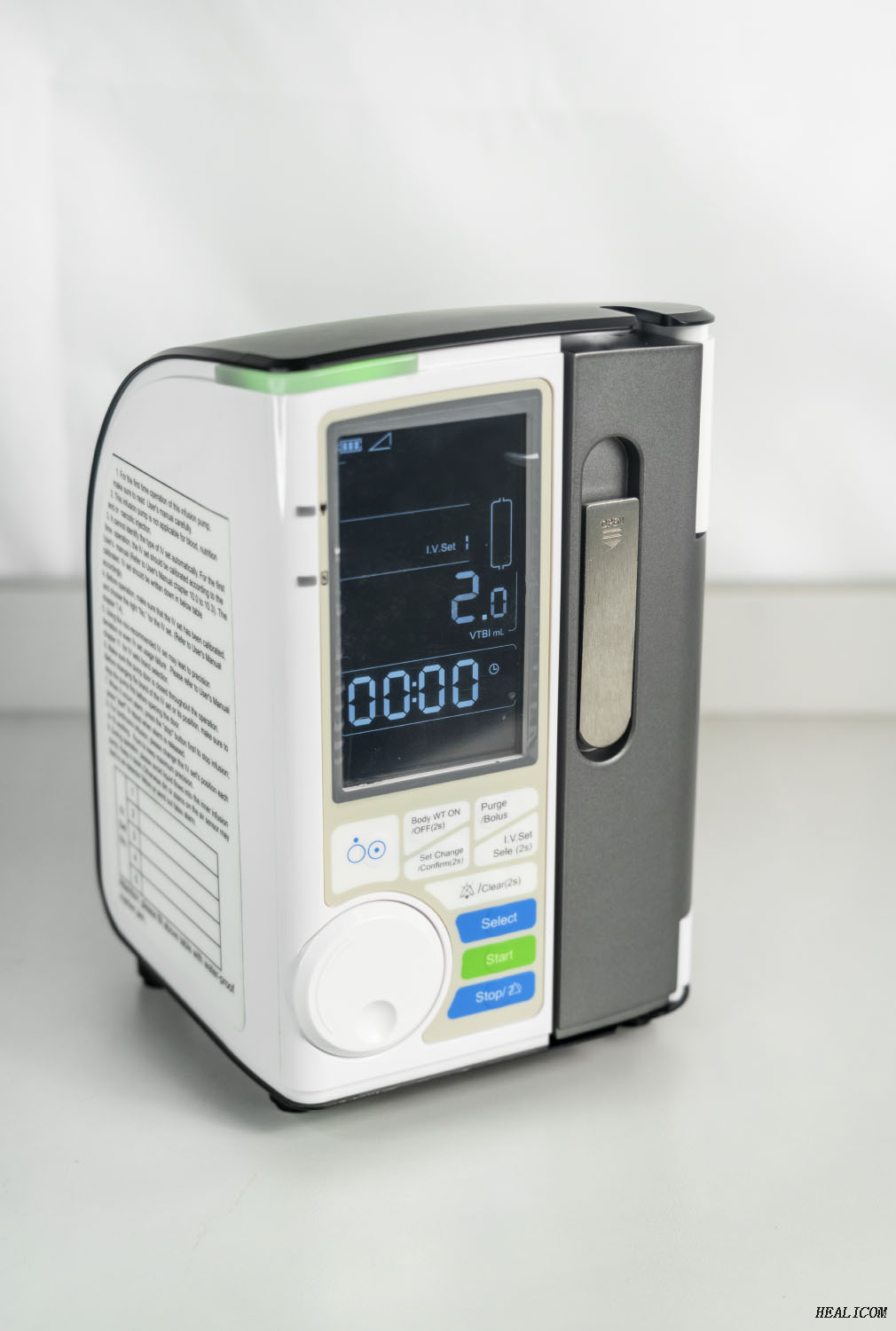

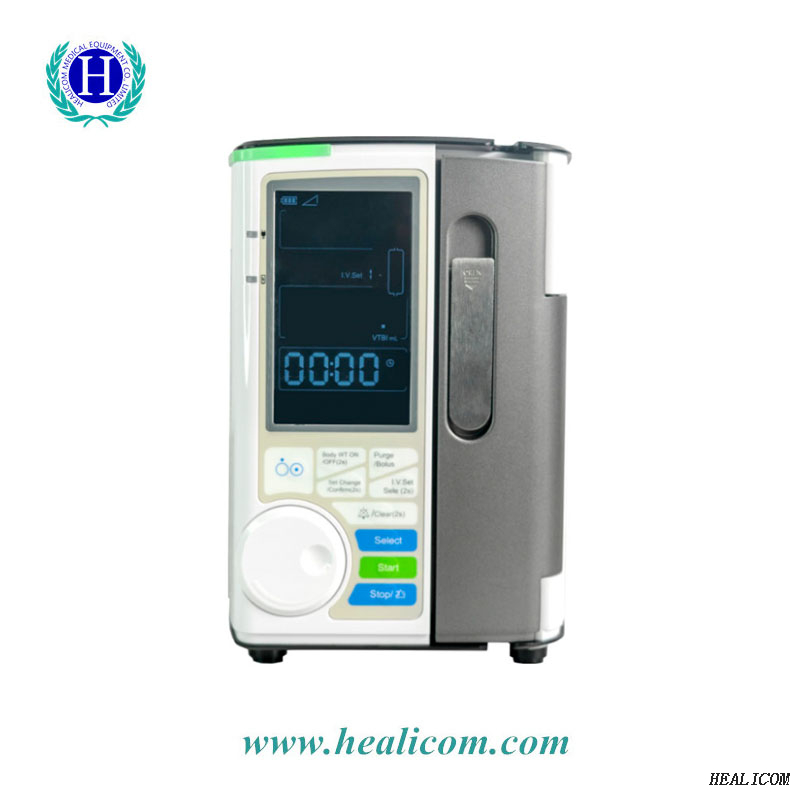

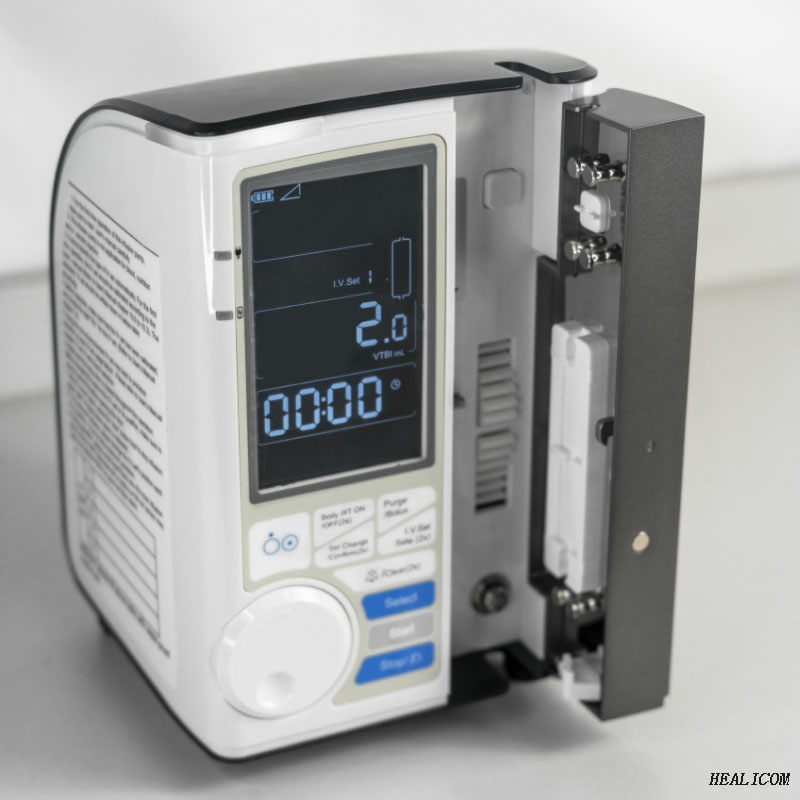

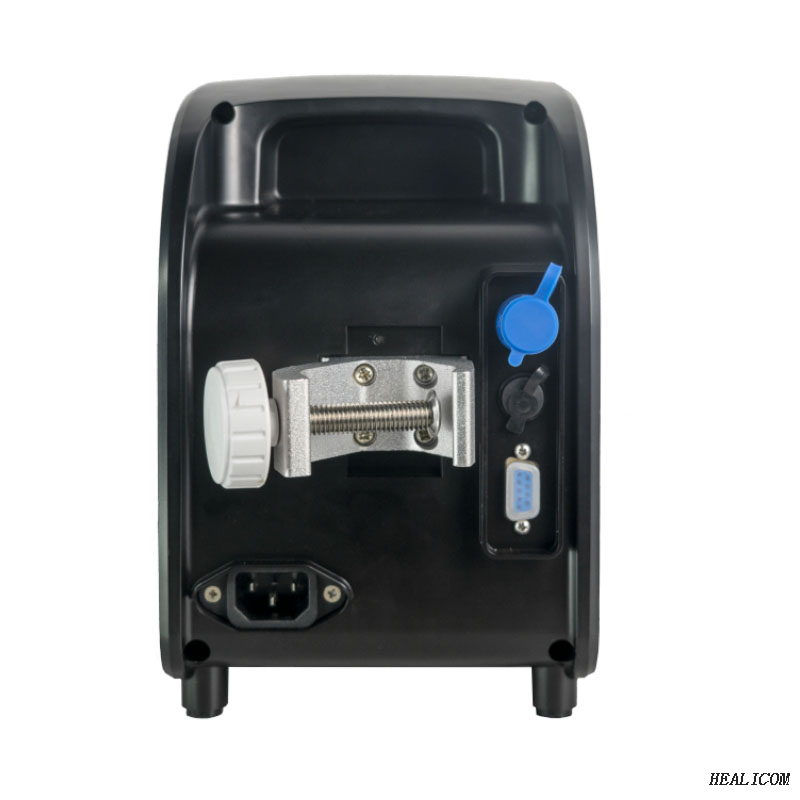

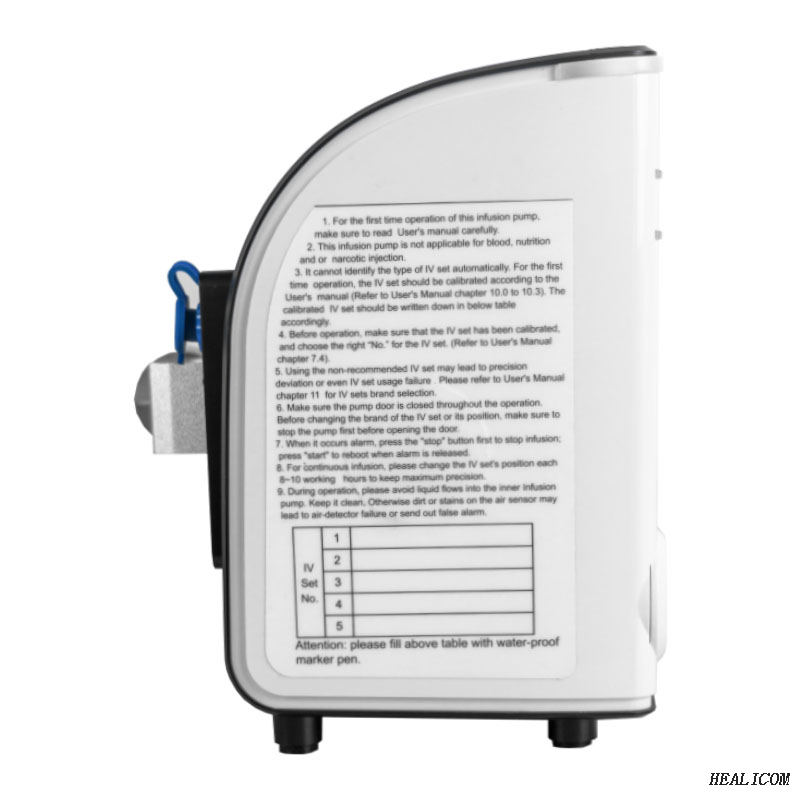

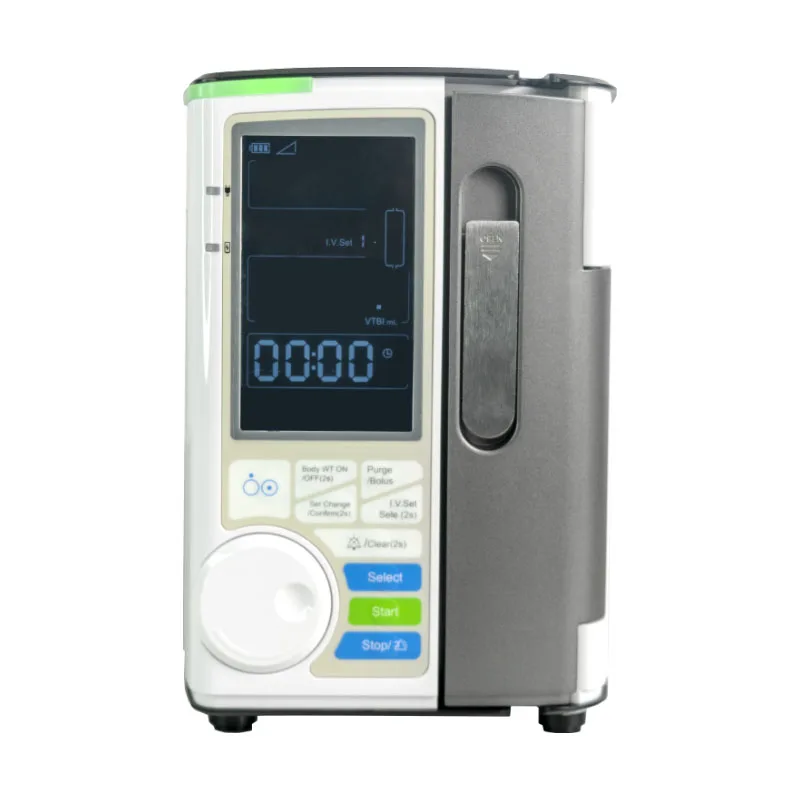

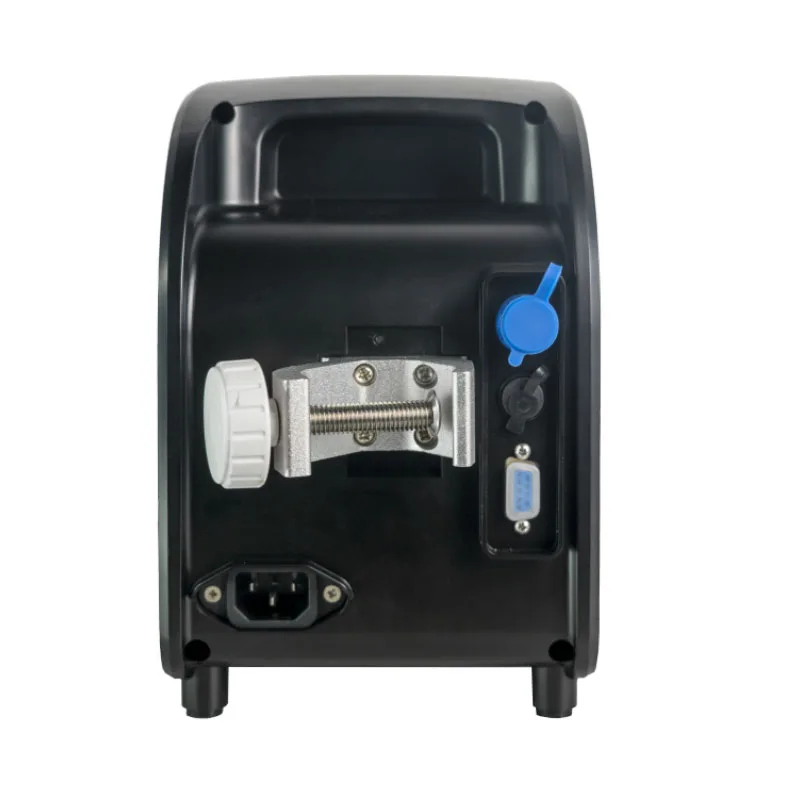

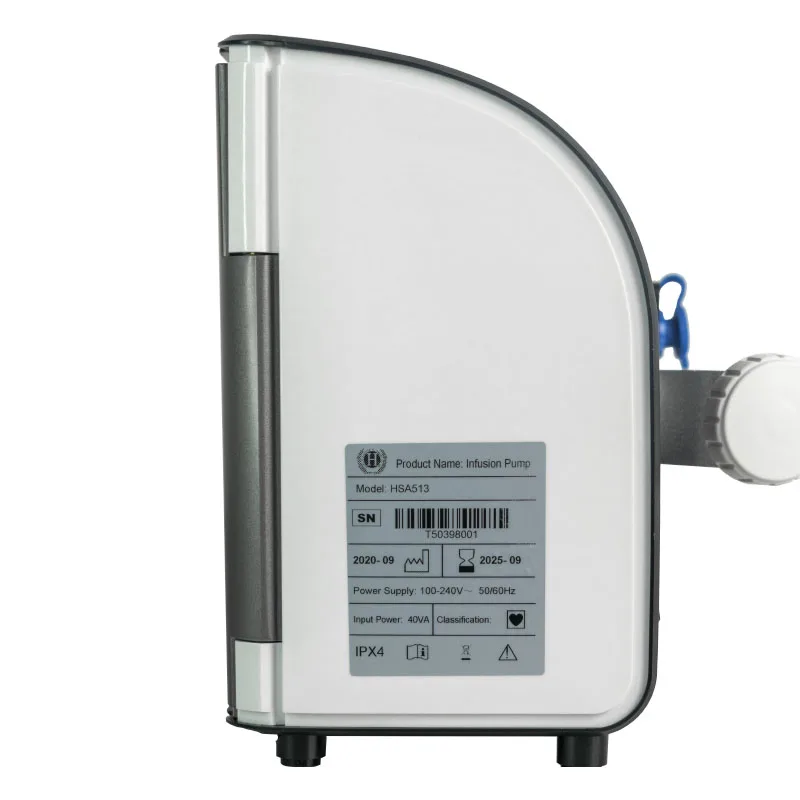

Factory Price HSA513 Medical Hospital Equipment 4.2 Large LCD Screen Portable Electric Infusion Pump IV Infusion Pump

a) Infusion Rate range(mL/h)

1-1200;

1mL/h~99.9mL/h range adjustable in 0.1mL/h steps or 1mL/h steps;

100.0mL/h~1200mL/h adjustable in 1mL/h steps only;

b) Infusion precision

±5%

(correctly calibrated and operated in a stable environment according to the requirement of 10)

c) Pre-set of infusion volume(mL)

0~9999, 1mL steps

d) Infusion volume error

±5%;

(correctly calibrated and operated in a stable environment according to the requirement of 10)

e) Bolus rate(mL/h)and error

200~1200 continuously adjustable;±20%;

f) Occlusion alarm level(pressure)

50kPa±25kPa

g) Max. pressure from the infusion set

More than 120kPa

h)Triggering time of occlusion alarm and bolus dose

Minimum flow rate:When the occlusion alarm pressure is 50kPa±25kPa, Less than 13 minutes.

Intermediate flow rate: When the occlusion alarm pressure is 50kPa±25kPa, Less than 14 seconds.

Occlusion dose does not beyond 0.3mL

(use Jerry infusion set, chokepoint is made at the tail end of the infusion set.)

i) Keep vein open(KVO)rate

KVO rate of 3mL/h with flow rate higher than 10mL/h,1mL/h with flow rate lower or equals to 10mL/h and higher than 1 mL/h,0.1 mL/h with flow rate lower than 1 mL/h, accuracy error+ 20%

j)Recoverable alarm

1 min 50 s ~ 2 min

k) Pause overtime alarm time

1 min 50 s ~ 2 min

l)Classification

Type CF, Class II continuous volumetric infusion pump with internal battery; IPX4 (sealed drip-proof device)

m) environmental temperature for rechargeable battery

environmental temperature: -20℃~+60℃

n) service life

5years
