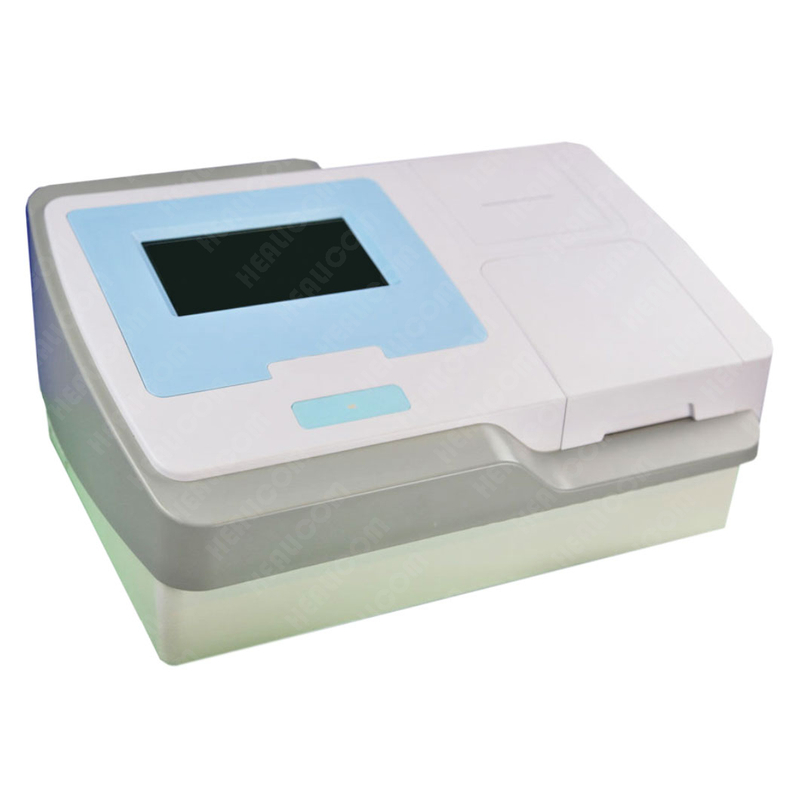

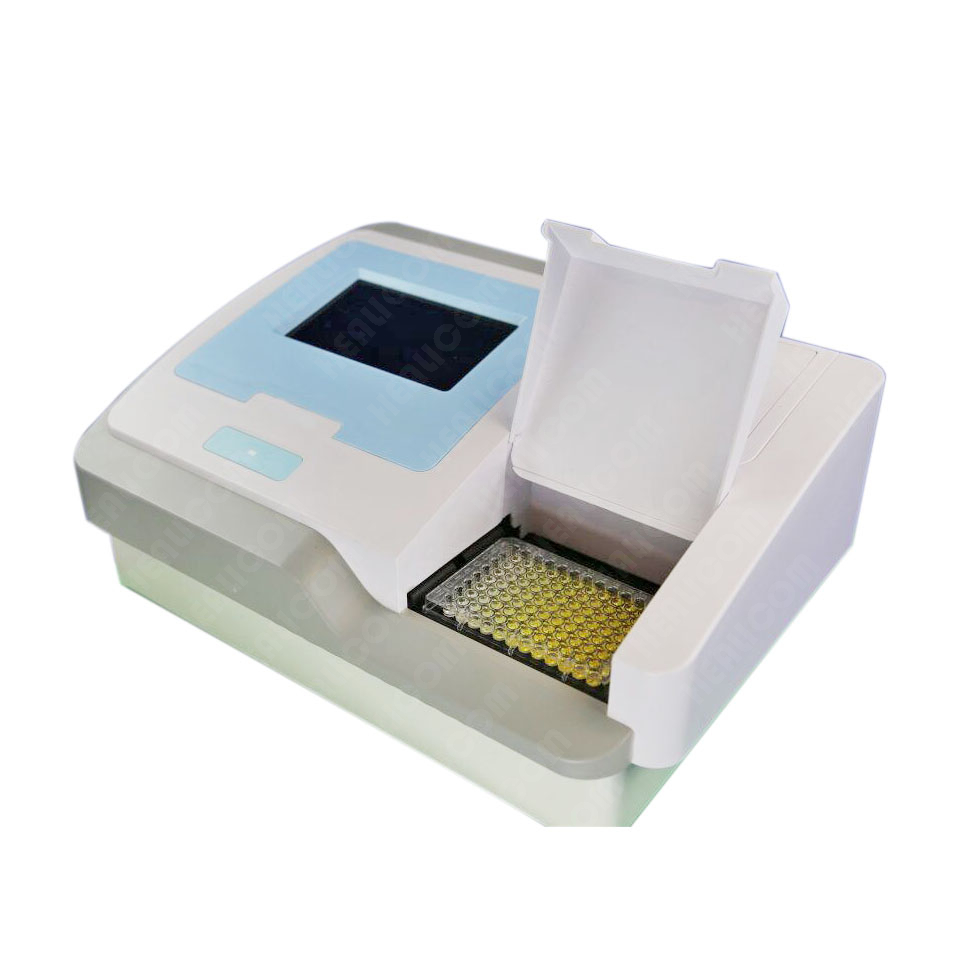

ER-500
Healicom
Product Description
Technical Specifications | |
Model | ER-500 |
Measuring System | 8 channels |
Analysis Mode | Cut-off, single and multi-standard, O.D., bichromatic, dynamic reading, etc |
Linear Range | 0.001-3.500 Abs |
Photometric Accuracy | ±1% or ±0.001 Abs |
Repeatability | <±1.0% |
Stability | <0.005 Abs |
Linearity | <±1.0% |
Sensitivity | ≤±0.010A |
Channels Discrepancy | ≤±0.020A |
Optical Filters | 405/450/492/630nm, 510nm、546nm、578nm、700nm are on request |
Reading | Automatic focusing function makes the results more precise |
Tray Shaking | Yes |
Storage | 100 programs |
Display | Touch screen |
Interface | RS-232 serial port |
Printer | Internal printer, external printer are available |
Power Supply | AC 220V 50Hz or 110V 60 Hz |
Dimensions | 46cm*33cm*18cm |
Weight | 7.5kg |
