HSP10
Product Description

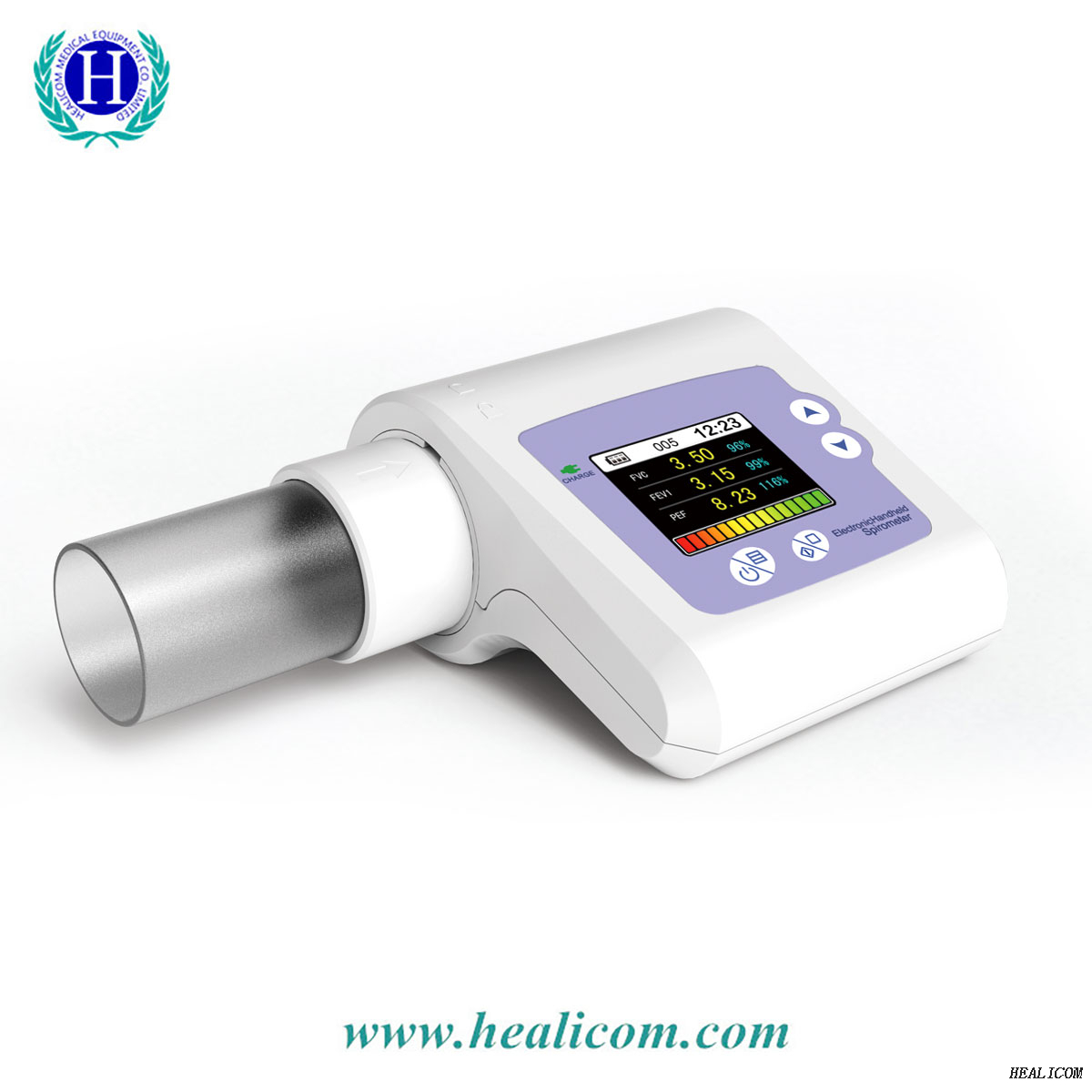

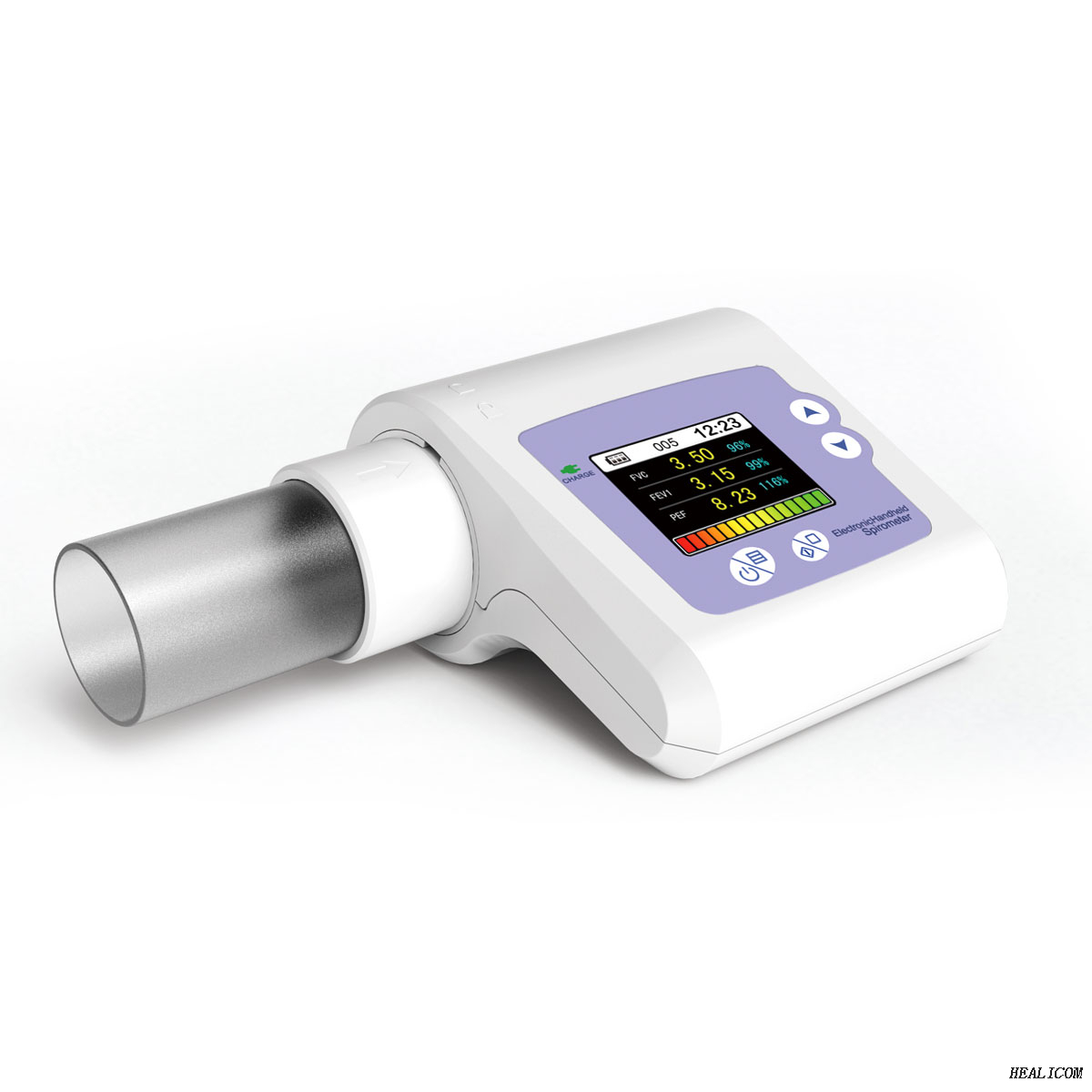

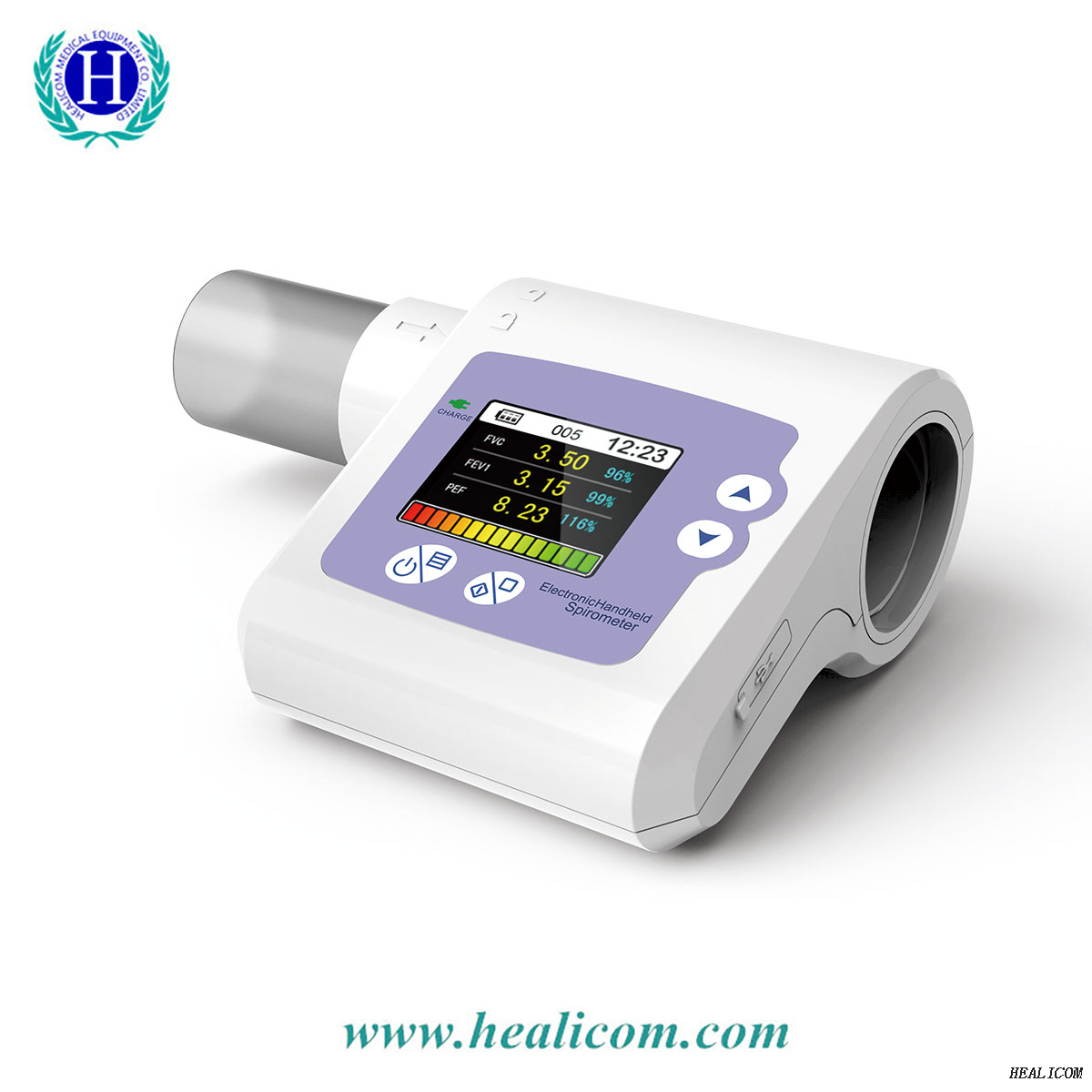

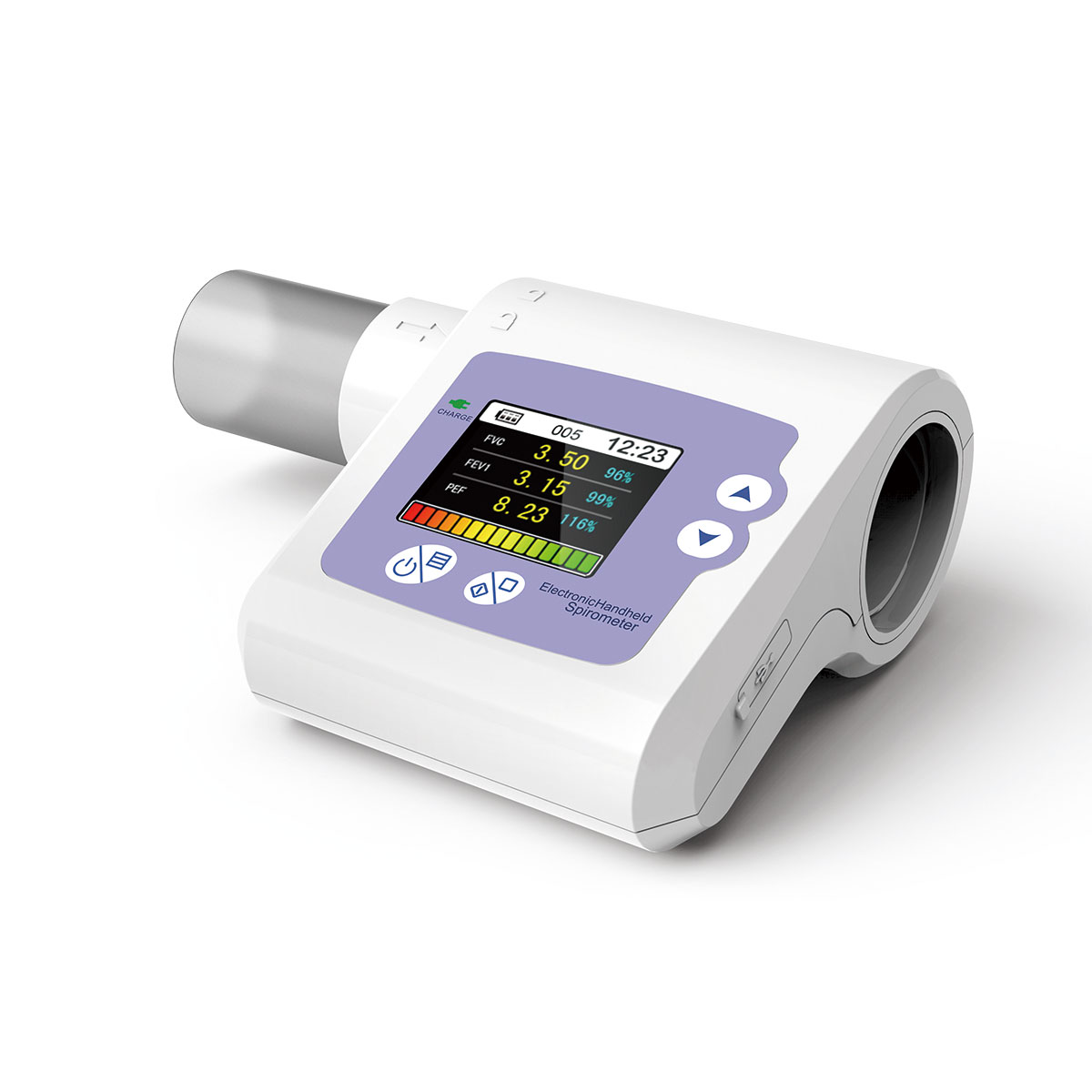

SPIROMETER is a hand-held equipment for checking lung conditions, adopts the infrared mode for measuring relative items, it is applicablefor hospital, clinic, family for routine test.
Feature:
*Forced Vital Capacity (FVC), Forced Expired Volume in one second(FEV1), the ratio of FEV1 and FVC(FEV1%),Peak expirato-ry flow(PEF),25% flow of the FVC (FEF25),75% flow of the FVC(FEF75) and average flow between 25% and 75% of the FVC(FEF2575) can be measured.Besides, the testee condition can beshown by the ratio of the measured value and the predictedvalue.
*Flow rate-volume chart, volume-time chart display.
*Data memory,delete, upload and review.
*Trend chart display.
*Scaling(Calibration).
*lnformation prompts when volume or flow goes beyond thelimits.
*Automatic power off when there is no operation in one minute.
*Rechargeable lithium battery and with charging tips.
*Battery power display.
Performance
*Display mode: 1.8"" color LCD
*Display resolution: 160*128
*Volume range: 0~10L
*Volume accuracy: ±3% or 0.05L (whichever is greater)
*Flow range: OL/s ~16L/s
*Flow accuracy: ±5% or ±0.2L/s(whichever is greater)
*Working current: 60 mA
*Power supply: DC3.7V rechargeable lithium battery
*Safety classification: internally powered equipment, type BF ap-plied part
Product Paramenters
Accessories
An User Manual |
An USB data line |
A mouthpiece(disposable accessory) |
A power adapter |
A PC software |
Anose clip(optional) |
Physical characteristic
Dimension | 102mm(L)× 98mm(W)× 50mm(H) |
Weight | 150g |
