HSP80B
Product Description

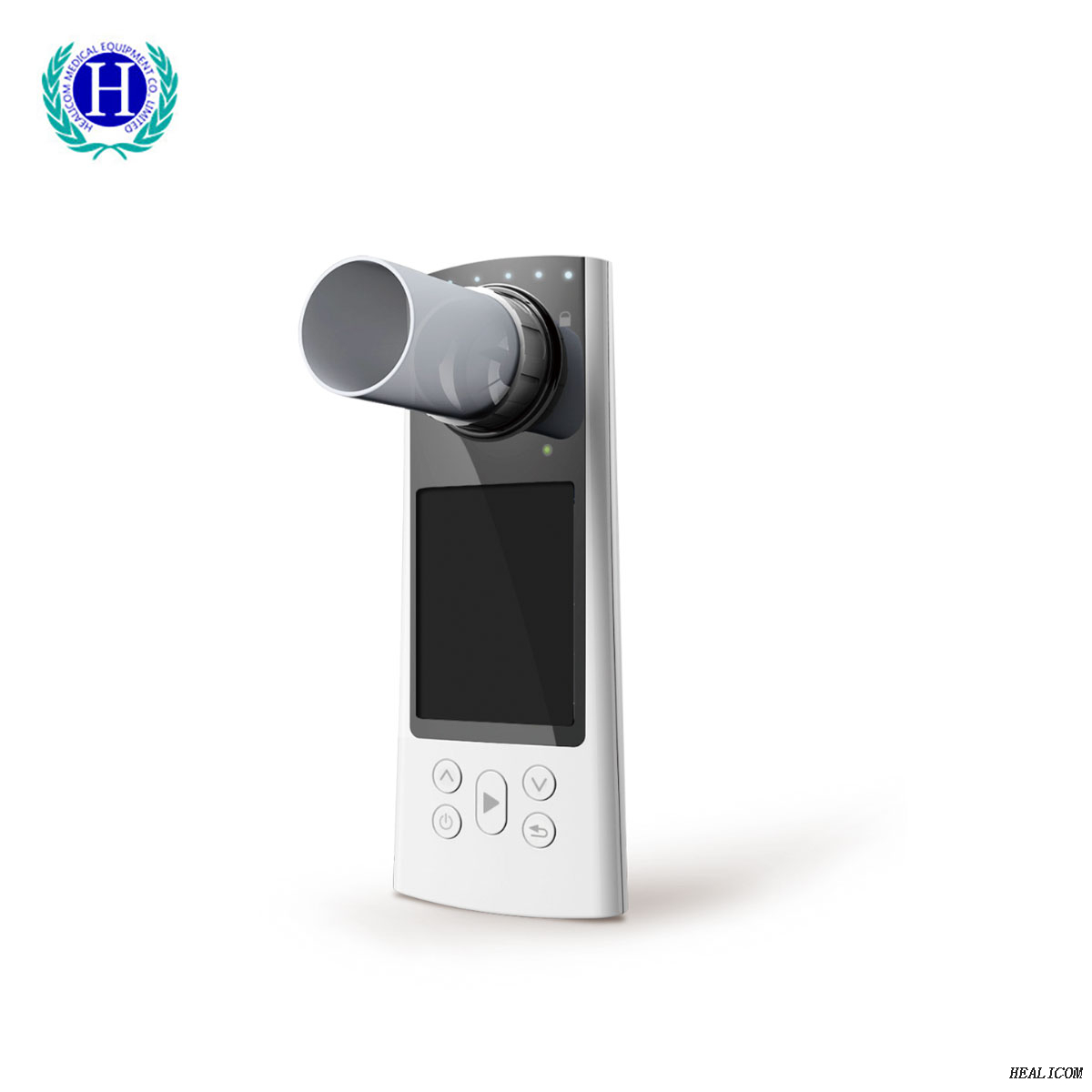

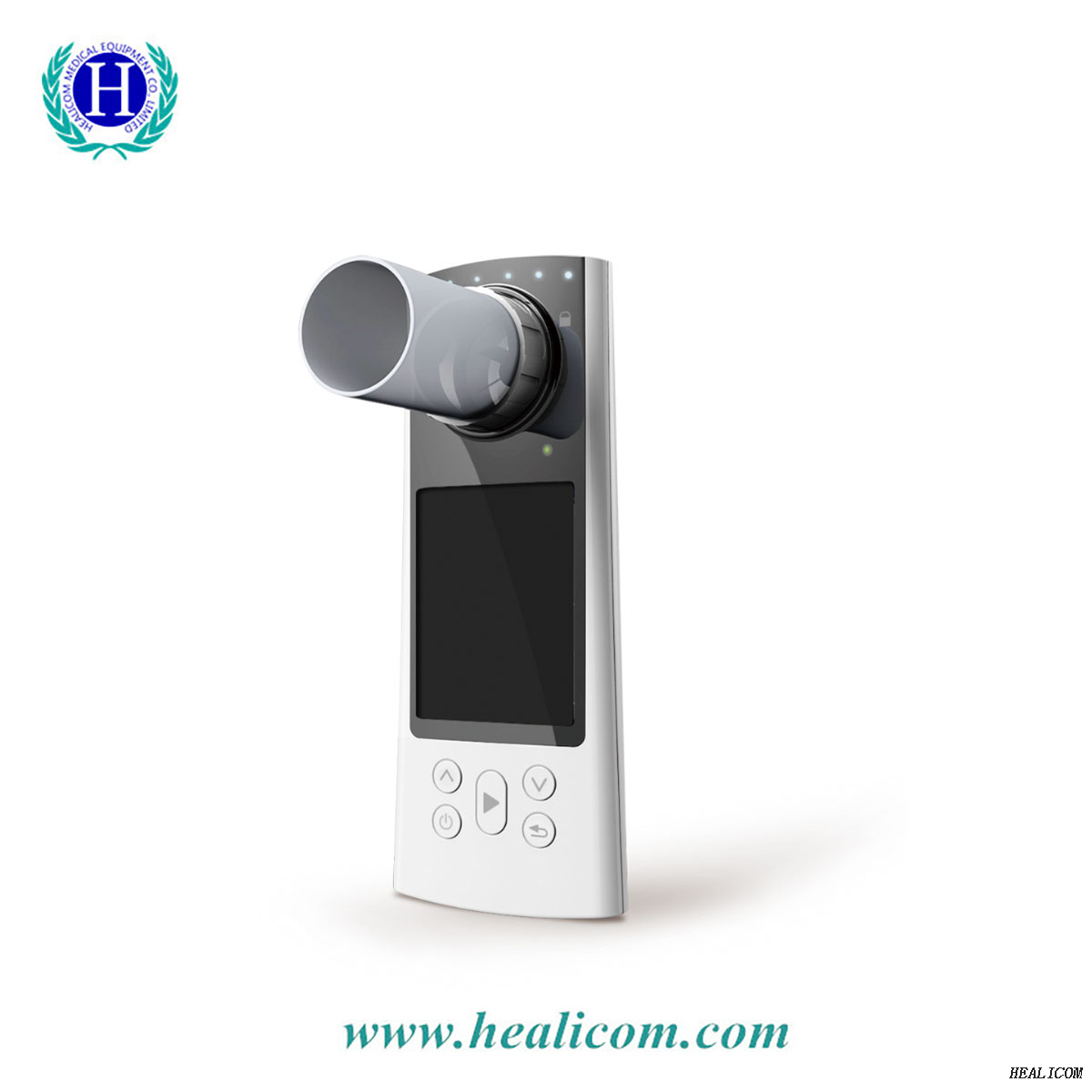

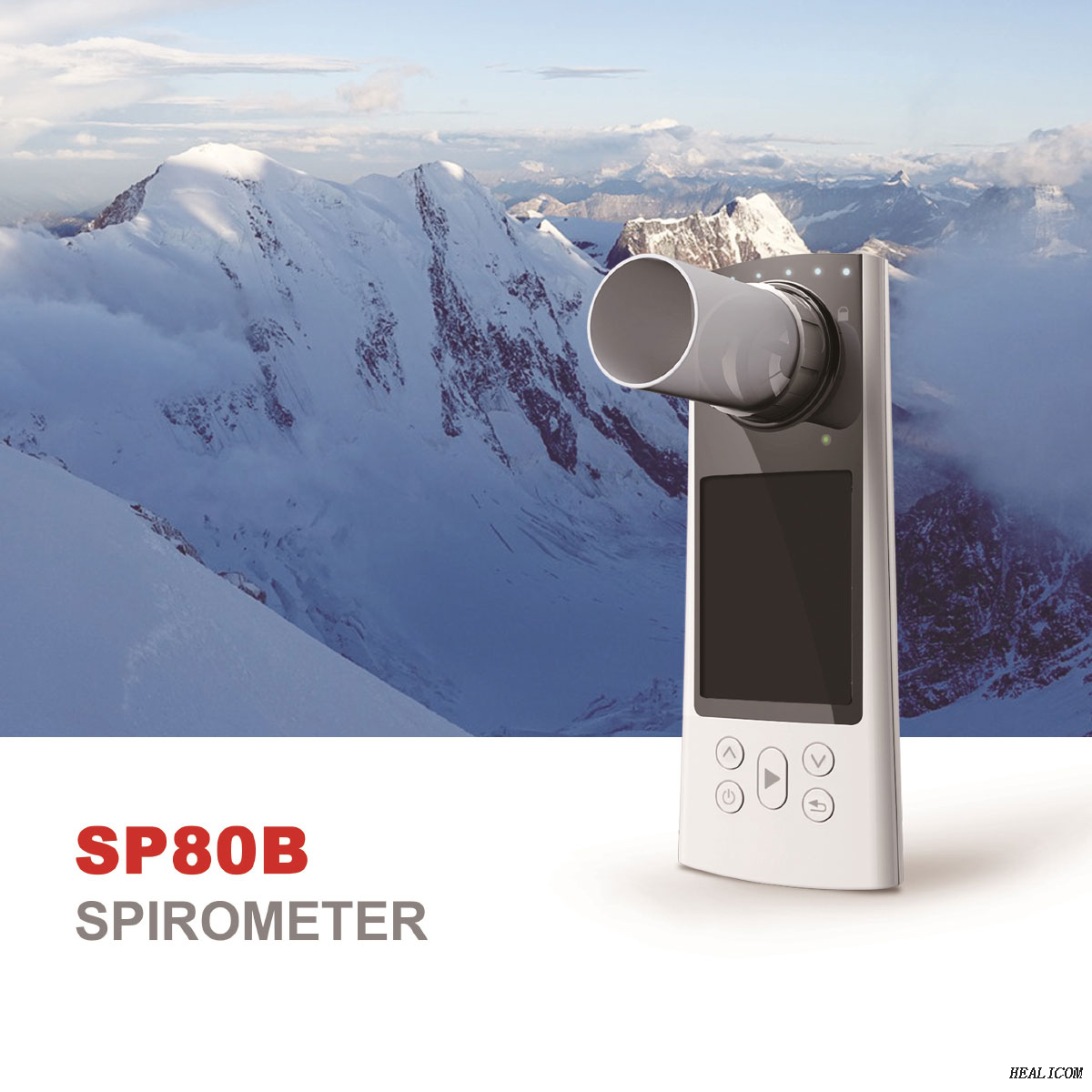

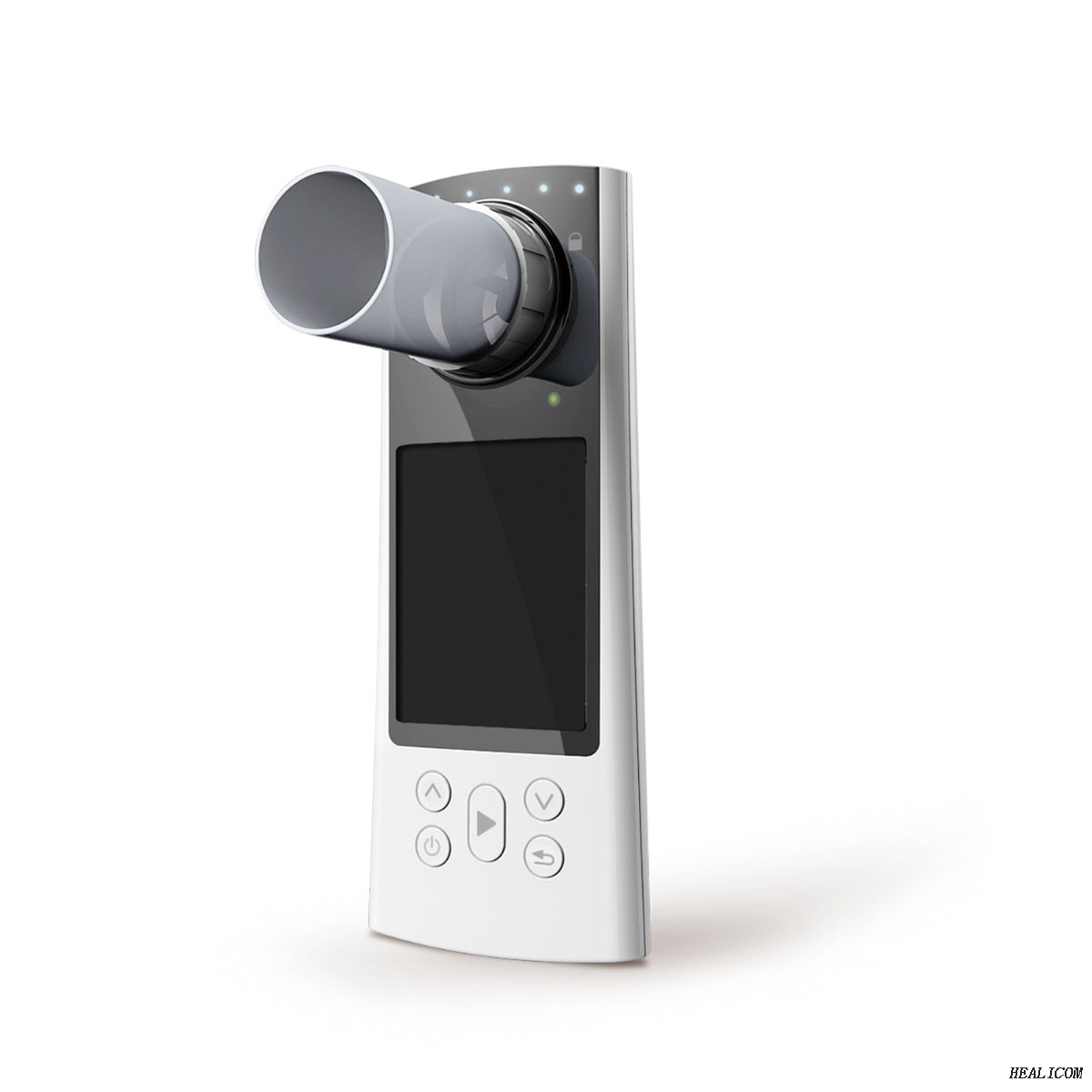

The SPIROMETER is a hand-held equipment for checking lung conditions, adopts the infrared signal acquisition mode for measuring items related to FVC, and it is applicable for hospital, clinic, family for routine test.
Functions
*Forced Vital Capacity (FvC), forced expiratory volume in onesecond (FEV1) to forced vital capacity (FvC) ratio (FEV1/FVC),peak expiratory flow(PEF), forced expiratory flow at 25 % ofFVC(FEF25), forced expiratory flow at 50 % of FVC (FEF50),forced expiratory flow at 75 % of FVC (FEF75) and forced expi-ratory flow from 25 %~75 % of FVC (FEF2575) can be mea-sured;
*The personnel information (including height, age, sex, etc.)can be set.
*Flow-volume chart, volume-time chart display.
*The data can be stored, deleted, uploaded and reviewed.
*Trend chart display.
*Health state indication.
*Calibration function.
*Over - limit prompt function for volume and flow.
*Indicate expiration within 6 seconds by indicators.
*Start measuring by one-button.
*The data can be transmitted by Bluetooth or USB cable.
*Real-time clock can be set and displayed.
*Battery power indication.
*Automatic shutdown when there is no operation within twominutes.
Product Paramenters
Performance | |
Display mode | 2.8"LCD |
Volume range | 0 ~10L |
Volume accuracy | ± 3 % or ± 0.05 L (whichever is greater) |
Flow range | 0 L/s ~16L/s |
Flow accuracy | ± 5% or ±0.2 L/s (whichever is greater) |
Working current | 200 mA |
Power supply | rechargeable lithium battery |
Safety class | internally powered equipment,type BF ap-plied part |
Physical characteristic | |
Dimension | 160 mm (L)× 65 mm (W)× 45 mm(H) |
Weight | 190g |

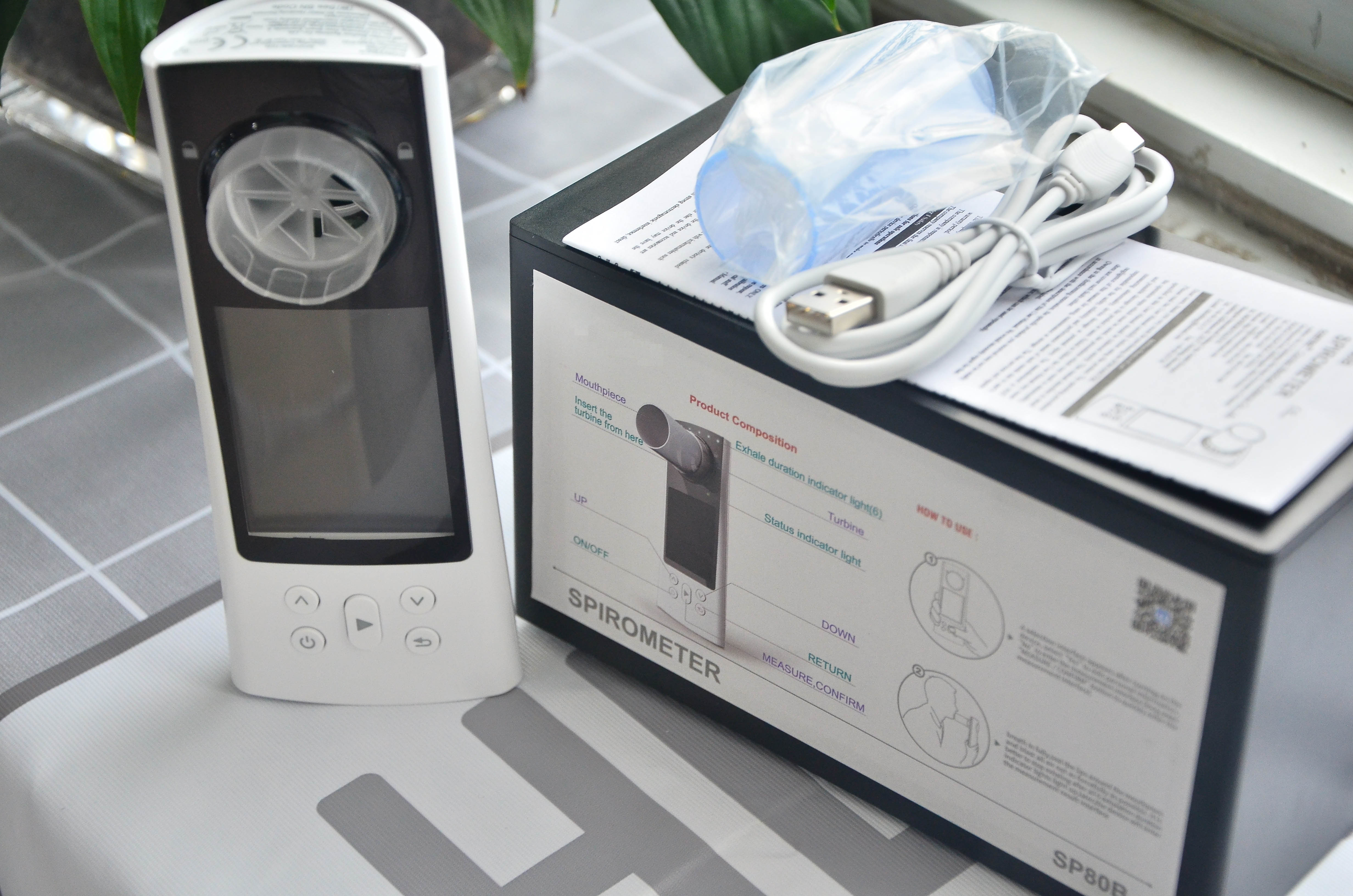

Accessories | |
One User Manual | |
One USB cable | |
One mouthpiece (disposable accessory) | |
One nose clip (optional) | |
one power adapter (optional) | |
one PC software | |
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
