CE ISO Approved Medical examination mirror set trolley with HFC-1650 Fiber Colonoscope and HFG-300A fiber gastroscope

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HFC-1650

  • Healicom

Product Description

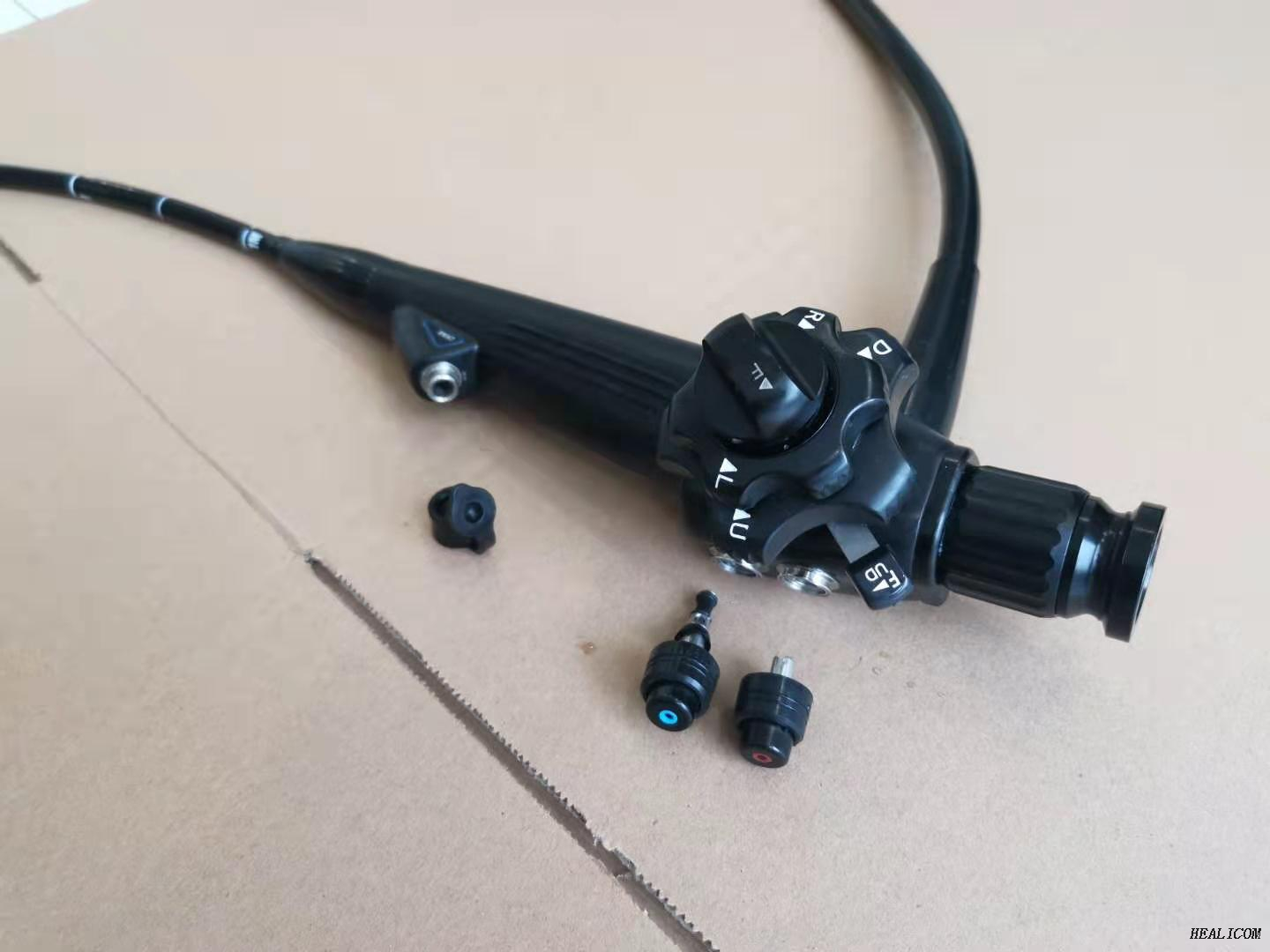

HFC-1650 Fiber Colonoscope and HFG-300A fiber gastroscope







Characters:



Part 1: Fiber Colonoscope & Fiber gastroscope

                                            HFC -1650


                                            HFG -300A

Bending operation : Traction chain structure, whole sealed waterproof

Image display : Two image display optional

Quality certification : CE

Warranty : One year(free), permanent repairs (not free)

Package size :64*18*48cm (G.W.:5.20kgs)



Part 2: Cold light source LG-400


1. Voltage: 220V-240V
2. Frequency: 50-60HZ
3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp
4. Illumination: 70000LX (using special measuring tools)
5. Color Temperature: 3000~7000K
6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
7.Electric switch : AB light two sets light source
Main Function:
1.Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector
irradiation.
2. Built with micro axial fan cooling temperature.
3. Adopt dimming electronic control unit organization.
4. Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life,
convenience to the operation
Package box:54*47*27.3cm (10.54kgs)



Part 3: EMV-3000 camera system


1. Voltage: 220-240V
2. Frequency: 50-60HZ
3. System: PAL
4.Image regulation : Automatic regulate light, keep the image EMVat its best
Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color /
contrast adjustable 0-100 level , Svideo / AV output.
Reverse function :Black and white reversed.
White balance : Auto white balance , manual white balance.
Manual white balance :Manual white balance can be calibrated color, color adjustable (Red,
Blue).
Electronic shutter : 10 level electronic shutter adjustment.
Metering : Average metering, peak metering, metering area delineated.
Contour enhancement : 10-level contour enhancement.
Lens optional : Manual lens, automatic lens, video lens three optional.
Sharpness adjustment : 0-30 sharp changes of the image in fine processing.
Digital WDR :Digital broadband function.
Backlight compensation : Improve the average brightness of the whole screen
Cama line :Cama line clarity 6 level adjustment.

R/L Mirroring: The left and right mirror position can be changing.
Package size :50.5*46*20cm (G.W.:8.5kgs)



Part 4: LCD Display

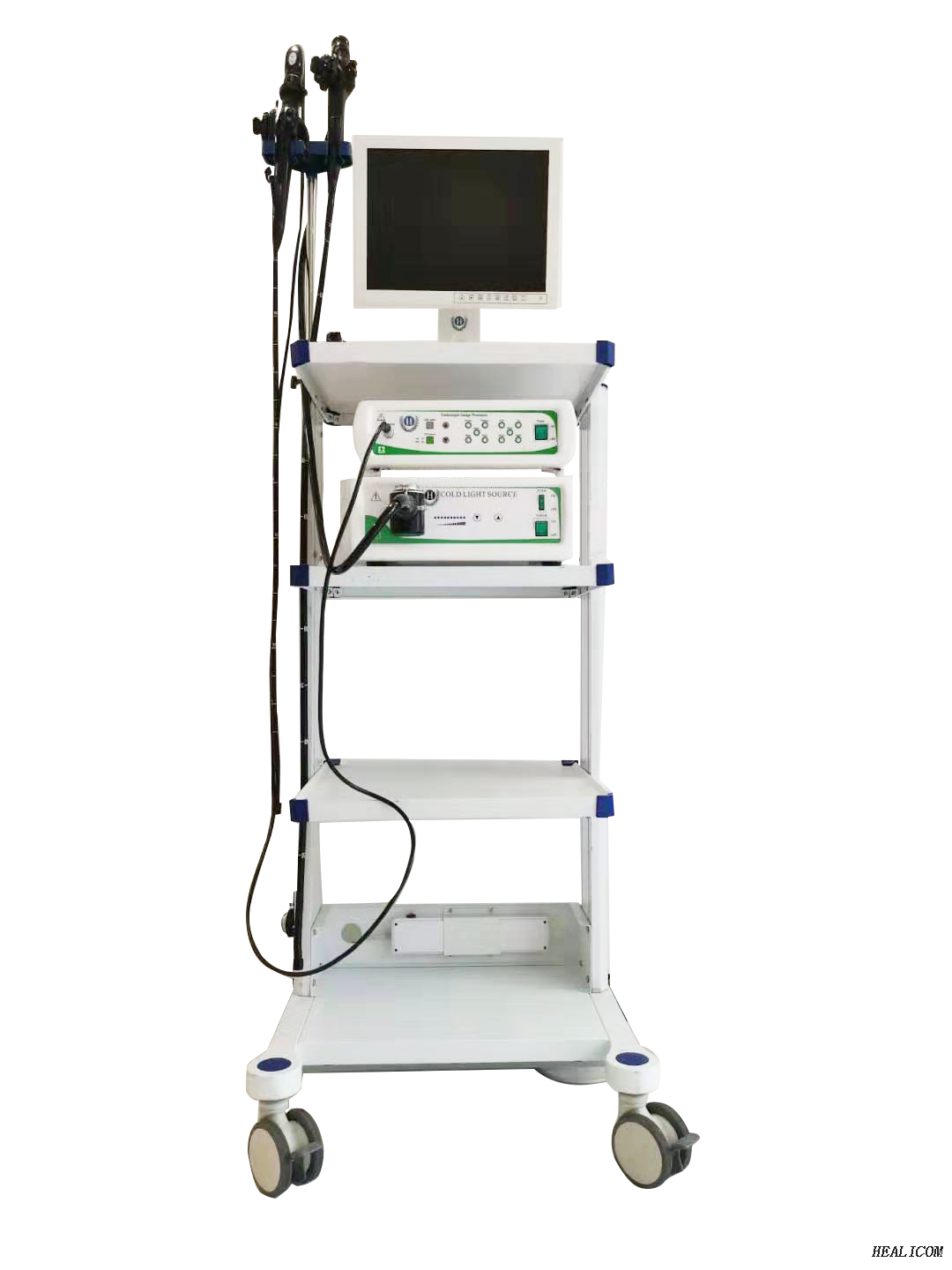

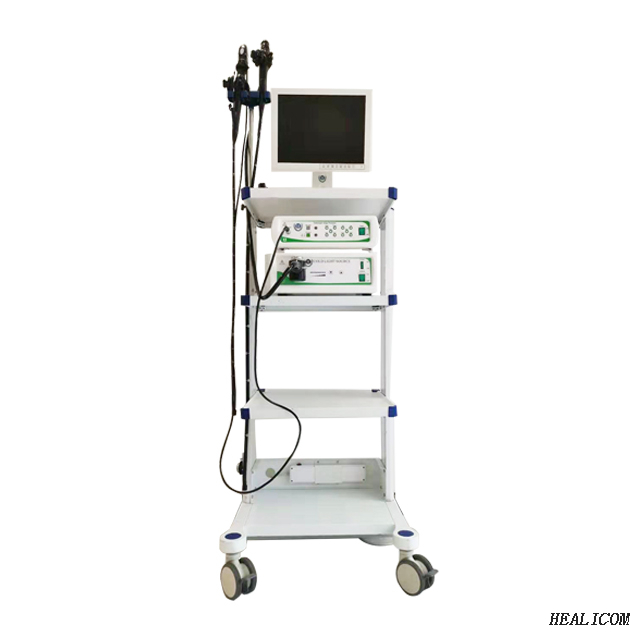

Part 5:Equipment vehicles



 Size : 500 * 700 *1350mm

Package size:118.5*63.5*22cm (G.W.:44.5kgs)
