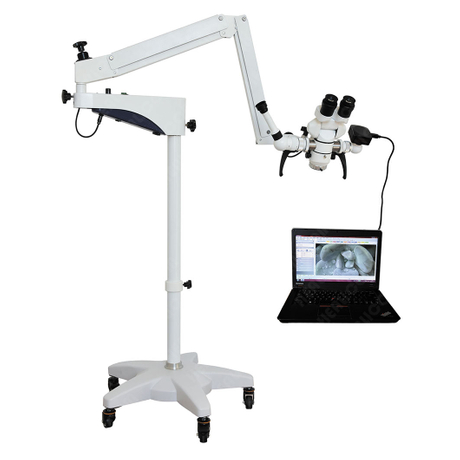

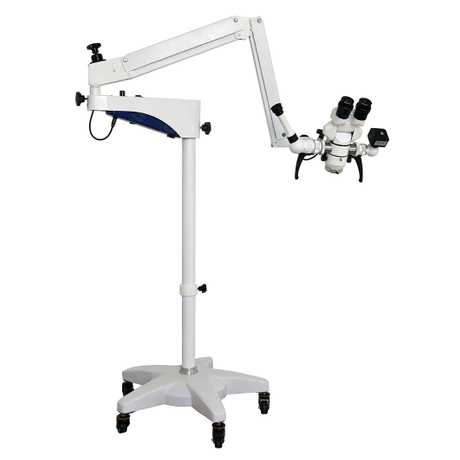

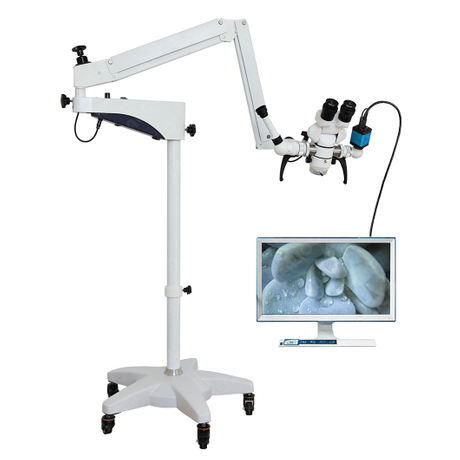

YSX180 Medical Ophthalmology Inclinable Binocular Operating Microscope
YSX180 Operation Microscope:
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XFCAM1080HPD, WUCAM0720PA, FHD2100, HD200, HDV130, WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket, Monitor mount (GM112B, DS312B)
