HBW-3P Full Digital Portable B/W Ultrasound Scanner

This browser does not support the video element.
Share to:

HBW-3P Full Digital Portable B/W Ultrasound Scanner

  • HBW-3P
  • Healicom

Product Description

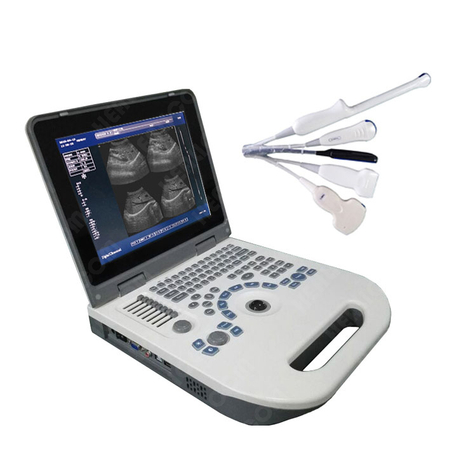

Medical 12.1 Inch Displayer Portable B/W Ultrasound Scanner Machine






This advanced system features mass memory, cine loop, and permanent storage, with optional radium-caved or silicon backlit buttons. It includes an intelligent fluorescence trackball, 8-segment TGC control, and overall gain control. Equipped with 2 USB ports, upgradable printer function, and 2 probe connectors with automatic identification, it supports 2 SVGA and 21 PAL video outputs for connecting to recorders and workstations. Additionally, it automatically generates report pages.

Technical Specifications
Display Modes
3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M
6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B
Image Mutiplying Factor
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0(6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom
magnify 2 times of real time image
Dynamic Range
0~120dB ajustable
Focus Position
1,2,3 and 4-segments dynamic electron focusing
Image Processing
γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Frequency Conversion
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring Function
Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function
hospital name, patient’s name, age and gender 64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide
3.5MHz convex array probe can display puncture guide line in B mode
Gain Control
8 segments TGC and overall gain can be adjusted respectively
Image Polarity
left and right flip, black and white flip, up and down flip
Capacity Cine Loop
real time display 256 consecutive images which are memorized successively
Image Playback
series playback or check one by one
Permanent Storage
128 images
Output Interface
VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB Port
Offers storing images in USB flash disk






Standard Configuration:

1. One host machine
2. One convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 3000MAH Li battery
5. USB port
