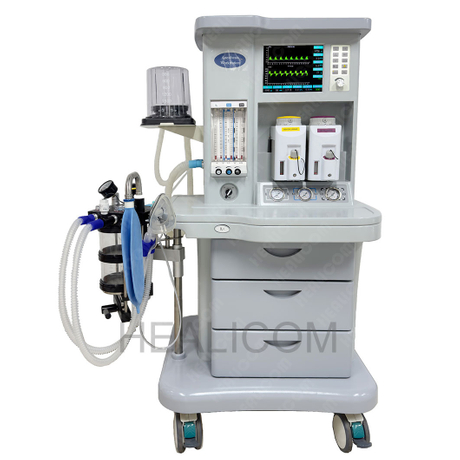

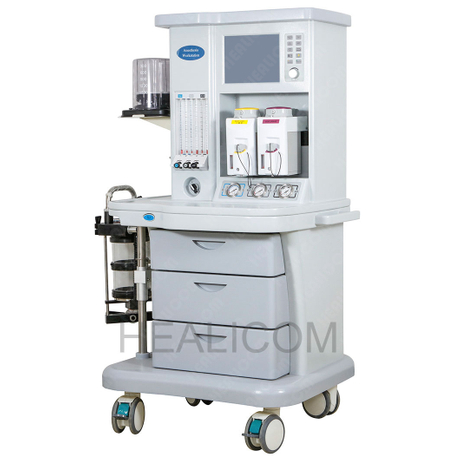

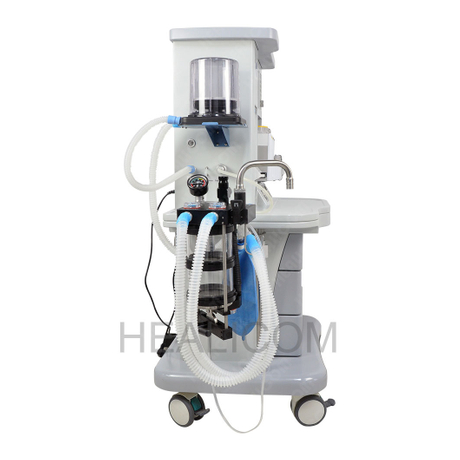

HA-300 Medical Aneasthesia Equipment Cart Type Anesthesia Ventilator

Surgical Equipment HA-300 Trolley Anesthesia Machine

Features

10.4" Colorful TFT High-Luminance large Display,built-in Ventilator

O2/N2O/Air Six Tube Flow Meter

Two high precise vaporizer as to Customer choose

(Isoflurane//Halothane/Sevfluran e ;According your chose )

Tidal Volume: 30 -- 1500ml

I/E Ratio: 3: 1~1:4 Adjustable

24-Hour Whole Parameter Trending Curve.

Optional: Patient Monitor

Main Frame		Vaporizer
Display	10.4 Inch Color TFT High-Luminance Screen	Concentration Range	0.2~5%, 0.2~8%
Overall Dimension	110*65*144CM(L*W*H)	Flow Range	0.2 to 5L/Min
Working Mode	Closed,Semi -Closed,Semi -Open System	Automatic Compensation	Flow,Temperature and Pressure
Application	Adult,Children	Lock	Self-Lock and Interlock
Replay	24-Hours Whole Parameter Trending Curve	Volume	250mL
Vaporizer Quantity	Isoflurane,Sevoflurane,Halothane (Optional Two Of Three)	Mount	Pour-fill Selectatec Mount
Ventilation Mode		Alarm And Protection
IPPV,SIGH,SIMV/f/2,SIPPV  (Optional: PEEP) ,MANUAL		The AC power failure alarm	Power failure or no connection
		High Airway pressure alarm	20 cmH2O ~ 100 cmH2O
Ventilator Parameter Range		Low Airway pressure alarm	0 cmH2O ~ 20 cmH2O
Bellow	Adult and Child	High Minute Volume alarm	Adult (5 L/min ~ 20 L/min)
Driven	Pneumatically Driven and Electrically Controlled	Low Minute Volume alarm	0 ~ 10 L/min
Upper Airway Pressure	2~6KPa	Continuous Pressure alarm	(PEEP+1.5 kPa) over 16s
Lower Airway Pressure	0.6~2KPa	Suffocation warning	5 s ~ 60 s no spontaneous ventilation
Six Flow meters	O2 (0.1~ 10 L/min)	The maximum limited pressure	<12.5 kPa
	N2O (0.1 ~ 10 L/min)	Oxygen deficit	Show on screen
	AIR (0.1 ~ 10 L/min)	Alarm of low tidal volume	20~990mL
Rapid oxygen supply	35 L/min ~ 75 L/min
Tidal volume (Vt)	30 ~ 1500 mL
Respiratory Rate	4 ~99bpm
I:E	2: 1~1:8Adjustable
PEEP(OPTIONAL)	0 cmH2O~30 cmH2O
Pressure triggering sensitivity (PTr)	-20 cmH2O ~ 0 cmH2O  (Based on PEEP)
Flow trigger sensitivity  (FTr)	0.5 L/min ~ 30 L/min
Pressure control (PC)	5 cmH2O ~ 60 cmH2O	Working Condition
SIGH	0 (off), 1/100 ~ 5/100	Three Gas Supplies	O2/N2O:0.3MPa -0.5MPa;Air
Apnea Ventilation	OFF, 5 s ~ 60 s	Pressure	280 kPa ~ 600 kPa
Pressure Limit	20 cmH2O ~ 100 cmH2O	Voltage	100 ~ 240 V
		Power frequency	50/60 Hz
Monitoring Parameter
Respiratory Frequency(Freq)	4~99bpm	Packing Size
Tidal volume (Vt)	0mL ~ 1500 mL	Wooden Case Packing size One	84*94*162CM(L*W*H),  150KGS
MV	0 L/min ~ 100 L/min	Carton Packing size Two	58*53*44CM(L*W*H),  14KGS
Oxygen concentration	21 % ~ 100 %	G.W.	164 KGS
Oscillogram		CBM	1.5 m3
V-T(volume-time)		Optional	Patient monitor hander
Remark: Above configuraions include standard and option. Please contact with sales representative for more details.

Company Profile

---

FAQ

---

1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
