CE Marked 12 Inch TFT Dispaly Multi-Parameter Equipment Medical Patient Monitor
Brief introduction:
Patient monitor is a kind of instrument or system which is used to measure and control patients physiological parameters, which can be compared with known settings, if they are higher than know settings, the system will alarm.
Features:
• 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
• 12.1 inch high resolution color TFT LCD display
• Real time S-T segment analysis, pace-maker detection
• Indication of incorrect manipulation and malfunction analysis
• Patient info input management function
• Muti-lead ECG waveforms display in phase
• Large volume of tabular and praphic trends information storage
and easy to recall
• Capture dynamic waveforms
• Up to 2 hours working capacity of built-in rechargeable lithium battery
• Unique accessory management cabinet
• Networking capacity
• Optional:2-IBP,ETCO2 ,built-in recorder, trolley, wall shelf, touch screen
Parameters:
NIBP | Method:Oscillometry Modes:Manual/Auto/Comtinuous Auto measure time:Adjustable Measurement range:10-270mmHg |
| ECG
| Lead mode: 3-lead or 5-lead Lead selection: I;II;III,avR;avL;avF Heart rate range: Adult:15-300bpm;Pediatric /Neonatal:15-300bpm ECG waveform: 2 channals Accuracy: ±1 bpm or ±1%,which is greater S-T segment detection;measurement range: -2.0mv~+2.0mv Alarm:Yes,audible and visual alarm,alarm events review |
| SPO2 | Measurement range:0-100% Accuracy:70-100%,±2%,0-69%,upspecified Auto measure time:Adjustable |
| Pulse Rate | Range:20-254bpm Accuracy: ±3bpm |
| Respiration | Method:RA-LL impedance Range: Adult:0-120rpm;pediatric/neonatal:0-150rpm Apnca alarm:Yes |
| Temperature | Range:0-500 Accuracy: ± 0.10 Channal:Dual-channel |
| Main unit | ECG cable Spo2 probe TEM Probe NIBP Tube Adult cuff Power cable Battery User manual ECG Electrodes |
| Warranty period: | 1 year for whole machine, half a year for parts |
| MOQ | 1 unit |
| Delivery time | Within 7 working days upon receipt the payment |
| Terms of payment | T/T,L/C, western union,paypal |

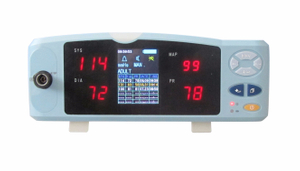

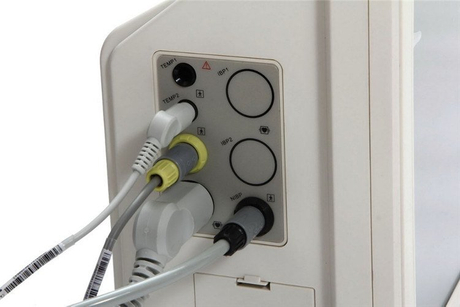

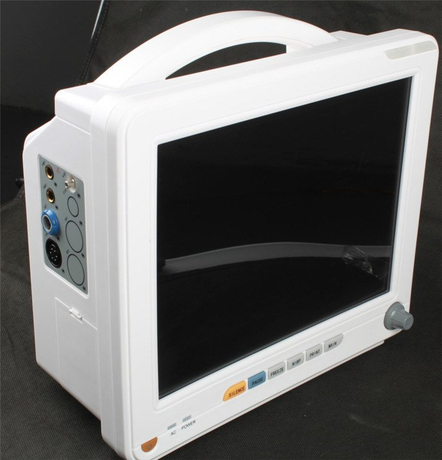

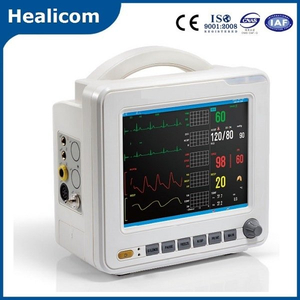

Product show:
